Proto  |  SKU: J5010  |  Barcode: 662679160678

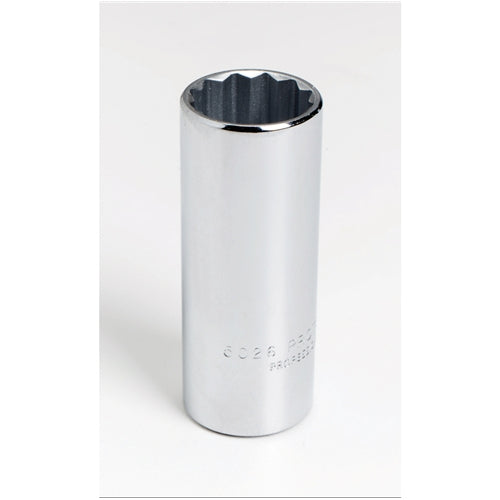

Proto J5010 3/8" Drive Deep Socket 5/16" - 12 Point

$9.67 $13.44

Description

Proto J5010 Includes

  • (1) 3/8" DRIVE DEEP SOCKET 5/16" - 12 POINT

Proto J5010 Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded or rusted fasteners.

Proto J5010 Specifications

SIZE 5/16"
NUT END OUTSIDE DIAMETER 15/32"
DRIVE END OUTSIDE DIAMETER 21/32"
NUT DEPTH 13/32"
BOLT CLEARANCE DEPTH 1-11/16"
OVERALL LENGTH 2-1/8"
WEIGHT 0.10 lbs
DRIVE SIZE 3/8"
POINT SIZE 12
FINISH Full Polish
LENGTH TYPE Deep
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS AS954E S3.8.1
