Proto | SKU:
J5014MH

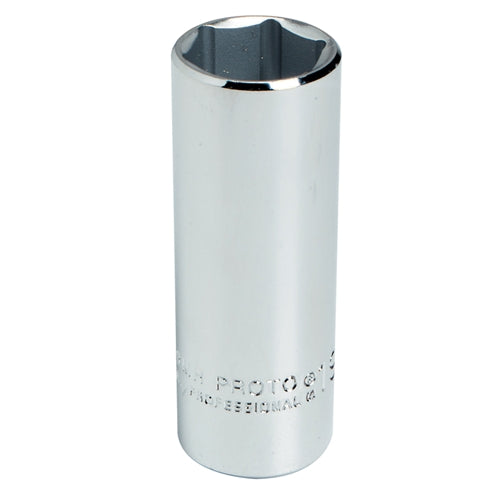

Proto J5014MH 3/8" Drive Deep Socket 14 mm - 6 Point
$9.43
$14.95
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) 3/8" DRIVE DEEP SOCKET 14 MM - 6 POINT
FEATURES:
• Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 14 mm
• NUT END OUTSIDE DIAMETER: 25/32"
• DRIVE END OUTSIDE DIAMETER: 25/32"
• NUT DEPTH: 19/32"
• BOLT CLEARANCE DEPTH: 1-1/2"
• OVERALL LENGTH: 2-1/8"
• WEIGHT: 0.16 lbs
• DRIVE SIZE: 3/8"
• POINT SIZE: 6
• FINISH: Full Polish
• LENGTH TYPE: Deep
• UNIT OF MEASURE: Metric
• SPECIFICATION ASME: ASME B107.110-2012
• SPECIFICATION AS: SAE AS4984A
• (1) 3/8" DRIVE DEEP SOCKET 14 MM - 6 POINT
FEATURES:
• Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 14 mm
• NUT END OUTSIDE DIAMETER: 25/32"
• DRIVE END OUTSIDE DIAMETER: 25/32"
• NUT DEPTH: 19/32"
• BOLT CLEARANCE DEPTH: 1-1/2"
• OVERALL LENGTH: 2-1/8"
• WEIGHT: 0.16 lbs
• DRIVE SIZE: 3/8"
• POINT SIZE: 6
• FINISH: Full Polish
• LENGTH TYPE: Deep
• UNIT OF MEASURE: Metric
• SPECIFICATION ASME: ASME B107.110-2012
• SPECIFICATION AS: SAE AS4984A
