Proto | SKU:
J5026

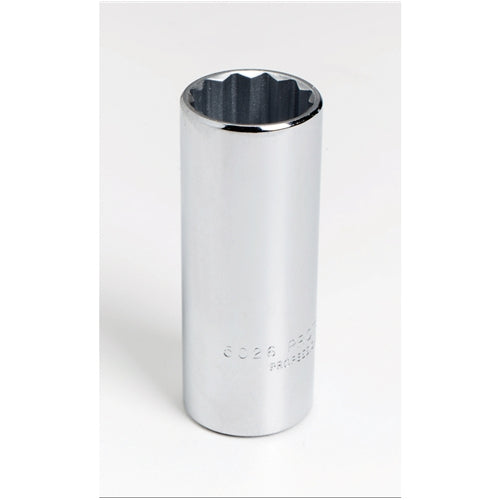

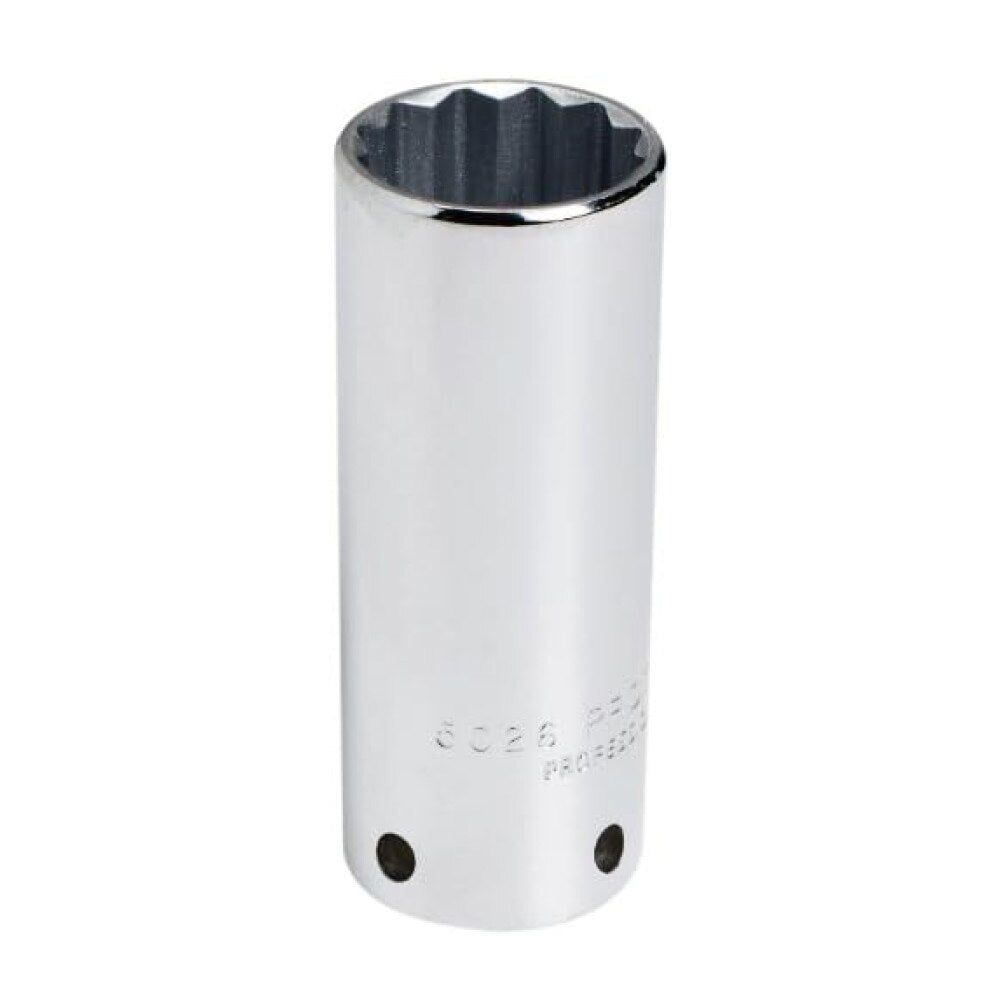

Proto J5026 3/8" Drive Deep Socket 13/16" - 12 Point
$12.66
$19.51
Unit price
/
Unavailable
Description
Description
Proto J5026 Includes
- (1) 3/8" DRIVE DEEP SOCKET 13/16" - 12 POINT
Proto J5026 Features
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Proto J5026 Specifications
SIZE | 13/16" |
NUT END OUTSIDE DIAMETER | 1-5/64" |
DRIVE END OUTSIDE DIAMETER | 1-5/64" |
NUT DEPTH | 43/64" |
BOLT CLEARANCE DEPTH | 2-5/16" |
OVERALL LENGTH | 2-3/4" |
WEIGHT | 0.36 lbs |
DRIVE SIZE | 3/8" |
POINT SIZE | 12 |
FINISH | Full Polish |
LENGTH TYPE | Deep |
UNIT OF MEASURE | Fractional |
SPECIFICATION ASME | ASME B107.110-2012 |
SPECIFICATION AS | AS954E S3.8.1 |
