Proto | SKU:
J5224M-TT

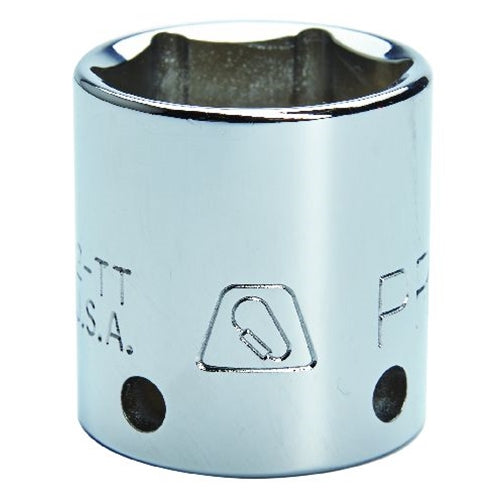

Proto J5224M-TT Tether-Ready 3/8" Drive Socket 24 mm - 12 Point
$24.44
$38.76
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) TETHER-READY 3/8" DRIVE SOCKET
FEATURES:
• Proto® Tethered Tool Sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive.
• The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent.
• Chrome finish is applied after the holes are bored for better corrosion resistance.
• Proto® 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 15/16"
• DRIVE SIZE: 3/8"
• NUT END OUTSIDE DIAMETER: 1-1/4"
• DRIVE END OUTSIDE DIAMETER: 1-1/4"
• NUT DEPTH: 49/64"
• BOLT CLEARANCE DEPTH: 37/64"
• MOUTH WIDTH 2: 49/64"
• OVERALL LENGTH: 1-5/16"
• WEIGHT: 0.23 lbs
• FINISH: Full Polish
• POINT SIZE: 12
• SPECIFICATION ASME: ASME B107.5M
• UNIT OF MEASURE: Fractional
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
• (1) TETHER-READY 3/8" DRIVE SOCKET
FEATURES:
• Proto® Tethered Tool Sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive.
• The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent.
• Chrome finish is applied after the holes are bored for better corrosion resistance.
• Proto® 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 15/16"
• DRIVE SIZE: 3/8"
• NUT END OUTSIDE DIAMETER: 1-1/4"
• DRIVE END OUTSIDE DIAMETER: 1-1/4"
• NUT DEPTH: 49/64"
• BOLT CLEARANCE DEPTH: 37/64"
• MOUTH WIDTH 2: 49/64"
• OVERALL LENGTH: 1-5/16"
• WEIGHT: 0.23 lbs
• FINISH: Full Polish
• POINT SIZE: 12
• SPECIFICATION ASME: ASME B107.5M
• UNIT OF MEASURE: Fractional
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
