Proto  |  SKU: J5232  |  Barcode: 662679161767

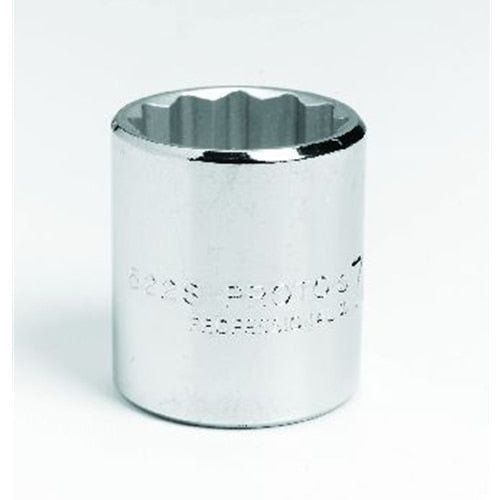

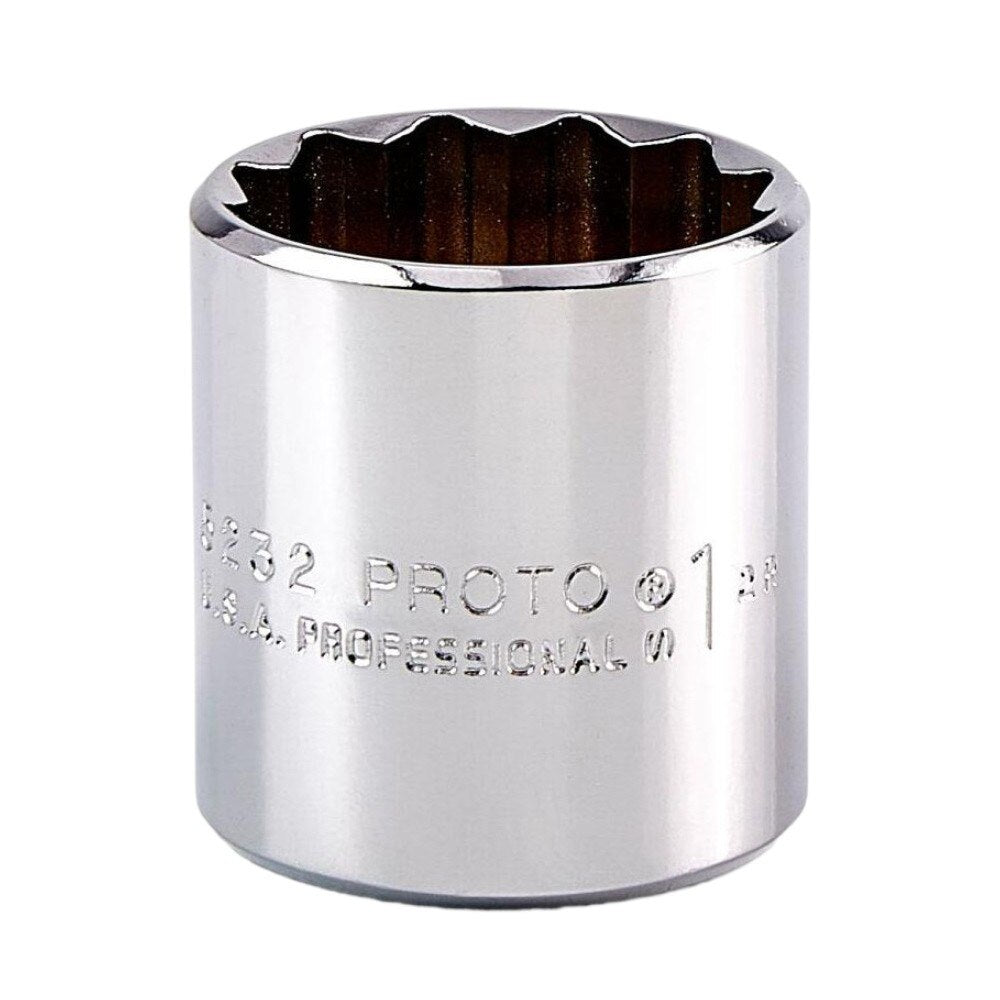

Proto J5232 3/8" Drive Socket 1" - 12 Point

$11.69 $24.58

Description

Proto J5232 Includes

  • (1) 3/8" DRIVE SOCKET 1" - 12 POINT

Proto J5232 Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J5232 Specifications

SIZE 1"
NUT END OUTSIDE DIAMETER 1-5/16"
DRIVE END OUTSIDE DIAMETER 1-5/16"
NUT DEPTH 13/16"
BOLT CLEARANCE DEPTH 59/64"
OVERALL LENGTH 1-3/8"
WEIGHT 0.27 lbs
DRIVE SIZE 3/8"
POINT SIZE 12
FINISH Full Polish
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS SAE AS4984A
