Proto | SKU:
J5273AM

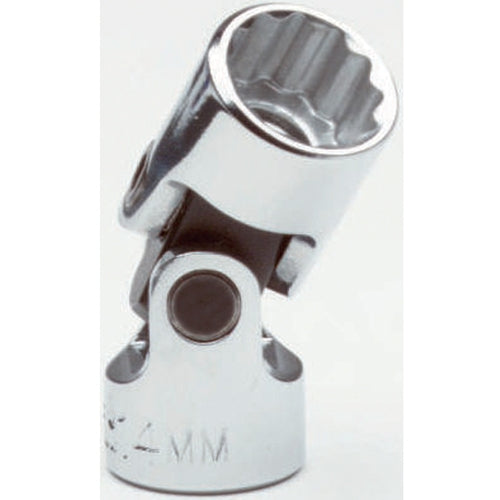

Proto J5273AM 3/8" DRIVE UNIVERSAL JOINT SOCKET 10 MM - 12 POINT
$27.44
$53.04
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) 3/8" DRIVE UNIVERSAL JOINT SOCKET 10 MM - 12 POINT
FEATURES:
• Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 10 mm
• NUT END OUTSIDE DIAMETER: 35/64"
• DRIVE END OUTSIDE DIAMETER: 23/32"
• NUT DEPTH: 11/32"
• BOLT CLEARANCE DEPTH: 25/64"
• OVERALL LENGTH: 1-3/4"
• WEIGHT: 0.10 lbs
• DRIVE SIZE: 3/8"
• POINT SIZE: 12
• FINISH: Full Polish
• LENGTH TYPE: Standard
• UNIT OF MEASURE: Metric
• SPECIFICATION ASME: ASME B107.110-2012
• (1) 3/8" DRIVE UNIVERSAL JOINT SOCKET 10 MM - 12 POINT
FEATURES:
• Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 10 mm
• NUT END OUTSIDE DIAMETER: 35/64"
• DRIVE END OUTSIDE DIAMETER: 23/32"
• NUT DEPTH: 11/32"
• BOLT CLEARANCE DEPTH: 25/64"
• OVERALL LENGTH: 1-3/4"
• WEIGHT: 0.10 lbs
• DRIVE SIZE: 3/8"
• POINT SIZE: 12
• FINISH: Full Polish
• LENGTH TYPE: Standard
• UNIT OF MEASURE: Metric
• SPECIFICATION ASME: ASME B107.110-2012
