Proto | SKU:
J5328M

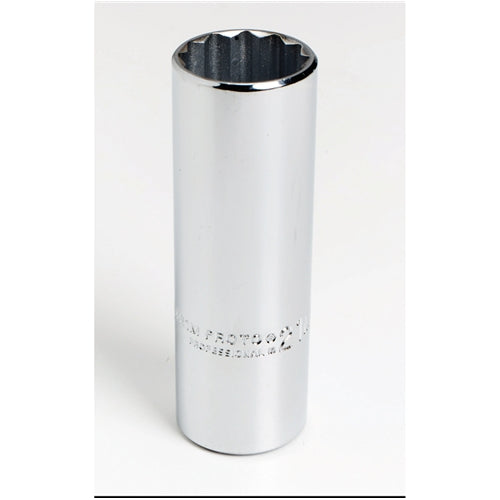

Proto J5328M 1/2" Drive Deep Socket 28 mm - 12 Point
$24.75
$35.70
Unit price
/
Unavailable
Description
Description
Proto J5328M Includes
- (1) 1/2" DRIVE DEEP SOCKET 28 MM - 12 POINT
Proto J5328M Features
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Proto J5328M Specifications
SIZE | 22 mm |
NUT END OUTSIDE DIAMETER | 1-3/32" |
DRIVE END OUTSIDE DIAMETER | 1-31/64" |
NUT DEPTH | 1-7/64" |
BOLT CLEARANCE DEPTH | 2-3/32" |
OVERALL LENGTH | 3-1/4" |
WEIGHT | 0.68 lbs |
DRIVE SIZE | 1/2" |
POINT SIZE | 12 |
FINISH | Full Polish |
LENGTH TYPE | Deep |
UNIT OF MEASURE | Metric |
SPECIFICATION ASME | ASME B107.110-2012 |
SPECIFICATION AS | SAE AS955 |
