Proto | SKU:
J5425M-TT

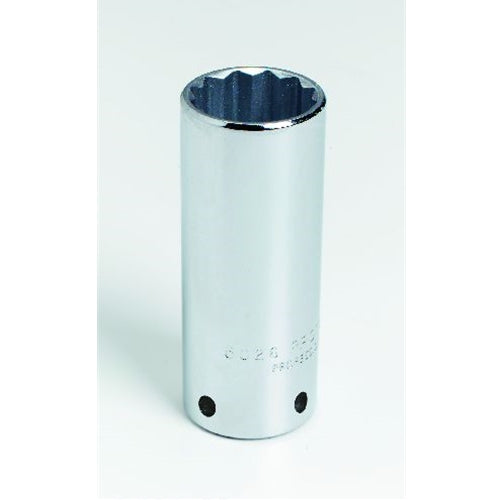

Proto J5425M-TT Tether-Ready 1/2" Drive Socket 25 mm - 12 Point
$28.51
$45.22
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) TETHER-READY 1/2" DRIVE SOCKET
FEATURES:
• Proto® Tethered Tool Sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive.
• The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent.
• Chrome finish is applied after the holes are bored for better corrosion resistance.
• Proto® 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 1"
• DRIVE SIZE: 1/2"
• NUT END OUTSIDE DIAMETER: 1-9/32
• DRIVE END OUTSIDE DIAMETER: 1-9/32"
• NUT DEPTH: 53/64"
• BOLT CLEARANCE DEPTH: 59/64"
• MOUTH WIDTH 2: 53/64"
• OVERALL LENGTH: 1-17/32"
• WEIGHT: 0.30 lbs
• FINISH: Full Polish
• POINT SIZE: 12
• SPECIFICATION ASME: ASME B107.5M
• UNIT OF MEASURE: Fractional
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
• (1) TETHER-READY 1/2" DRIVE SOCKET
FEATURES:
• Proto® Tethered Tool Sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive.
• The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent.
• Chrome finish is applied after the holes are bored for better corrosion resistance.
• Proto® 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SPECIFICATIONS:
• SIZE: 1"
• DRIVE SIZE: 1/2"
• NUT END OUTSIDE DIAMETER: 1-9/32
• DRIVE END OUTSIDE DIAMETER: 1-9/32"
• NUT DEPTH: 53/64"
• BOLT CLEARANCE DEPTH: 59/64"
• MOUTH WIDTH 2: 53/64"
• OVERALL LENGTH: 1-17/32"
• WEIGHT: 0.30 lbs
• FINISH: Full Polish
• POINT SIZE: 12
• SPECIFICATION ASME: ASME B107.5M
• UNIT OF MEASURE: Fractional
Proto's line of industrial tethered tools is the next generation of tool safety technology . The SkyHook™ Tether and Transfer system provides secure tool transfers, a free range of motion and positive tool control at the worksite.
