Proto  |  SKU: J5442H  |  Barcode: 662679182441

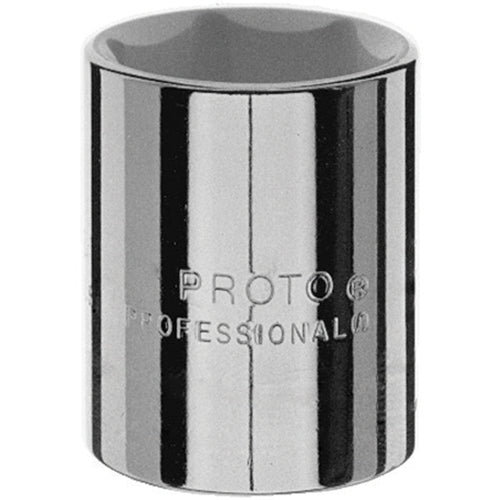

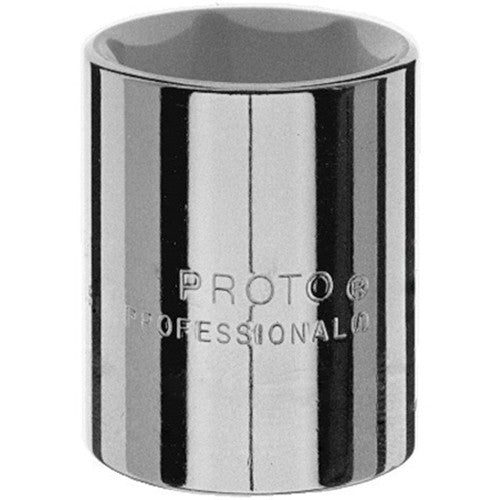

Proto J5442H 1/2" Drive Socket 1-5/16" - 6 Point

$25.33 $33.79

Description

Proto J5442H Includes

  • (1) 1/2" DRIVE SOCKET 1-5/16" - 6 POINT

Proto J5442H Features

  • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J5442H Specifications

SIZE 1-5/16"
NUT END OUTSIDE DIAMETER 1-21/32"
DRIVE END OUTSIDE DIAMETER 1-21/32"
NUT DEPTH 27/32"
BOLT CLEARANCE DEPTH 49/64"
OVERALL LENGTH 1-3/4"
WEIGHT 0.69 lbs
DRIVE SIZE 1/2"
POINT SIZE 6
FINISH Full Polish
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS SAE AS4984A
