Proto | SKU:
J5530HL

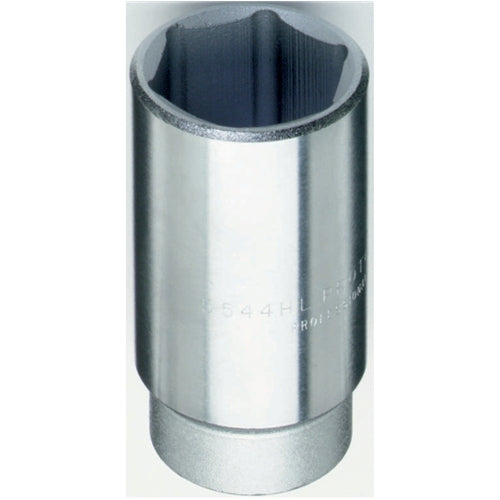

Proto J5530HL 3/4" Drive Deep Socket 15/16" - 6 Point
$26.99
$48.95
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) 3/4" DRIVE DEEP SOCKET 15/16" - 6 POINT
FEATURES:
• Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
• Made from alloy steel.
• Heat-treated for strength and durability.
• Hand use only.
• Ball detent design.
SPECIFICATIONS:
• SIZE: 15/16''
• NUT END OUTSIDE DIAMETER: 1-7/16"
• DRIVE END OUTSIDE DIAMETER: 1-7/16"
• NUT DEPTH: 9/16''
• BOLT CLEARANCE DEPTH: 2-9/16"
• OVERALL LENGTH: 3-1/2"
• WEIGHT: 0.80 lbs
• DRIVE SIZE: 3/4"
• POINT SIZE: 6
• FINISH: Satin
• LENGTH TYPE: Deep
• UNIT OF MEASURE: Fractional
• SPECIFICATION ASME: ASME B107.110-2012
• SPECIFICATION AS: SAE AS955
• (1) 3/4" DRIVE DEEP SOCKET 15/16" - 6 POINT
FEATURES:
• Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
• Made from alloy steel.
• Heat-treated for strength and durability.
• Hand use only.
• Ball detent design.
SPECIFICATIONS:
• SIZE: 15/16''
• NUT END OUTSIDE DIAMETER: 1-7/16"
• DRIVE END OUTSIDE DIAMETER: 1-7/16"
• NUT DEPTH: 9/16''
• BOLT CLEARANCE DEPTH: 2-9/16"
• OVERALL LENGTH: 3-1/2"
• WEIGHT: 0.80 lbs
• DRIVE SIZE: 3/4"
• POINT SIZE: 6
• FINISH: Satin
• LENGTH TYPE: Deep
• UNIT OF MEASURE: Fractional
• SPECIFICATION ASME: ASME B107.110-2012
• SPECIFICATION AS: SAE AS955
