Proto | SKU:
J5560

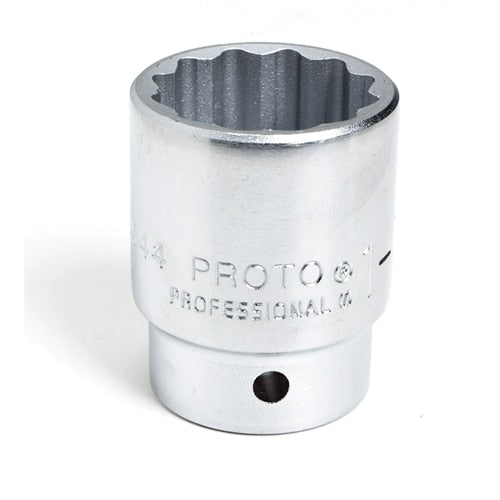

Proto J5560 3/4" Drive Socket 1-7/8" - 12 Point
$42.34
$42.34
Unit price
/
Unavailable
Description
Description
Proto J5560 Includes
- (1) 3/4" DRIVE SOCKET 1-7/8" - 12 POINT
Proto J5560 Features
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Ball detent design.
- Made of heat-treated alloy steel.
- Side locking hole.
Proto J5560 Specifications
SIZE | 1-7/8" |
NUT END OUTSIDE DIAMETER | 2-9/16" |
DRIVE END OUTSIDE DIAMETER | 1-3/4" |
NUT DEPTH | 1-19/64" |
BOLT CLEARANCE DEPTH | 1-39/64" |
OVERALL LENGTH | 2-31/32" |
WEIGHT | 1.55 lbs |
DRIVE SIZE | 3/4" |
POINT SIZE | 12 |
FINISH | Satin |
LENGTH TYPE | Standard |
UNIT OF MEASURE | Fractional |
SPECIFICATION ASME | ASME B107.110-2012 |
SPECIFICATION AS | SAE AS4984A |
