Proto | SKU:
J5564

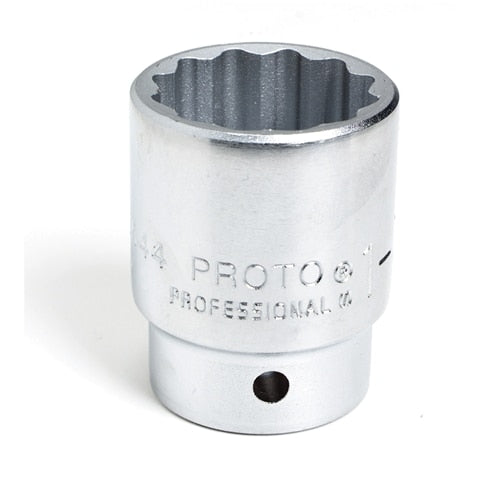

Proto J5564 3/4" Drive Socket 2" - 12 Point
$43.99
$88.06
Unit price
/
Unavailable
Description
Description
Proto J5564 Includes
- (1) 3/4" DRIVE SOCKET 2" - 12 POINT
Proto J5564 Features
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Ball detent design.
- Made of heat-treated alloy steel.
- Side locking hole.
Proto J5564 Specifications
SIZE | 2" |
NUT END OUTSIDE DIAMETER | 2-47/64" |
DRIVE END OUTSIDE DIAMETER | 2" |
NUT DEPTH | 1-3/4" |
BOLT CLEARANCE DEPTH | 1-3/4" |
OVERALL LENGTH | 3-7/64" |
WEIGHT | 1.59 lbs |
DRIVE SIZE | 3/4" |
POINT SIZE | 12 |
FINISH | Satin |
LENGTH TYPE | Standard |
UNIT OF MEASURE | Fractional |
SPECIFICATION ASME | ASME B107.110-2012 |
SPECIFICATION AS | SAE AS4984A |
