Proto  |  SKU: J5742  |  Barcode: 662679210045

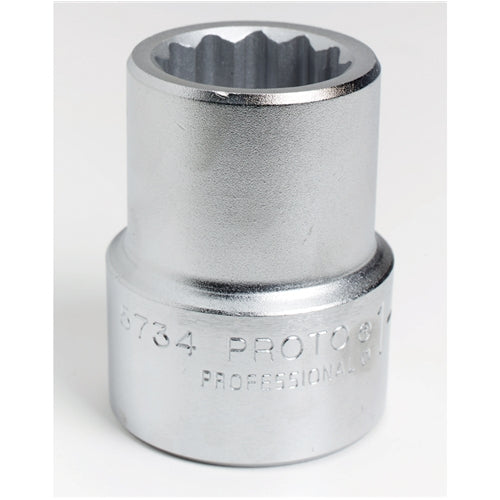

Proto J5742 1" Drive Socket 1-5/16" - 12 Point

$26.45 $58.47

Description

Proto J5742 Includes

  • (1) 1" DRIVE SOCKET 1-5/16" - 12 POINT

Proto J5742 Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J5742 Specifications

SIZE 1-5/16"
NUT END OUTSIDE DIAMETER 2-1/32"
DRIVE END OUTSIDE DIAMETER 2-1/32"
NUT DEPTH 7/8"
BOLT CLEARANCE DEPTH 1-5/32"
OVERALL LENGTH 2-21/32"
WEIGHT 1.39 lbs
DRIVE SIZE 1"
POINT SIZE 12
FINISH Satin
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
