Proto  |  SKU: J5800  |  Barcode: 662679210250

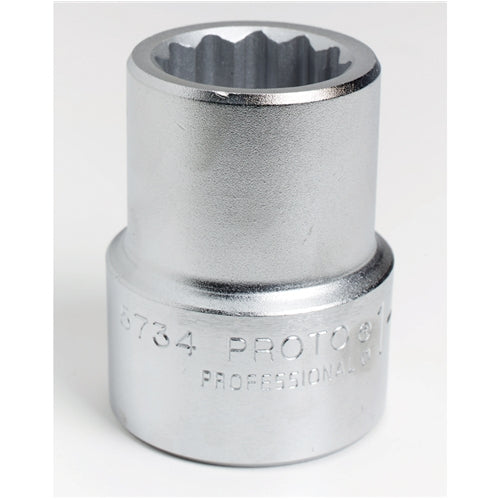

Proto J5800 1" Drive Socket 3-1/8" - 12 Point

$193.84 $351.45

Description

Proto J5800 Includes

  • (1) 1" DRIVE SOCKET 3-1/8" - 12 POINT

Proto J5800 Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J5800 Specifications

SIZE 3-1/8"
NUT END OUTSIDE DIAMETER 4-3/8"
DRIVE END OUTSIDE DIAMETER 3-5/32"
NUT DEPTH 2"
BOLT CLEARANCE DEPTH 3-1/32"
OVERALL LENGTH 4-15/16"
WEIGHT 5.95 lbs
DRIVE SIZE 1"
POINT SIZE 12
FINISH Satin
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
