Proto | SKU:
J7334

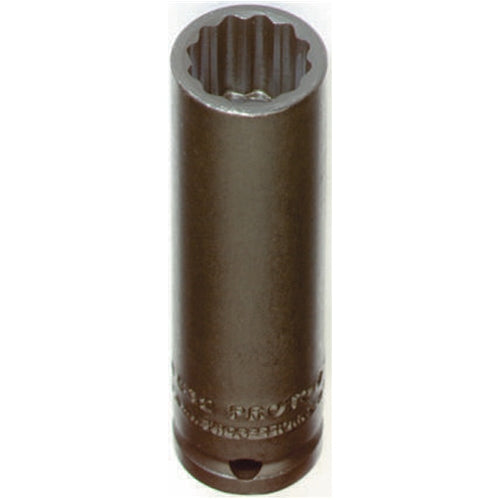

Proto J7334 1/2" DRIVE DEEP IMPACT SOCKET 1-1/16" - 12 POINT
$14.87
$28.75
Unit price
/
Unavailable
Description
Description
Proto J7334 Includes
- (1) 1/2" DRIVE DEEP IMPACT SOCKET 1-1/16" - 12 POINT
Proto J7334 Features
- Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Socket size stamped on tool for easy identification.
- Side locking hole.
Proto J7334 Specifications
| SIZE | 1-1/16" |
| NUT END OUTSIDE DIAMETER | 1-1/2" |
| DRIVE END OUTSIDE DIAMETER | 1-1/2" |
| NUT DEPTH | 1-17/32" |
| BOLT CLEARANCE DEPTH | 2-7/8" |
| OVERALL LENGTH | 3-1/2" |
| WEIGHT | 0.94 lbs |
| DRIVE SIZE | 1/2" |
| POINT SIZE | 12 |
| FINISH | Black Oxide |
| LENGTH TYPE | Deep |
| UNIT OF MEASURE | Fractional |
| SPECIFICATION ASME | ASME B107.110-2012 |
