Proto  |  SKU: J7346HT  |  Barcode: 662679573973

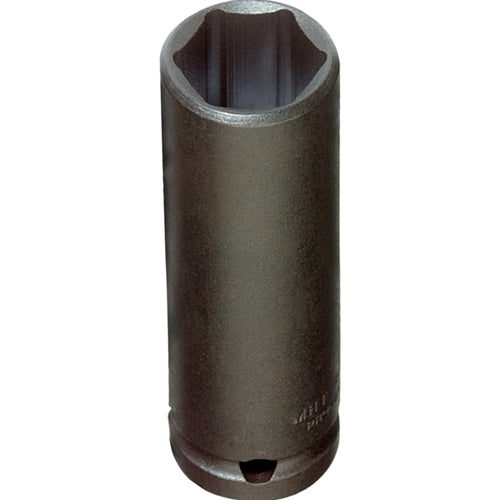

Proto J7346HT 1/2" DRIVE THIN WALL DEEP IMPACT SOCKET 1-7/16" - 6 POINT

$27.70 $27.70

Description

Proto J7346HT Includes

  • (1) 1/2" DRIVE THIN WALL DEEP IMPACT SOCKET 1-7/16" - 6 POINT

Proto J7346HT Features

  • Specifically designed for light clearance applications.
  • Reduced wall thickness helps improve access to fasteners in restricted areas.
  • All Impact sockets feature one through hole and a groove to accept a retaining ring and pin to secure the socket to the power tool anvil.
  • Chamfered service ends for quick and positive fastener engagement.
  • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
  • Thin wall sockets are lightweight.
  • They designed to fit into smaller spaces.
  • Thinner walls help improve productivity by making it easier to gain access to fasteners in confined spaces.
  • Extra deep length helps improve access in confined areas.
  • Often used in application where fasteners are close together, such as tire service.

Proto J7346HT Specifications

SIZE 1-7/16"
NUT END OUTSIDE DIAMETER 1-15/16"
DRIVE END OUTSIDE DIAMETER 1-15/16"
NUT DEPTH 1-13/16"
BOLT CLEARANCE DEPTH 1"
OVERALL LENGTH 3-1/2"
WEIGHT 1.56 lbs
DRIVE SIZE 1/2"
POINT SIZE 6
FINISH Black Oxide
LENGTH TYPE Deep
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
