Proto  |  SKU: J7426H  |  Barcode: 662679341329

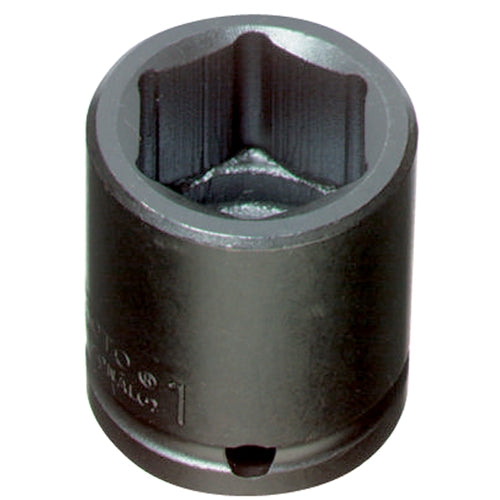

Proto J7426H 1/2" DRIVE IMPACT SOCKET 13/16" - 6 POINT

$9.45 $24.28

Description

Proto J7426H Includes

  • (1) 1/2" DRIVE IMPACT SOCKET 13/16" - 6 POINT

Proto J7426H Features

  • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J7426H Specifications

SIZE 13/16''
NUT END OUTSIDE DIAMETER 1-13/64"
DRIVE END OUTSIDE DIAMETER 1-13/64"
NUT DEPTH 11/16"
BOLT CLEARANCE DEPTH 31/32"
OVERALL LENGTH 1-5/8"
WEIGHT 0.31 lbs
DRIVE SIZE 1/2"
POINT SIZE 6
FINISH Black Oxide
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION AS SAE AS4984A
SPECIFICATION ASME ASME B107.110-2012
