Proto  |  SKU: J7426S  |  Barcode: 662679341350

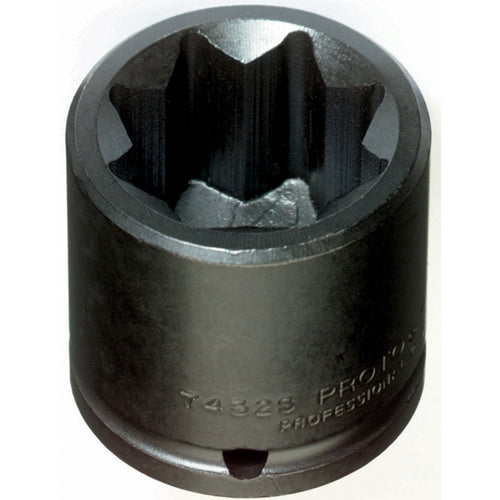

Proto J7426S 1/2" DRIVE IMPACT SOCKET 13/16" - 8 POINT

$22.85 $24.59

Description

Proto J7426S Includes

  • (1) 1/2" DRIVE IMPACT SOCKET 13/16" - 8 POINT

Proto J7426S Features

  • Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls.
  • Tight tolerances for snug fit on fastener.
  • Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners.
  • Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude.
  • Impact sockets are used wherever powered drive tools are used to install or remove fasteners.
  • Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application.
  • Proto® 8 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
  • Socket size stamped on tool for easy identification.
  • Side locking hole.

Proto J7426S Specifications

SIZE 13/16"
NUT END OUTSIDE DIAMETER 1-3/8"
DRIVE END OUTSIDE DIAMETER 1-3/8"
NUT DEPTH 27/32"
BOLT CLEARANCE DEPTH 27/32"
OVERALL LENGTH 1-1/2"
WEIGHT 0.39 lbs
DRIVE SIZE 1/2"
POINT SIZE 8
FINISH Black Oxide
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
