Proto | SKU:
J7430S

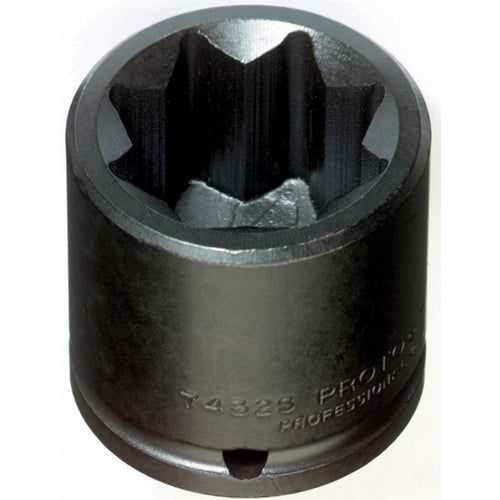

Proto J7430S 1/2" DRIVE IMPACT SOCKET 15/16" - 8 POINT
$19.45
$30.85
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) 1/2" DRIVE IMPACT SOCKET 15/16" - 8 POINT
FEATURES:
• Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls.
• Tight tolerances for snug fit on fastener.
• Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners.
• Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude.
• Impact sockets are used wherever powered drive tools are used to install or remove fasteners.
• Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application.
• Proto® 8 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
• Socket size stamped on tool for easy identification.
• Side locking hole.
SPECIFICATIONS:
• SIZE: 15/16''
• NUT END OUTSIDE DIAMETER: 1-5/8"
• DRIVE END OUTSIDE DIAMETER: 1-5/8"
• NUT DEPTH: 1-1/64"
• BOLT CLEARANCE DEPTH: 1-3/32"
• OVERALL LENGTH: 1-3/4"
• WEIGHT: 0.62 lbs
• DRIVE SIZE: 1/2"
• POINT SIZE: 8
• FINISH: Black Oxide
• LENGTH TYPE: Standard
• UNIT OF MEASURE: Fractional
• SPECIFICATION ASME: ASME B107.110-2012
• (1) 1/2" DRIVE IMPACT SOCKET 15/16" - 8 POINT
FEATURES:
• Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls.
• Tight tolerances for snug fit on fastener.
• Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners.
• Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude.
• Impact sockets are used wherever powered drive tools are used to install or remove fasteners.
• Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application.
• Proto® 8 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
• Socket size stamped on tool for easy identification.
• Side locking hole.
SPECIFICATIONS:
• SIZE: 15/16''
• NUT END OUTSIDE DIAMETER: 1-5/8"
• DRIVE END OUTSIDE DIAMETER: 1-5/8"
• NUT DEPTH: 1-1/64"
• BOLT CLEARANCE DEPTH: 1-3/32"
• OVERALL LENGTH: 1-3/4"
• WEIGHT: 0.62 lbs
• DRIVE SIZE: 1/2"
• POINT SIZE: 8
• FINISH: Black Oxide
• LENGTH TYPE: Standard
• UNIT OF MEASURE: Fractional
• SPECIFICATION ASME: ASME B107.110-2012
