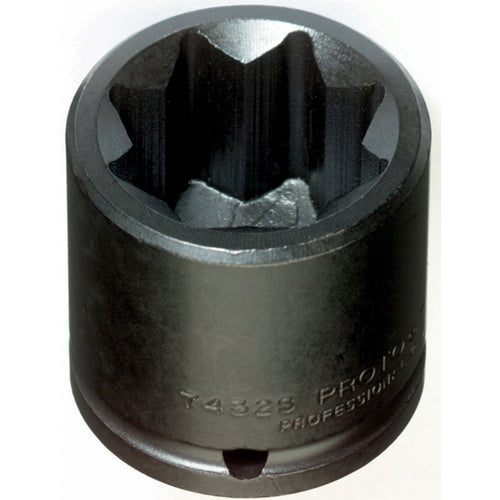

Proto J7432S 1/2" DRIVE IMPACT SOCKET 1" - 8 POINT
$25.05
$31.50
Unit price
/
Unavailable
Description
Description
Proto J7432S Includes
- (1) 1/2" DRIVE IMPACT SOCKET 1" - 8 POINT
Proto J7432S Features
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls.
- Tight tolerances for snug fit on fastener.
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners.
- Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude.
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners.
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application.
- Proto® 8 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Socket size stamped on tool for easy identification.
- Side locking hole.
Proto J7432S Specifications
SIZE | 1'' |
NUT END OUTSIDE DIAMETER | 1-3/4" |
DRIVE END OUTSIDE DIAMETER | 1-3/4" |
NUT DEPTH | 1-1/64" |
BOLT CLEARANCE DEPTH | 1-3/32" |
OVERALL LENGTH | 1-3/4" |
WEIGHT | 0.74 lbs |
DRIVE SIZE | 1/2" |
POINT SIZE | 8 |
FINISH | Black Oxide |
LENGTH TYPE | Standard |
UNIT OF MEASURE | Fractional |
SPECIFICATION ASME | ASME B107.110-2012 |
