Proto  |  SKU: J7718H  |  Barcode: 662679330880

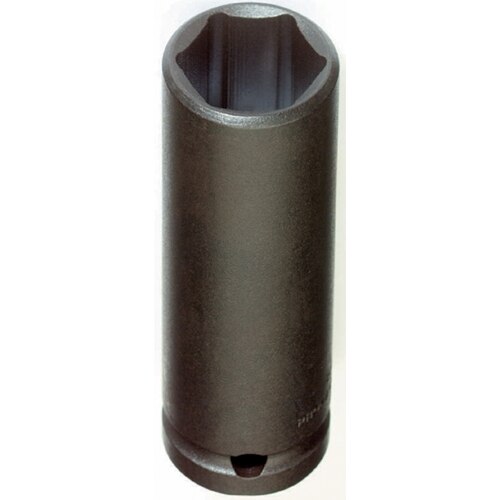

Proto J7718H 3/8" DRIVE DEEP IMPACT SOCKET 9/16" - 6 POINT

$9.94 $23.38

Description

Proto J7718H Includes

  • (1) 3/8" DRIVE DEEP IMPACT SOCKET 9/16" - 6 POINT

Proto J7718H Features

  • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
  • Socket size stamped on tool for easy identification.
  • Side locking hole.

Proto J7718H Specifications

SIZE 9/16"
NUT END OUTSIDE DIAMETER 13/16"
DRIVE END OUTSIDE DIAMETER 13/16"
NUT DEPTH 11/16"
BOLT CLEARANCE DEPTH 2-1/4"
OVERALL LENGTH 2-3/4"
WEIGHT 0.22 lbs
DRIVE SIZE 3/8"
POINT SIZE 6
FINISH Black Oxide
LENGTH TYPE Deep
UNIT OF MEASURE Fractional
SPECIFICATION AS SAE AS4984A
SPECIFICATION ASME ASME B107.110-2012
​ ​ ​ ​ ​ ​
