Proto | SKU:
J77270P

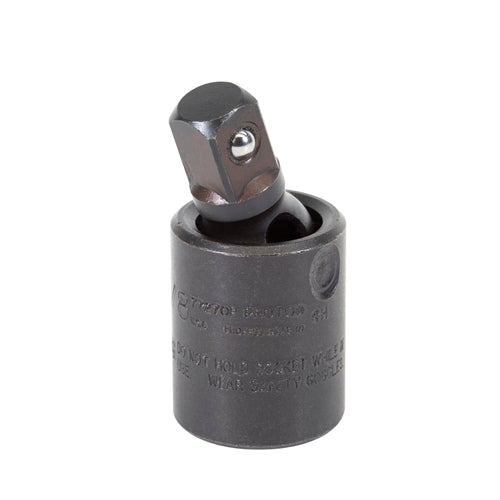

Proto J77270P 3/8" DRIVE IMPACT UNIVERSAL JOINT
$9.45 off
$23.39
$32.84
Unit price
/
Unavailable
Description
Description
Proto J77270P Includes
- (1) 3/8" DRIVE IMPACT UNIVERSAL JOINT
Proto J77270P Features
- Tight tolerances for snug fit on fastener.
- Used wherever powered drive tools are used to install or remove fasteners.
- Designed to withstand the high torque and force associated with impact tools in repetitive application.
- Features two through holes and a groove to accept a Proto® Retaining Ring or pin and O-ring to help secure the socket to the drive tool anvil.
- Position at appropriate angle to turn fasteners where obstructions prevent a straight application.
- Ball and spring design which allows for a 30° working angle.
- Smooth 360° rotation.
Proto J77270P Specifications
| DRIVE SIZE | 3/8" |
| FINISH | Black Oxide |
| LENGTH TYPE | Standard |
| UNIT OF MEASURE | Fractional |
| DRIVE END OUTSIDE DIAMETER | 15/16" |
| SPECIFICATION ASME | ASME B107.110-2012 |
| OVERALL LENGTH | 2-1/32" |
| WEIGHT | 0.21 lbs |
| SIZE | 3/8" |
| SPECIFICATION AS | SAE AS4984A |
