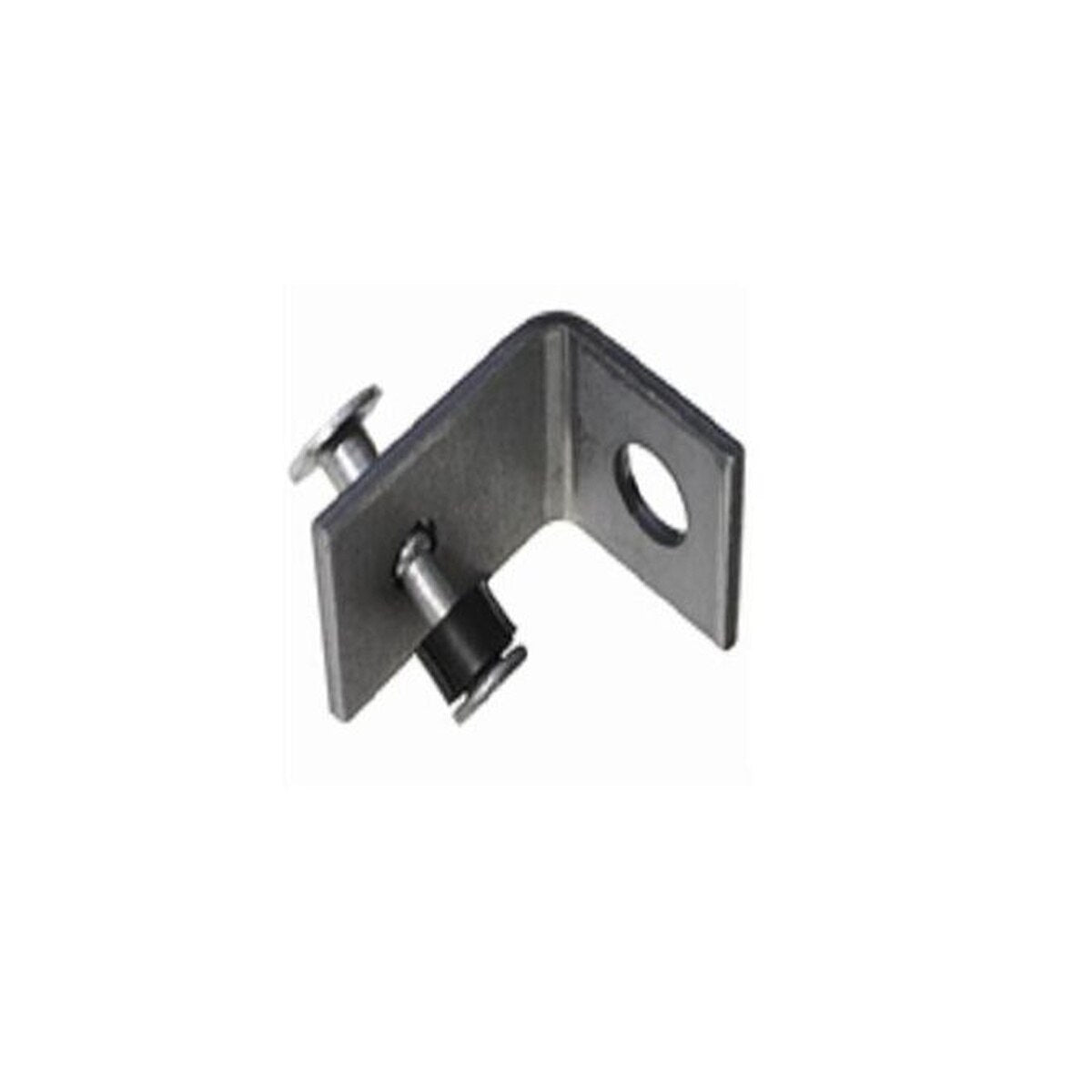

ITW Ramset Red Head 34CLIP Description
The ITW Ramset Red Head 34CLIP is a 3/4 in. angle clip sized 0.125 in. x 0.300 in. It is designed for use with 0.104 in. and 0.125 in. shank diameters, requires a minimum penetration of 5/8 in., and is supplied 100 per box with published allowable tension and shear loads for 3000 PSI lightweight, 4000 PSI, and 6000 PSI concrete.
ITW Ramset Red Head 34CLIP Includes
- (100) 3/4 in. Angle Clips
ITW Ramset Red Head 34CLIP Features
- 3/4 in. angle clip with 0.125 in. x 0.300 in. dimensions
- Compatible with 0.104 in. and 0.125 in. shank diameters
- Requires 5/8 in. minimum penetration
- Published allowable tension and shear loads for 3000 PSI lightweight, 4000 PSI, and 6000 PSI concrete
- Packaged 100 per box
ITW Ramset Red Head 34CLIP Specifications
| Product Type | Angle Clip |
| Size | 3/4 in. |
| Dimensions | 0.125 in. x 0.300 in. |
| Shank Diameter | 0.104/0.125 in. |
| Minimum Penetration | 5/8 in. |
| Allowable Load at 4000 PSI | Tension: 60 - 357, Shear: 117 - 587 |
| Allowable Load at 6000 PSI | Tension: 107 - 533, Shear: 191 - 957 |
| Allowable Load at 3000 PSI Lightweight | Tension: 54 - 269, Shear: 230 - 1150 |
| Packaging | 100 per box |
Toolup Part # :
53458
