ITW Ramset Red Head | SKU:
TE12

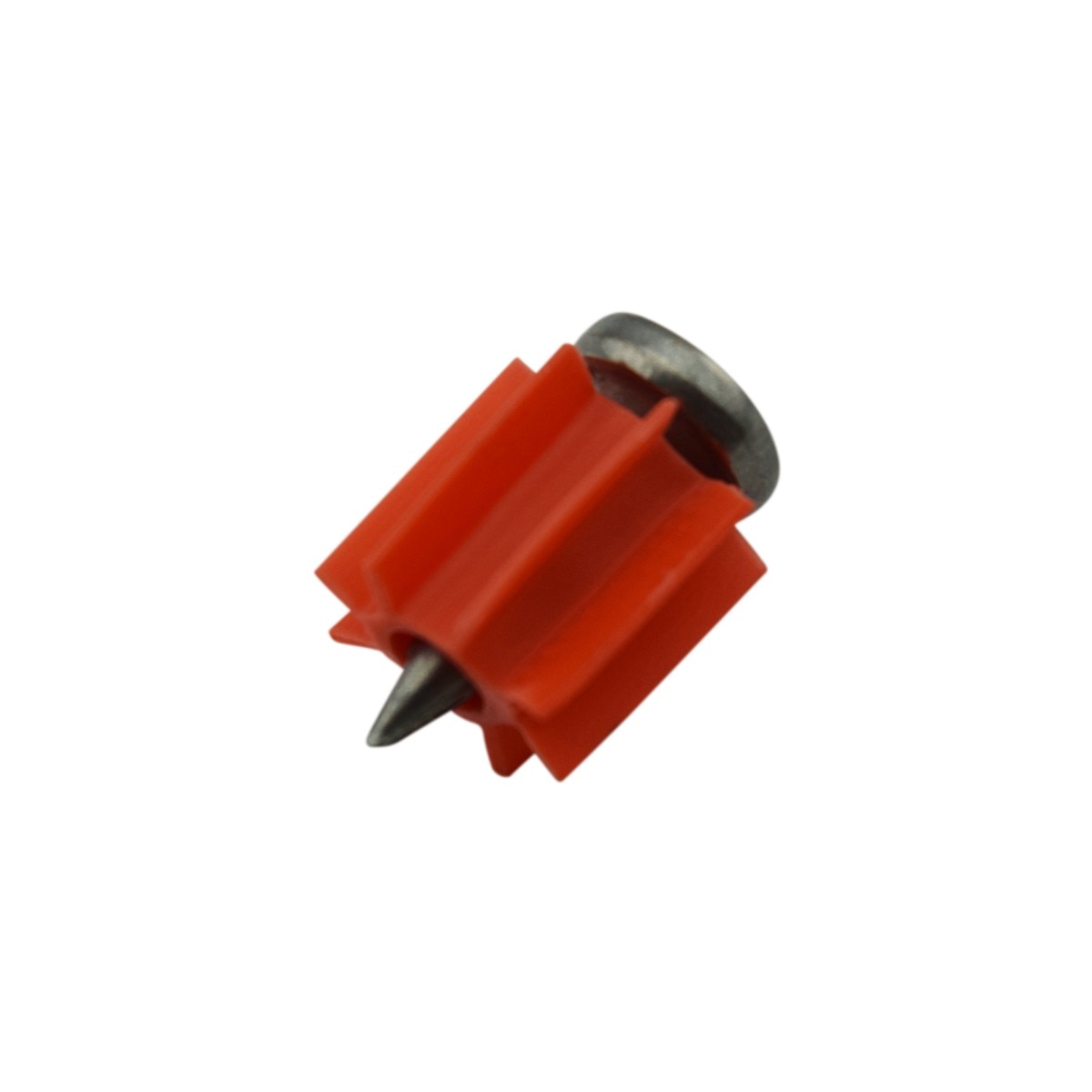

Ramset TE12 1/2" True Embedment Pins, 100 pack
$10.78
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
ITW Ramset Red Head TE12 Includes
- (100) True Embedment Pins
ITW Ramset Red Head TE12 Features
- The Ramset .157 True Embedment Pin is sized to provide you with True Embedment depths in track up to 14 gauge
- Sized 1/16" longer than nominal length to provide a True Embedment
- Made from AISI 1070 steel. Austempered to a core hardness of 52-56 Rc
- Typical tensile strength: 270,000 psi
- Typical shear strength: 162,000 psi
- STANDARD FINISHES
- Mechanical zinc plate to a minimum thickness of .0002 meets requirements of ASTM B695—Class 5 Type 1
ITW Ramset Red Head TE12 Specifications
| Pin Length | 0.545" (13.8 mm) |
| Embedment Length | 1/2" (25.4 mm) |
| Shank Diameter | 0.157" |
| Head Diameter | 0.320" |
| For use in the following tools | 721/R25, VIPER, ROCKET/SA270, D45A, COBRA, XT540 |
