ITW Ramset Red Head WW-5850 Description

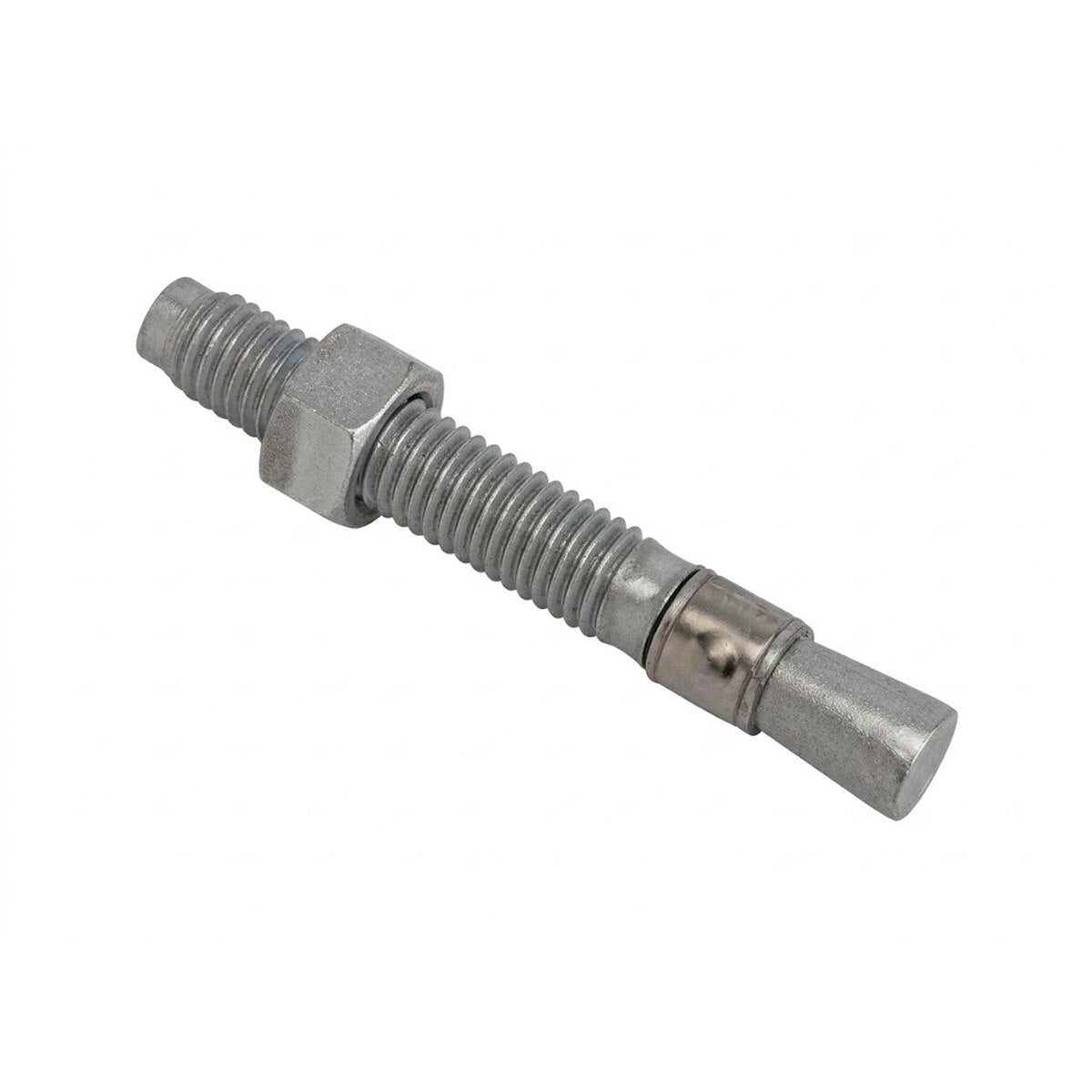

The ITW Ramset Red Head WW-5850 Trubolt wedge anchor is a 304 stainless steel concrete anchor designed for medium-corrosion environments. Measuring 5/8 in. diameter by 5 in. long, it is well suited for applications such as cladding and stadium seating.
ITW Ramset Red Head WW-5850 Includes
- (1) Trubolt Wedge Anchors
ITW Ramset Red Head WW-5850 Features
- 304 stainless steel construction helps resist rust and many chemicals
- Designed for concrete anchoring applications
- 5/8 in. anchor diameter and 5 in. overall length
- Suitable for medium-corrosion urban environments
- Typical applications include cladding and stadium seating
- Includes matching stainless steel nuts and washers
- Minimum embedment of 2-3/4 in.
- Not recommended for vibratory load applications
ITW Ramset Red Head WW-5850 Specifications
| Product Type | Wedge Anchor |
| Material | 304 Stainless Steel |
| Anchor Diameter | 5/8 in. |
| Overall Length | 5 in. |
| Thread Length | 3-1/4 in. |
| Threads Per Inch | 11 |
| Maximum Material Thickness | 1-5/8 in. |
| Minimum Embedment | 2-3/4 in. |
| Bit Size | 5/8 in. |
| Minimum Anchor Spacing | 9-5/8 in. |
| Base Material | Concrete |
| Corrosion Level | Medium |
| Environment | Urban, slight to moderate degree of pollution |
| Typical Applications | Cladding, stadium seating, etc. |
| Load Limitation | Not acceptable for use in a vibratory load |
