Reed 03270 Description

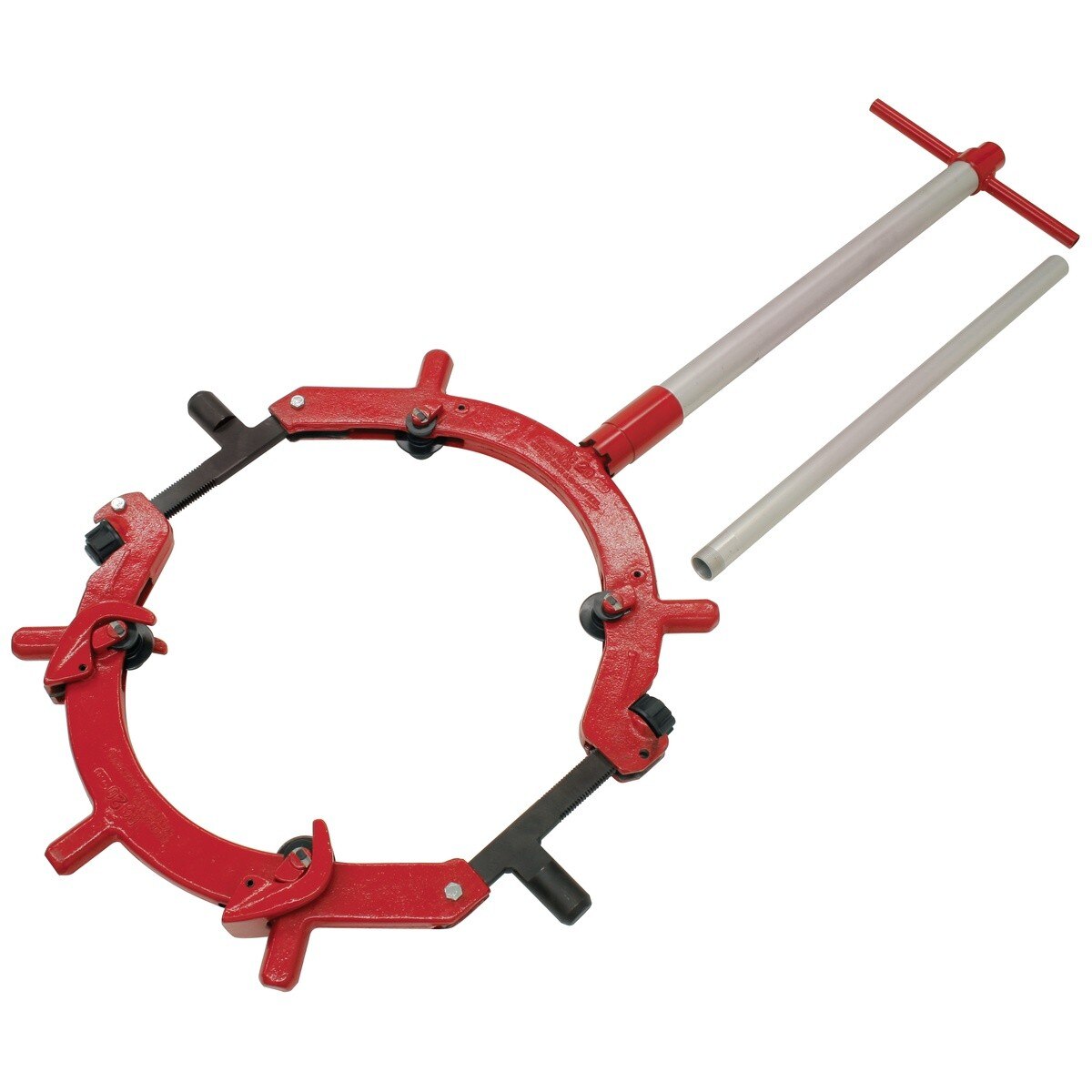

The Reed RC20X rotary pipe cutter is built for cold cutting large diameter steel pipe in close quarters. Its heavy-duty frame, slip-on handle, and RCX cutter wheel configuration help deliver square cuts on thick-wall steel and stainless steel applications.
Reed 03270 Includes
- (1) RC20X Rotary Pipe Cutter
- (1) Slip-On Handle
- (8) RC8-30XR Rollers
Reed 03270 Features
- Cold cuts large diameter steel, most stainless steel, ductile, and cast iron pipe
- RCX cutter wheels provide 0.800 in blade exposure for thick-wall steel and stainless steel pipe
- One set of (8) RC8-30XR rollers is installed for use with RCX cutter wheels
- Low profile design helps work in close quarters
- Pipe snaps off squarely once the cut is completed
- Slip-on handle is used to turn and tighten the cutter during operation
- Heavy-duty frame is designed to cut large diameter pipe
Reed 03270 Specifications
| Brand | Reed |
| Model | RC20X |
| Product Type | Rotary Pipe Cutter |
| Maximum Pipe/Tube Diameter | 572 mm |
| Minimum Pipe/Tube Diameter | 476 mm |
| Pipe Capacity | 20 - 22 in nominal |
| Pipe Capacity 2 | 476 - 572 mm actual O.D. |
| Pipe/Tube Material | Steel |
| Cutter Wheel | RCX |
| Application | Sch. 80 stainless / Sch. 40 steel 20 in |
| Overall Length | 106 in |
| Overall Width | 9.84 in |
| Overall Depth | 3.73 in |
| Product Weight | 38.96 lb |
| Shipping Weight | 94 lb |
| Country of Origin | United States |
Toolup Part # :
881259
