Reed 03271 Description

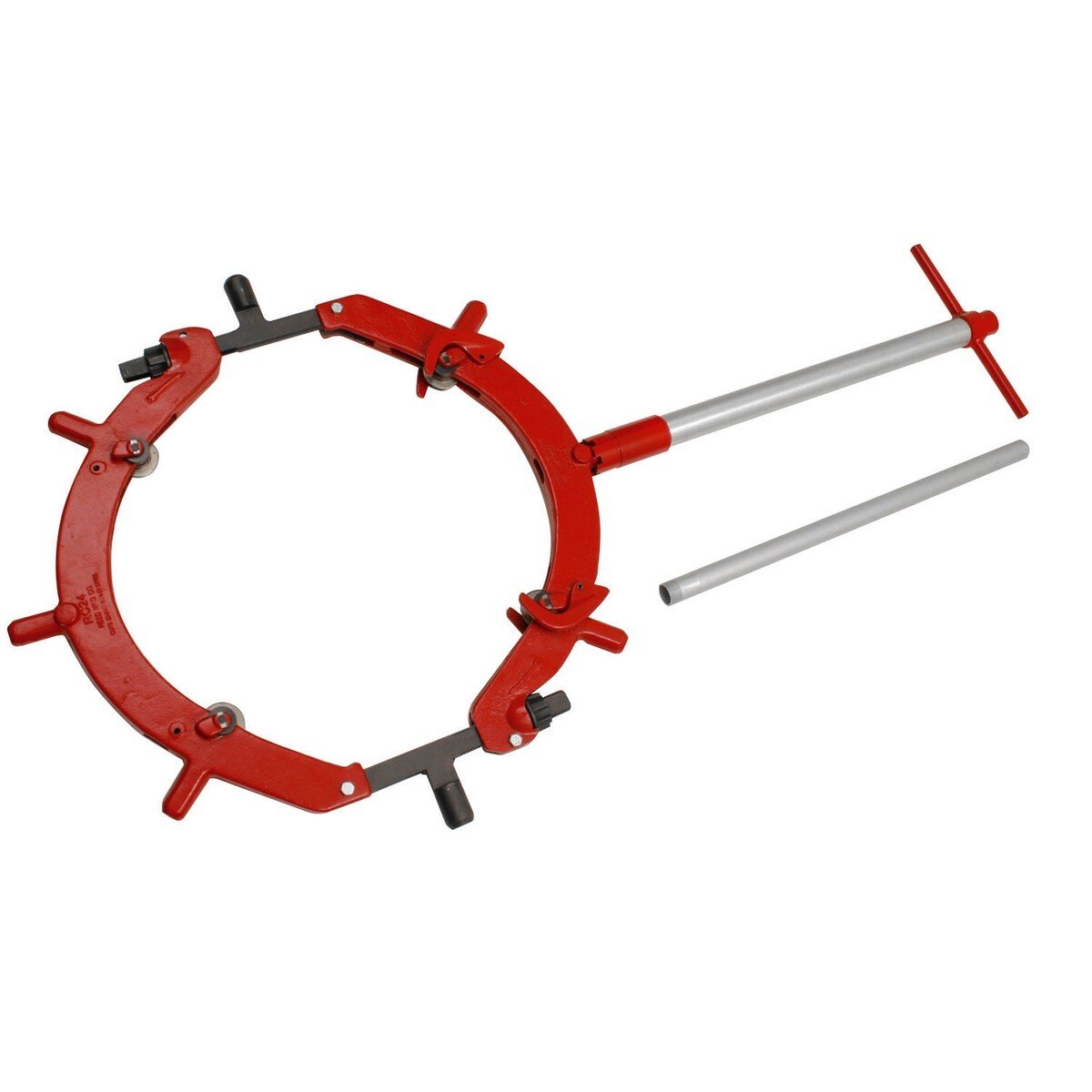

The Reed RC24X rotary pipe cutter is a heavy-duty manual tool built for cold cutting large diameter steel and stainless steel pipe. Its low-profile design works in close quarters, and the slip-on handle with RCX cutter wheel setup helps deliver square cuts on 24 in. to 26 in. nominal pipe.
Reed 03271 Includes
- (1) RC24X Rotary Pipe Cutter
- (1) Slip-On Handle
- (8) RC8-30XR Rollers
Reed 03271 Features
- Larger 0.800 in. 20.3 mm blade exposure on RCX cutter wheels helps penetrate thick steel, heavy wall steel, and stainless steel pipe walls
- One set of eight RC8-30XR rollers is installed on the cutter for use with RCX cutter wheels
- Pipe snaps off squarely once the operator completes the cut
- Excellent for cold cuts
- Designed to cut large diameter pipe
- Low profile design requires only 8 in. of clearance
Reed 03271 Specifications
| Product Type | Rotary Pipe Cutter |
| Model | RC24X |
| Maximum Pipe/Tube Diameter | 660 mm |
| Minimum Pipe/Tube Diameter | 584 mm |
| Pipe Capacity | 24 to 26 in nominal |
| Actual O.D. Pipe Capacity | 584 to 660 mm |
| Overall Length | 39 in |
| Overall Width | 36 in |
| Overall Depth | 5 in |
| Product Weight | 96 lb |
| Shipping Weight | 111 lb |
| Cutter Wheel | RCX |
| Application | Sch. 80 stainless and Sch. 40 steel 24 in; Sch. 80 stainless, Sch. 20 steel, and extra heavy steel 26 in |
| Country of Origin | United States |
Toolup Part # :
881155
