Reed 03403 Description

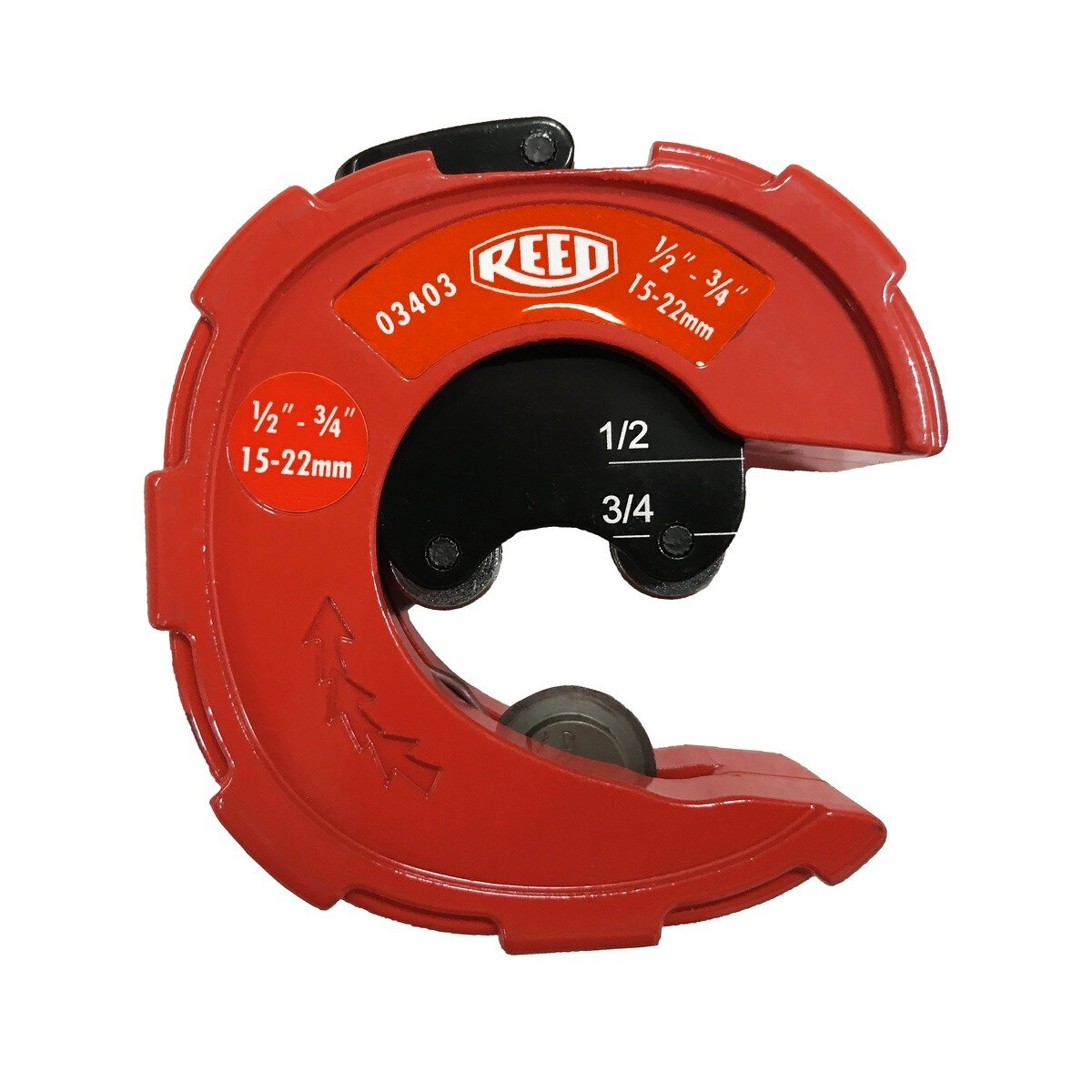

The Reed C Cutter delivers quick, clean cuts on 1/2 in. to 3/4 in. nominal copper tubing and CTS CPVC. Its compact C-shaped design snaps onto tubing and requires no handle swing space, while the spring-loaded cutter wheel self-feeds for consistent cutting pressure. Simply turn the cutter in the direction of the arrow for fast cutting in tight spaces.
Reed 03403 Includes
- (1) C Cutter
- (1) Hardened Steel Cutter Wheel
Reed 03403 Features
- Cuts 1/2 in. and 3/4 in. copper tubing with one adjustable cutter
- Combines low-clearance access with the adjustable size functionality of a traditional tubing cutter
- Twist the top handle to adjust for tubing size, including metric sizes
- Frame position marks simplify setup for popular 1/2 in. and 3/4 in. copper tubing
- Cuts Type K, L, and M copper plus CTS CPVC tubing
- Includes a USA-made hardened steel REED cutter wheel
- Compact C-shape requires no handle swing space
Reed 03403 Specifications
| Maximum Pipe/Tube Diameter | 3/4 in. |
| Minimum Pipe/Tube Diameter | 1/2 in. |
| Pipe Capacity | 1/2 - 3/4 in-nom. |
| Pipe Capacity 2 | 15 - 22 mm actual O.D. |
| Application | Copper, CPVC |
| Overall Length | 3 in. |
| Overall Width | 2-3/4 in. |
| Overall Depth | 2-1/2 in. |
| Product Weight | 0.35 lb |
| Shipping Weight | 1.35 lb |
| Country of Origin | Taiwan (R.O.C.) |
