Reed 04328 Description

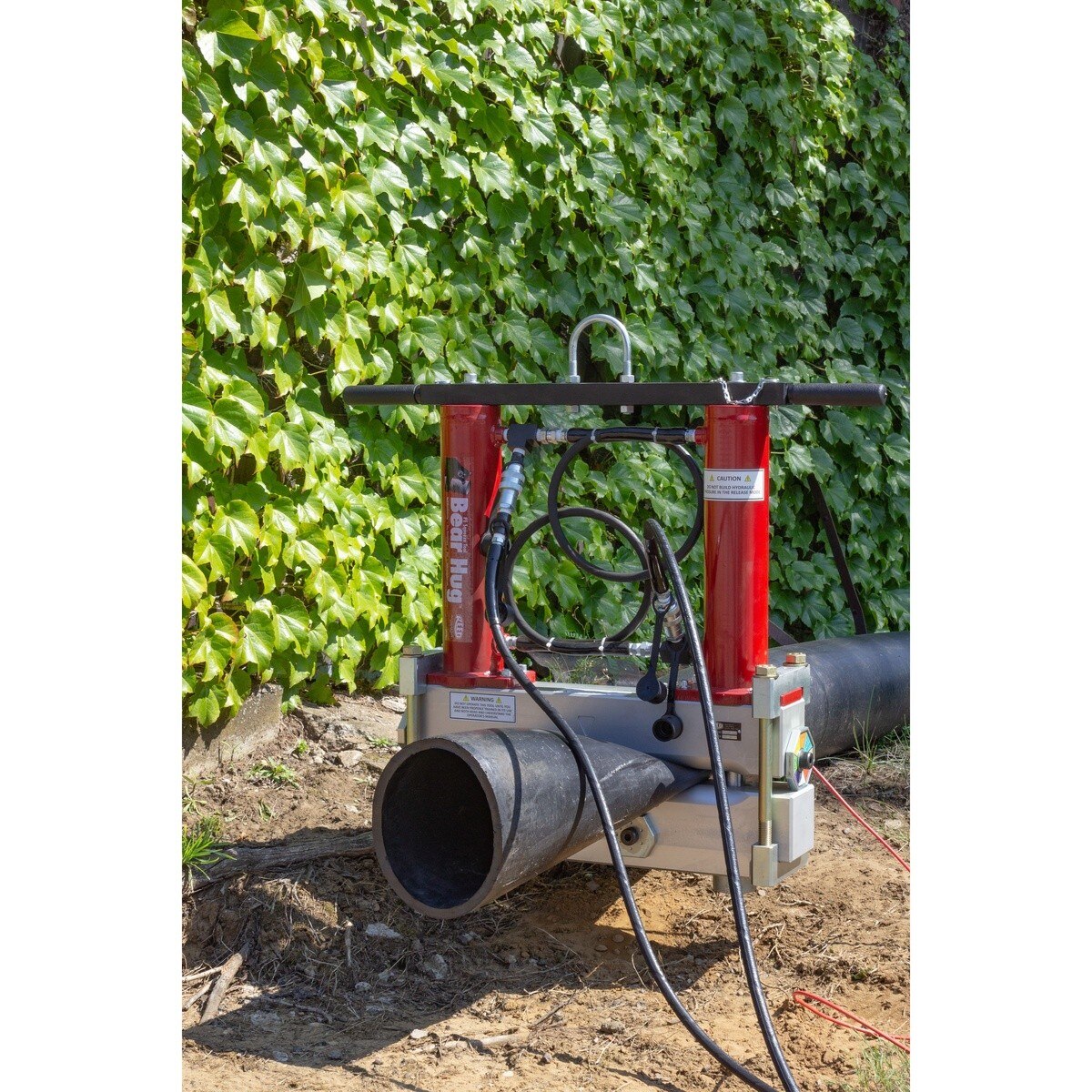

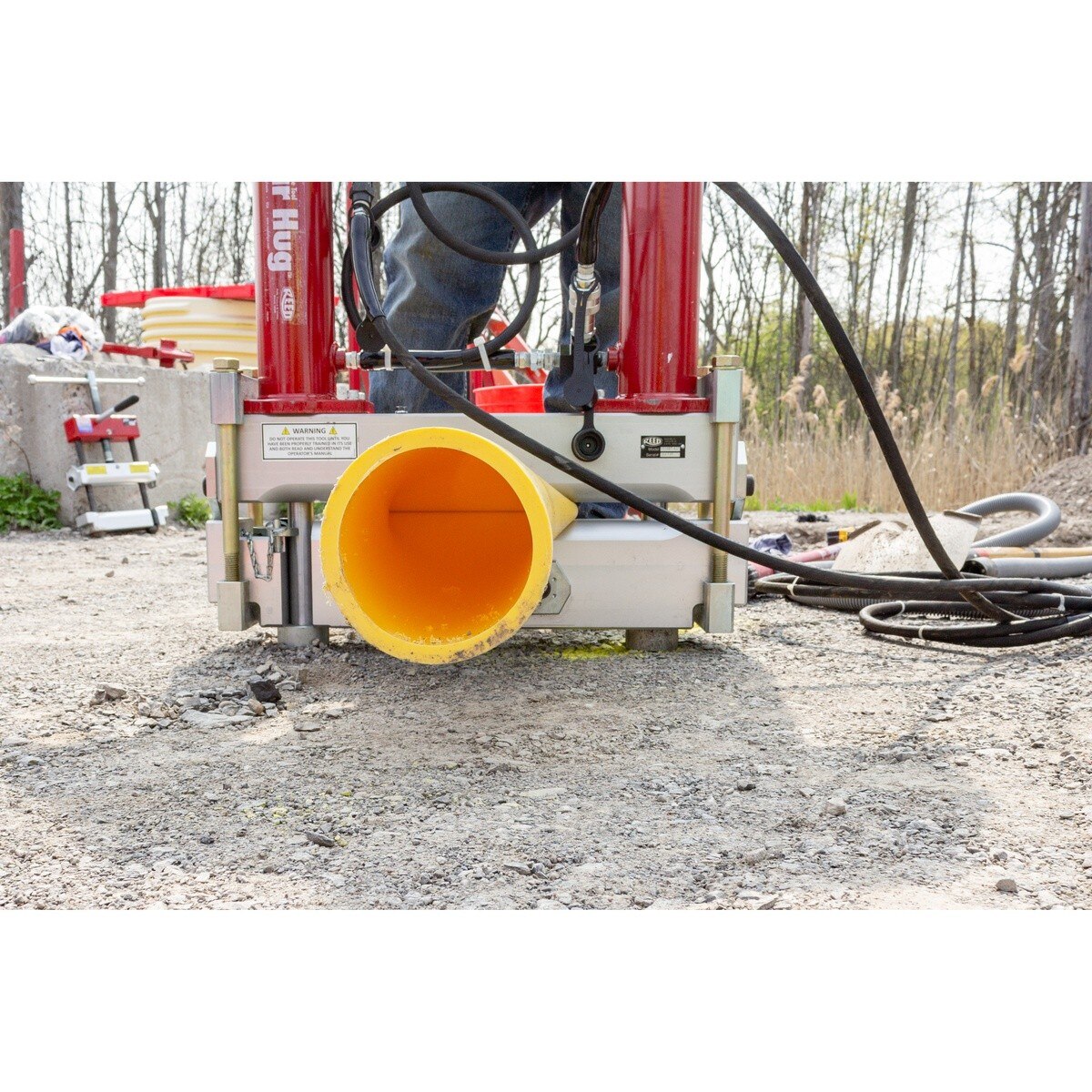

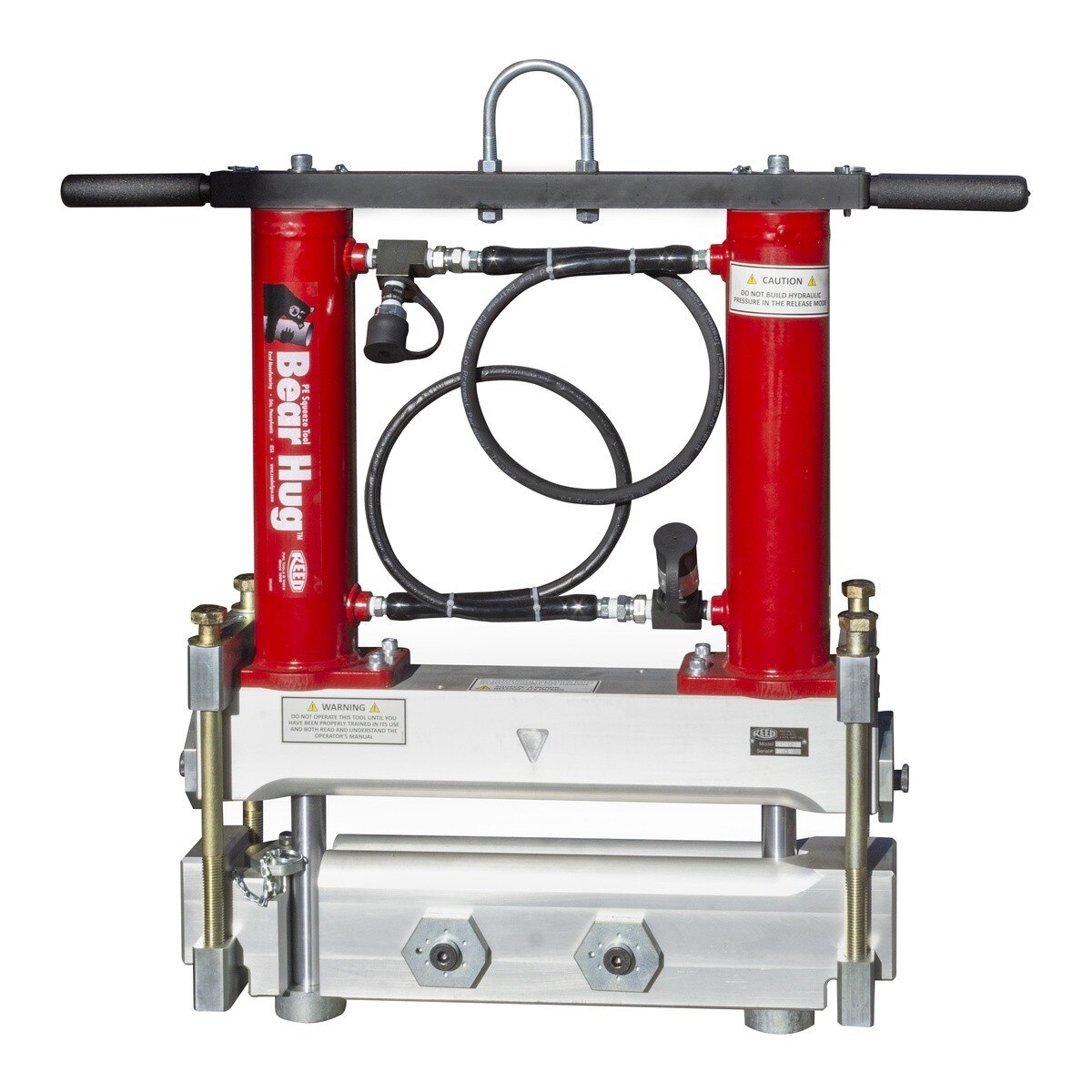

The Reed Bear Hug hydraulic PE squeeze tool base tool is designed for shut-off work on 3 in to 8 in nominal polyethylene pipe. This heavy-duty, double-acting tool delivers up to 83,400 lb of squeeze force and features a double bar configuration, swing-out bottom bar, and color-coded positive stops for confident, controlled operation. Base tool only; a compatible manual or air-over-hydraulic pump is required for use.
Reed 04328 Includes
- (1) Hydraulic PE Squeeze Tool Base Tool
- (1) Pair of 98390 Pipe/SDR Stops
- (1) Pair of 98391 Pipe/SDR Stops
Reed 04328 Features
- Heavy-duty hydraulic squeeze tool for 3 in to 8 in nominal PE pipe
- Delivers up to 83,400 lb of squeeze force for confident flow stoppage
- Double bar configuration provides a more secure double point squeeze
- Double-acting hydraulic system squeezes and releases without relying on internal springs
- Bottom swing-out bar with latch allows easy pipe enclosure in line
- Color-coded positive stops help prevent over-squeezing and reduce operator error
- Includes stops for common North American DR sizes plus SDR 9 coverage
- Base tool only and requires a compatible manual or air-over-hydraulic pump
- Removable carry handles reduce width when extra space is needed
- Attached saddle clamps remain with the tool to help prevent lost parts
Reed 04328 Specifications
| Series | Bear Hug |
| Product Type | Hydraulic PE Squeeze Tool Base Tool |
| Capacity | 3 to 8 in nominal |
| Overall Length | 33-1/2 in |
| Overall Width | 26-1/2 in |
| Overall Height | 14 in |
| Maximum Power | 10,000 psi |
| Tool Weight | 175 lb |
| Shipping Weight | 230 lb |
| Pipe/SDR Stops | 98390 and 98391, pair of each |
| Operation | Double-acting hydraulic |
| Pump Required | Yes |
| Standards | ASTM F1041 and ASTM F1563 |
| Country of Origin | United States |
Toolup Part # :
881361
