Reed 04330 Description

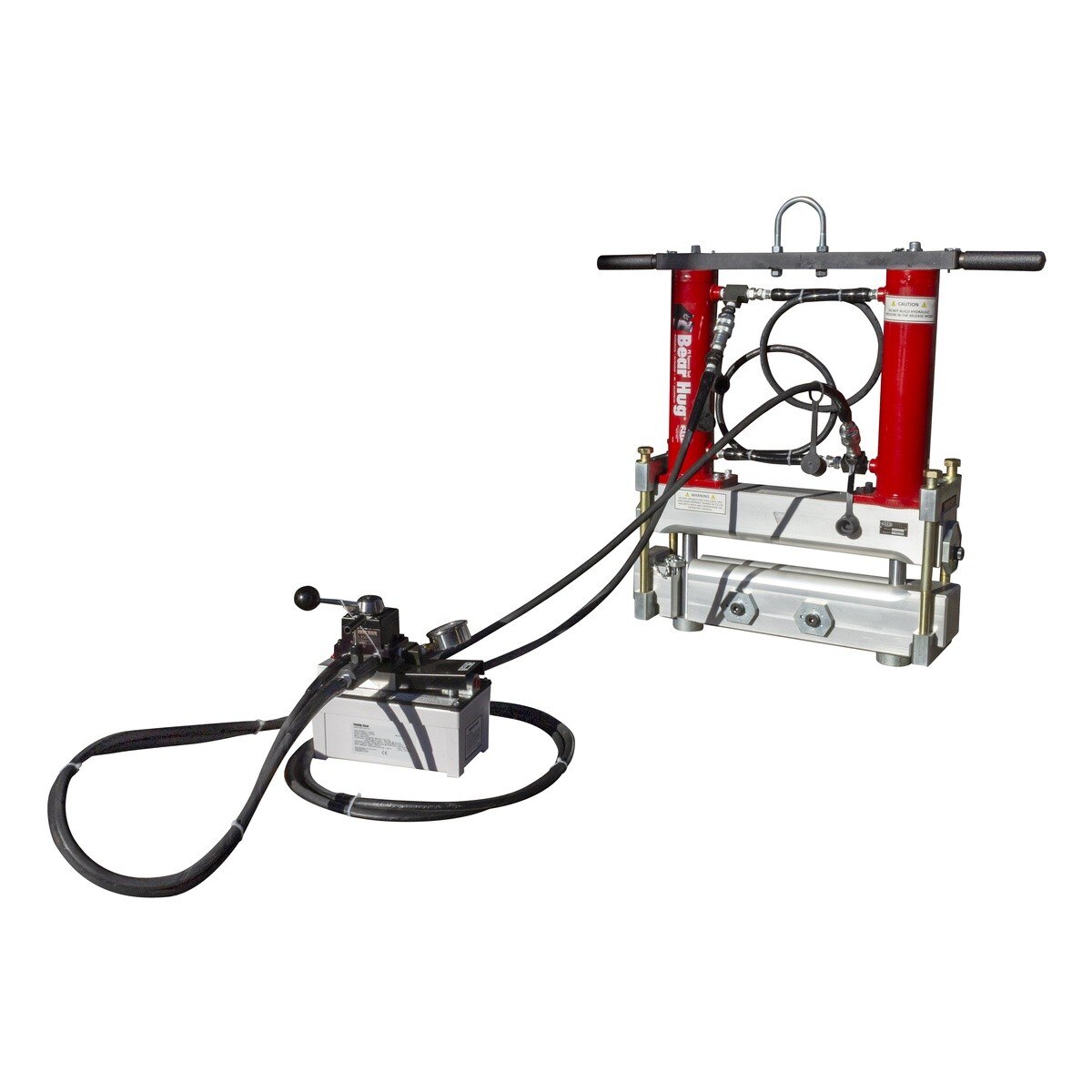

The Reed Bear Hug PESAPA is an air over hydraulic pump designed to operate REED PES8BT and PES8BTM PE squeeze tools. This pneumatic powered unit raises and lowers the squeeze bars with foot pedal control, includes a flow control valve for fine squeeze and release speeds, and uses a 12 ft hose so the pump can remain at ground level during operation.
Reed 04330 Includes
- (1) Air Over Hydraulic Pump
Reed 04330 Features
- Air over hydraulic pump for use with REED PES8BT and PES8BTM
- Pneumatic powered hydraulic pump raises and lowers the squeeze bars
- Foot pedal control offers convenient operation with minimal effort
- Flow control valve provides fine squeeze and release speed adjustment
- Requires an operator supplied air compressor with 20 CFM for standard speeds
- Required air pressure is 100 to 120 psi
- 12 ft hose allows the pump to be placed at ground level out of the ditch
- 1/4 in. NPT air inlet connects the air compressor and pump
- REED recommends use of the PESFRLA filter regulator lubricator with this pump
Reed 04330 Specifications
| Series | Bear Hug |
| Pump Type | Air Over Hydraulic |
| Compatible Models | PES8BT and PES8BTM |
| Overall Length | 16 in. |
| Overall Width | 15-1/2 in. |
| Overall Height | 10-3/4 in. |
| Product Weight | 30 lb |
| Shipping Weight | 35 lb |
| Hose Length | 12 ft |
| Air Inlet Thread | 1/4 in. NPT |
| Required Air Flow | 20 CFM |
| Required Air Pressure | 100 - 120 psi |
| Pump Rating | 10,000 psi |
| Country of Origin | United States |
