Reed 04338 Description

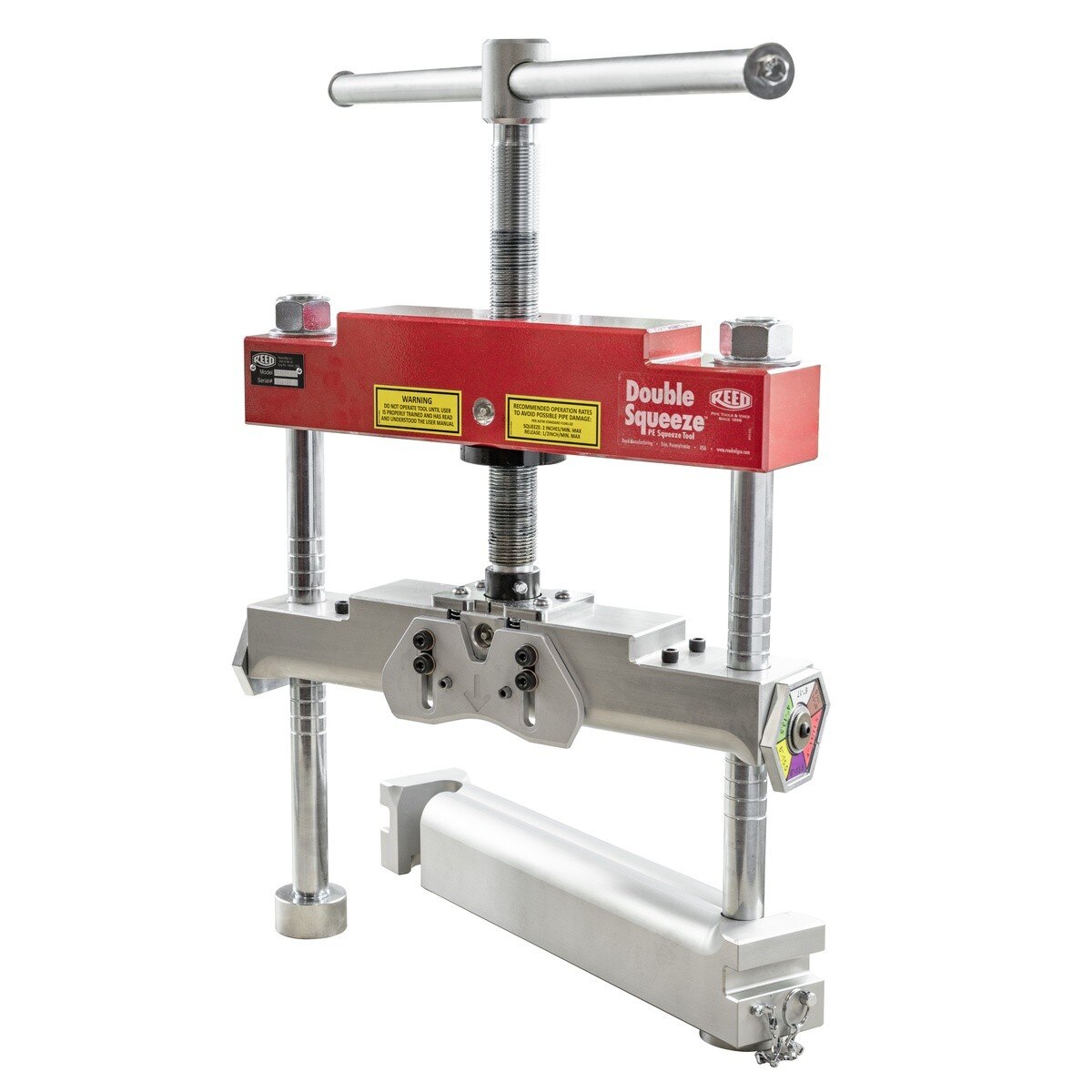

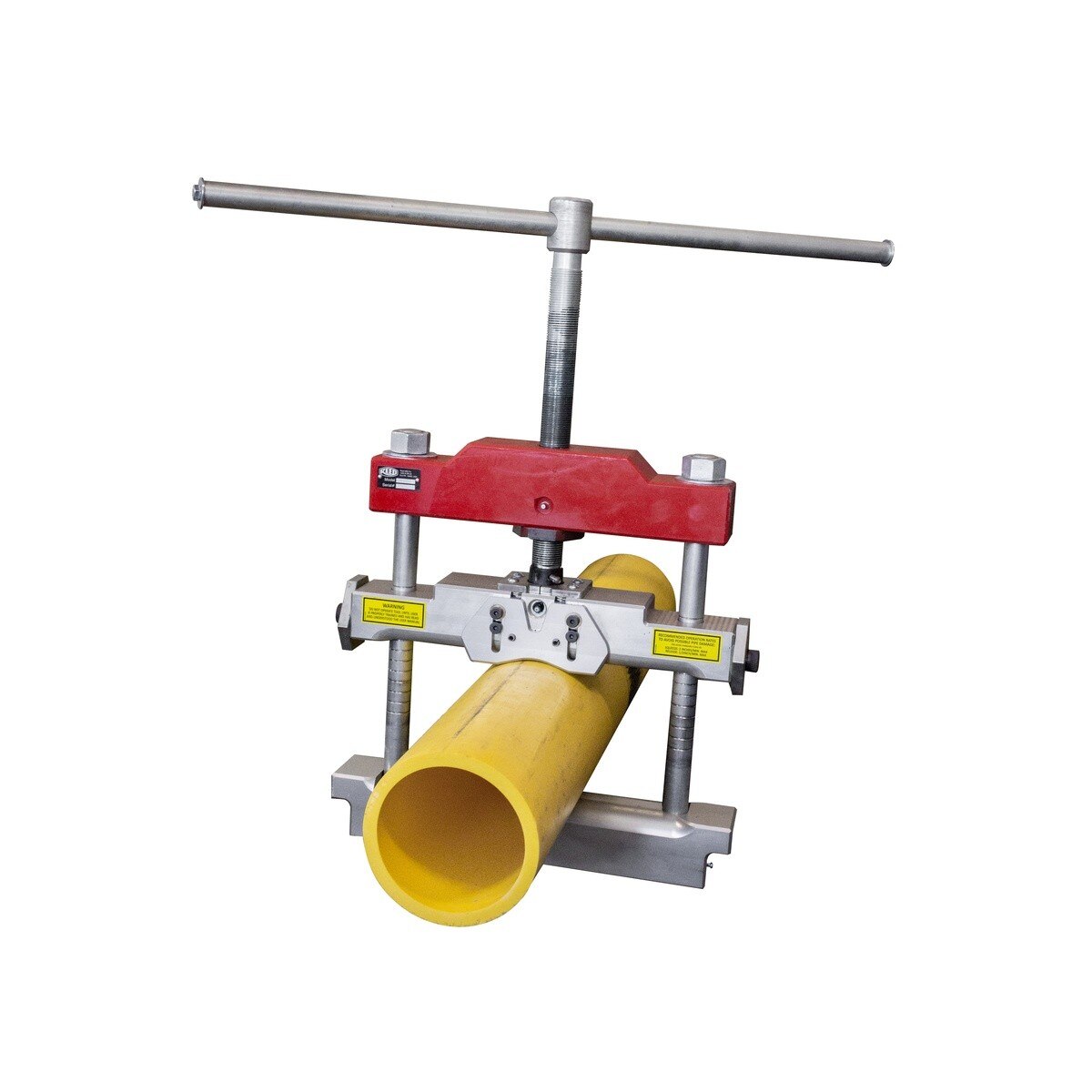

The Reed PE Double Squeeze manual squeeze tool is designed to stop flow in 3 to 6 in. nominal polyethylene pipe using a double bar design with two pinch points for confident shutoff. Sliding bar handles, a fine-pitched feed screw, positive stops, and aircraft-grade aluminum construction help provide smooth operation, easier handling, and added protection against over-clamping in the field.
Reed 04338 Includes
- (1) PE Double Squeeze Manual Squeeze Tool
Reed 04338 Features
- Squeezes up to 6 in. SDR 11 pipe with a double-bar design for optimal PE squeeze-off
- Spring-loaded centering aids help users center the tool on the pipe for safer operation
- Advanced ball bearing thrust design reduces the effort needed to achieve an effective shutoff
- Hand placement areas on the bottom bar make it easier to swing open the tool
- Color-coded stops make visual stop alignment simpler and improve operator confidence
- Removable bottom bar reduces carry weight for transport
- Aircraft-grade aluminum construction provides high strength with reduced overall weight
- Squeeze and release scale marks on the tie rods provide visual cues for correct opening and closing speed
Reed 04338 Specifications
| Brand | Reed |
| Product Type | PE Squeeze Tool |
| Operation | Manual |
| Series | Double Squeeze |
| Nominal Capacity | 3 - 6 in-nom. |
| Actual O.D. Capacity | 3.5 in. - 6.63 in. |
| Design | Double Bar |
| Pipe/SDR Stops | 98286 |
| Material | Aircraft-grade aluminum |
| Overall Length | 39 in. |
| Overall Width | 36 in. |
| Overall Height | 13 in. |
| Product Weight | 75 lb |
| Metric Weight | 34 kg |
| Country of Origin | United States |
| Standards | ASTM F1734, ASTM F1041, ASTM F1563, ISO 4437 |
Toolup Part # :
881239
