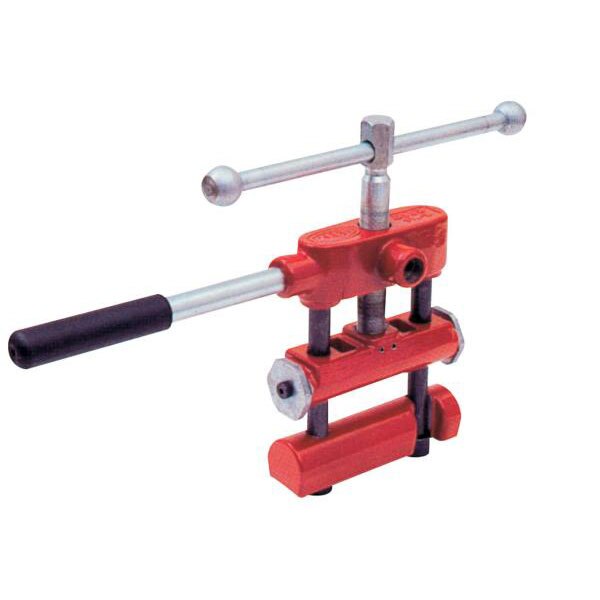

Reed 04703 PES2Metric With Metric Stops F/SDR 17 & 17.6

INCLUDES:
• (1) PES2 With Metric Stops F/SDR 17 & 17.6

FEATURES:
• Heavy-duty construction for use on metric pipe.
• Change the stops to use tool on other pipe types.
• Two-position handle for work location options.
• Fine thread for smooth squeeze from the operator.
• Grease fittings at friction points.
• Uses a pair of rotating stops to prevent damage to the pipe.
• Swing out arm to easily get tool around the pipe.
• Grounding Accessory and Static Discharge Alarm options.

SPECIFICATIONS:
• Actual O.D.: 20 - 63 mm
• Number of Stops: 6
• Stop [1]: 98124
• Length: 12" (305 mm)
• Weight: 11.6 lbs (5.3 kg)


Reed offers the best designed tools for stopping flow in ½" up to 8" PE pipe. Different models handle a wide range of pipe sizes and applications. Sliding bar handles make work in tight places easier and increase leverage for tightening. Fine-pitched thread on feed screw allows for a controlled, low-effort squeeze. Grease fittings at friction points make operation smoother and extend tool life. Aluminum bars are anodized or painted for protection from the elements. All PE squeeze-off tools use positive stops to prevent damage caused by over-clamping. Multiple size/SDR settings on one pair of stops provide quick, convenient over-squeeze protection for standard pipe sizes.

NOTE: Reed strongly recommends use of the PEGR Grounding Accessory (#04619) with PE Squeeze-Off Tools. Use a grounding accessory as a precaution against static build-up. Dissipate the charge and minimize the possibility of ignition.
