Description
Description
INCLUDES:
• (1) Universal Pipe Cutters
FEATURES:
• Must order REQUIRED blades SEPARATELY. Use Reed's Blade Chart for guidance.
• Pipe Diameter: 6" - 48"
• Gross Weight: 138 lbs
• Application: Cast/Ductile Iron, Clay, Concrete, CPVC, PE, PVC Sch. 40, PVC C900 & C905, Steel Sch. 40
• Heaviest cutter component only 28 lbs/13 kg. Weights given include all items and steel toolbox.

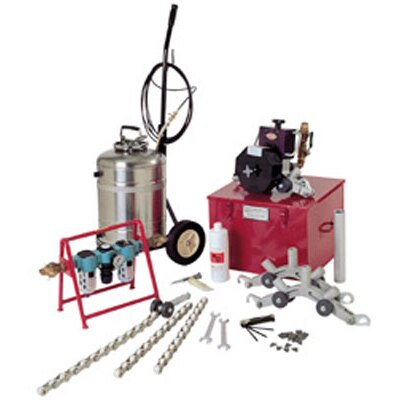

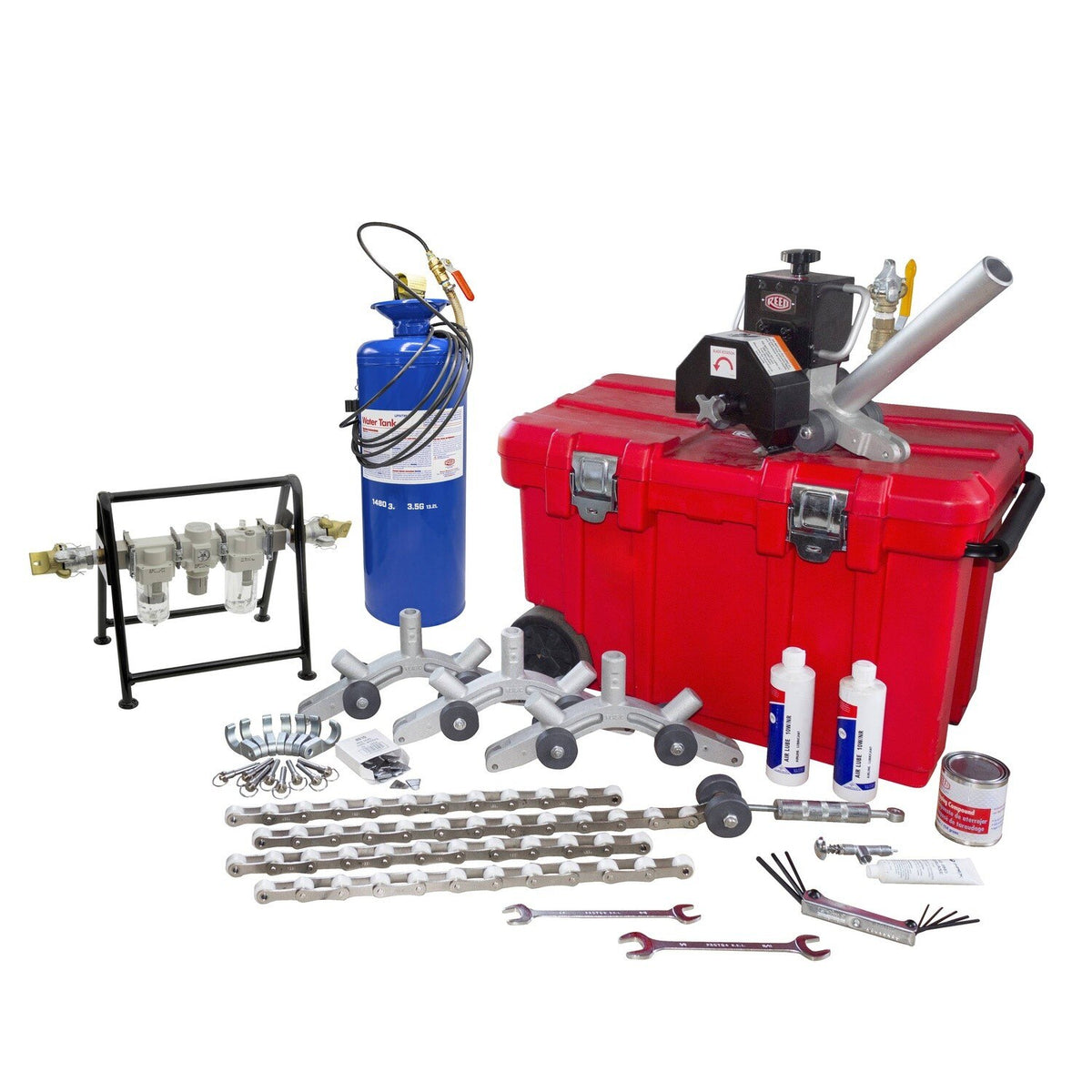

Lightweight, easy-to-use Universal Pipe Cutters (UPC) are available to cut 6" - 48" nominal diameter (150-1300 mm actual O.D.) ductile iron, cast iron, clay, concrete, steel, PVC, or PE pipe. NOTE: When cutting steel pipe with the steel blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts. Reed Universal Pipe Cutters are pneumatic powered. The lower cost UPC616A uses the same motor as the others, but does not need connecting frames. The UPC616 is shipped in a steel toolbox with a three-gallon, formed-steel water tank. The UPC636A and UPC648A UPCs come in a steel toolbox with a 6-gallon, stainless steel water tank and cart.
Universal Pipe Cutter Power Requirements:
•Maximum R.P.M.: 3675
•Air Consumption: 50 cu. ft./min (1.4 cu. m/min.)
•Pressure: 90 P.S.I. Maximum (6 BAR)
•Shut-Off: 3/4" Ball Valve
•Air Supply Fittings: 3/4" Dixon "Air King" Coupling
UPC motor reconditioning/refurbishing is available. Please send motor “freight prepaid" to our factory. Reed will handle forwarding to appropriate manufacturer. Hydraulic motor repairs are priced on a case by case basis; pneumatic motor repairs are flat rate. Complete UPC cutters can also be reconditioned / refurbished. UPC cutters should arrive freight prepaid at our factory. Quotes will be issued upon inspection of the unit and labor charges apply. Call 800-666-3691 for a return authorization number.
• (1) Universal Pipe Cutters
FEATURES:
• Must order REQUIRED blades SEPARATELY. Use Reed's Blade Chart for guidance.
• Pipe Diameter: 6" - 48"
• Gross Weight: 138 lbs
• Application: Cast/Ductile Iron, Clay, Concrete, CPVC, PE, PVC Sch. 40, PVC C900 & C905, Steel Sch. 40
• Heaviest cutter component only 28 lbs/13 kg. Weights given include all items and steel toolbox.
Lightweight, easy-to-use Universal Pipe Cutters (UPC) are available to cut 6" - 48" nominal diameter (150-1300 mm actual O.D.) ductile iron, cast iron, clay, concrete, steel, PVC, or PE pipe. NOTE: When cutting steel pipe with the steel blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts. Reed Universal Pipe Cutters are pneumatic powered. The lower cost UPC616A uses the same motor as the others, but does not need connecting frames. The UPC616 is shipped in a steel toolbox with a three-gallon, formed-steel water tank. The UPC636A and UPC648A UPCs come in a steel toolbox with a 6-gallon, stainless steel water tank and cart.
Universal Pipe Cutter Power Requirements:
•Maximum R.P.M.: 3675
•Air Consumption: 50 cu. ft./min (1.4 cu. m/min.)
•Pressure: 90 P.S.I. Maximum (6 BAR)
•Shut-Off: 3/4" Ball Valve
•Air Supply Fittings: 3/4" Dixon "Air King" Coupling
UPC motor reconditioning/refurbishing is available. Please send motor “freight prepaid" to our factory. Reed will handle forwarding to appropriate manufacturer. Hydraulic motor repairs are priced on a case by case basis; pneumatic motor repairs are flat rate. Complete UPC cutters can also be reconditioned / refurbished. UPC cutters should arrive freight prepaid at our factory. Quotes will be issued upon inspection of the unit and labor charges apply. Call 800-666-3691 for a return authorization number.
Toolup Part # :
77039
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
