Ridgid  |  SKU: 49298  |  Barcode: 095691492982

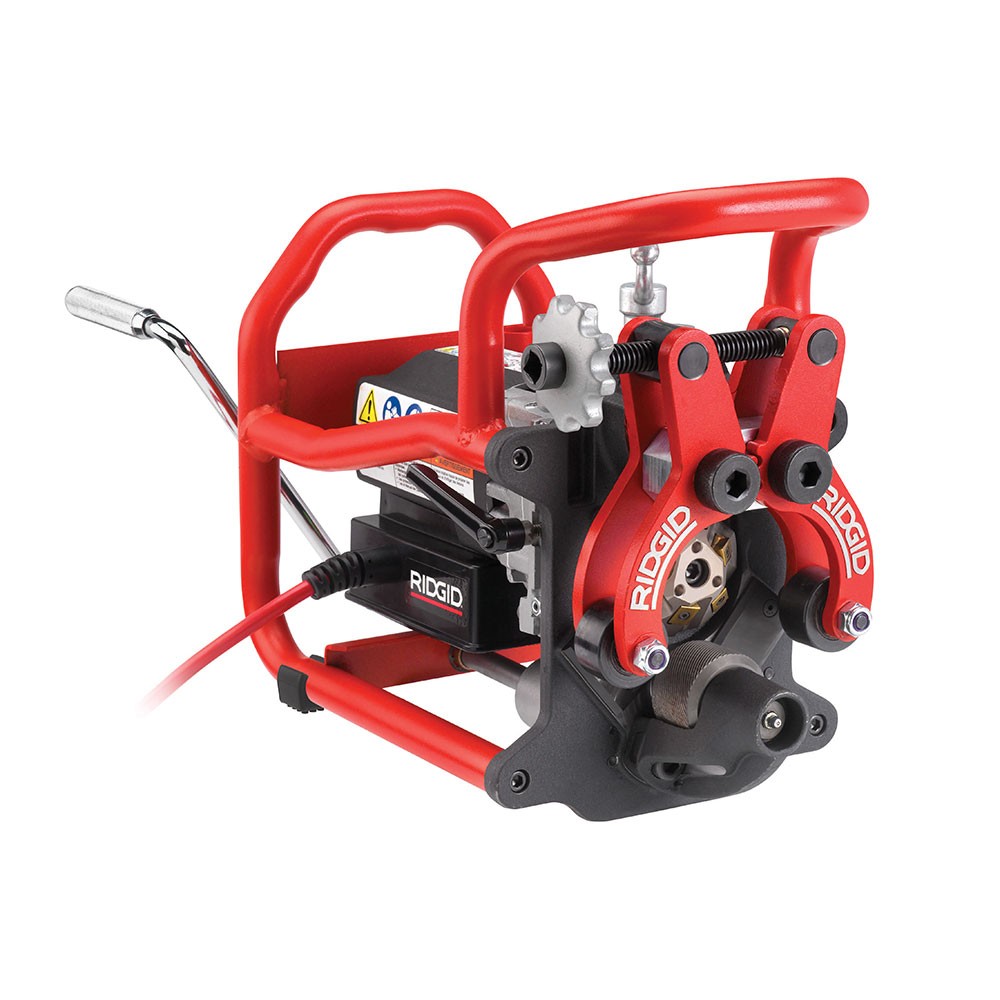

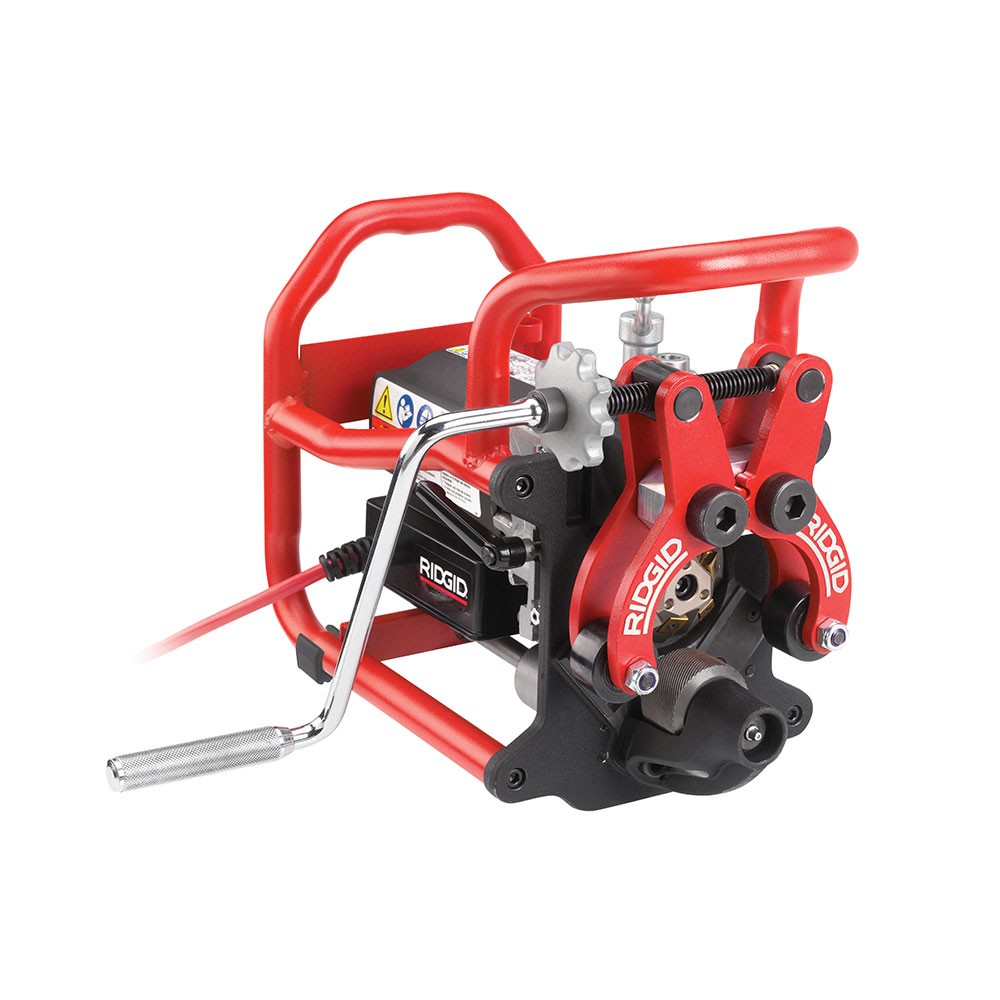

RIDGID 49298 B-500 Portable Pipe Beveller With 37-1/2 Degree Cutter Head

Rated 2 out of 5
Read 1 Reviewor
Free Shipping
$4,248.48 $4,874.90
 More payment options

Description

Ridgid 49298 Description

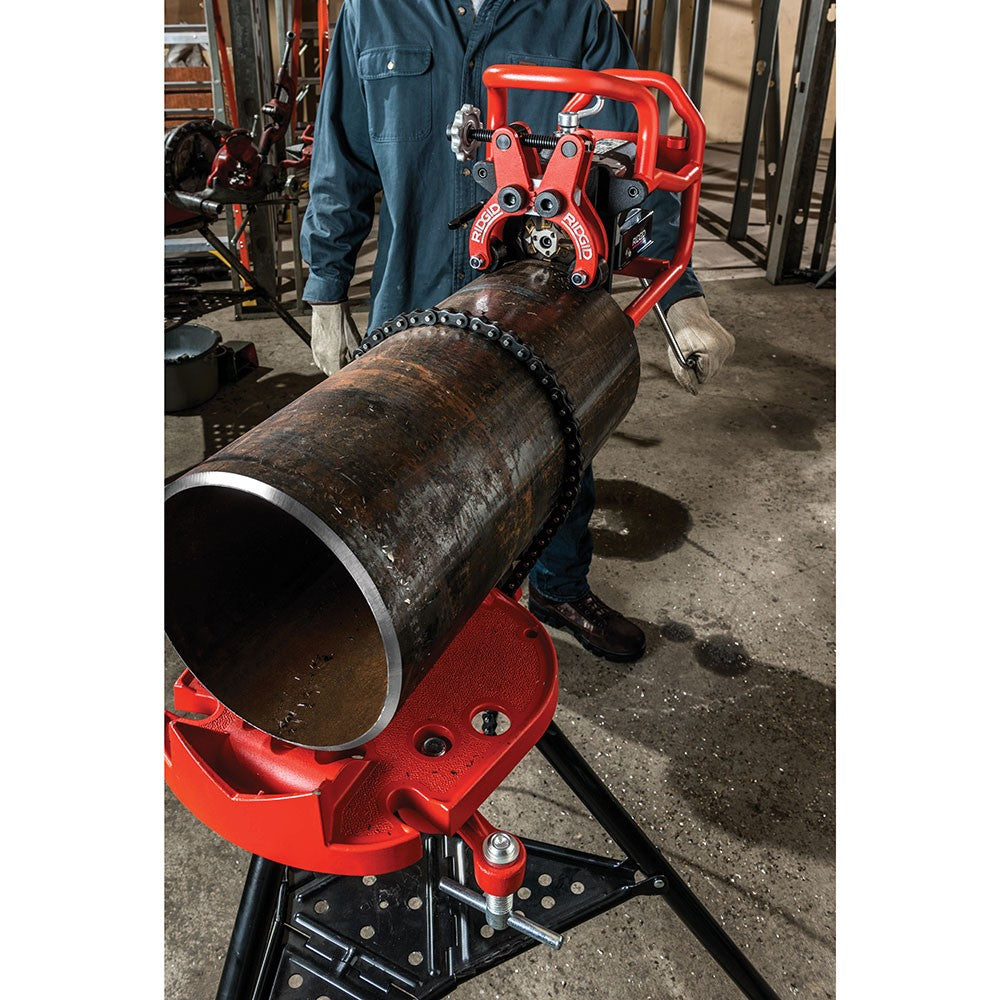

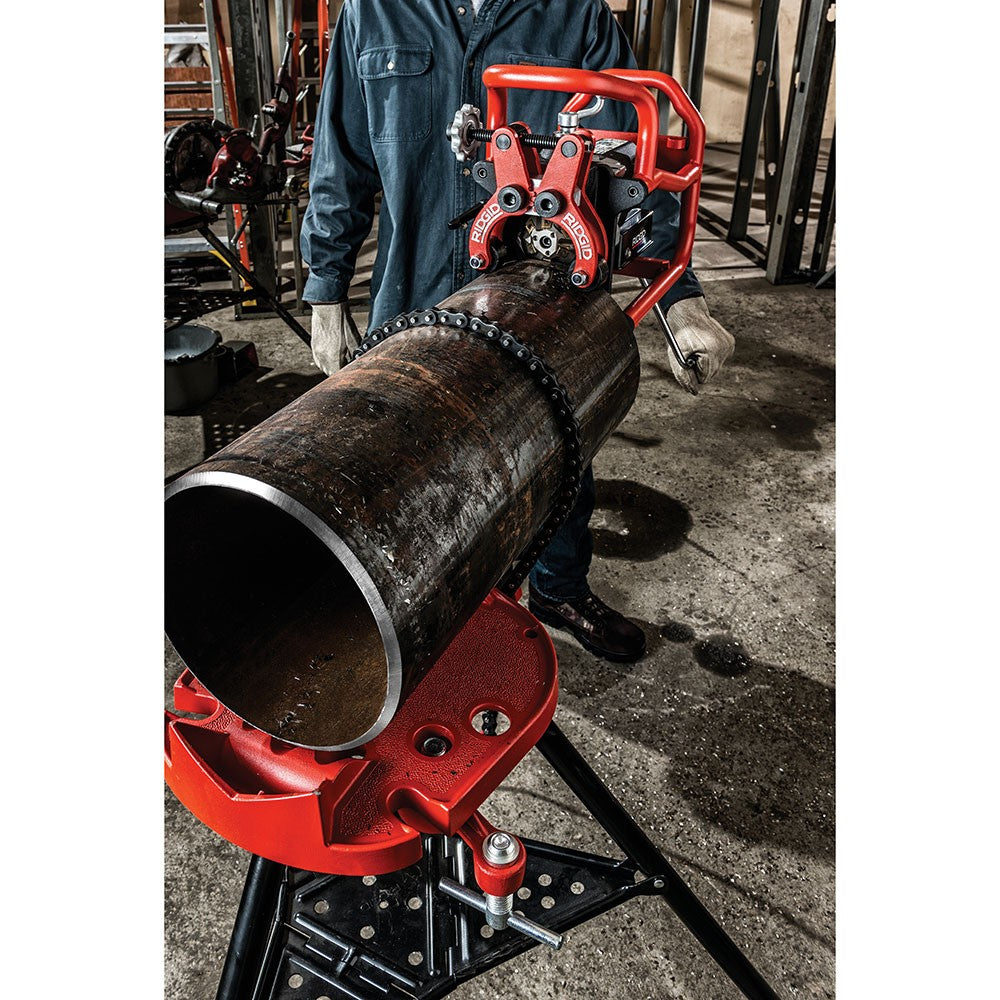

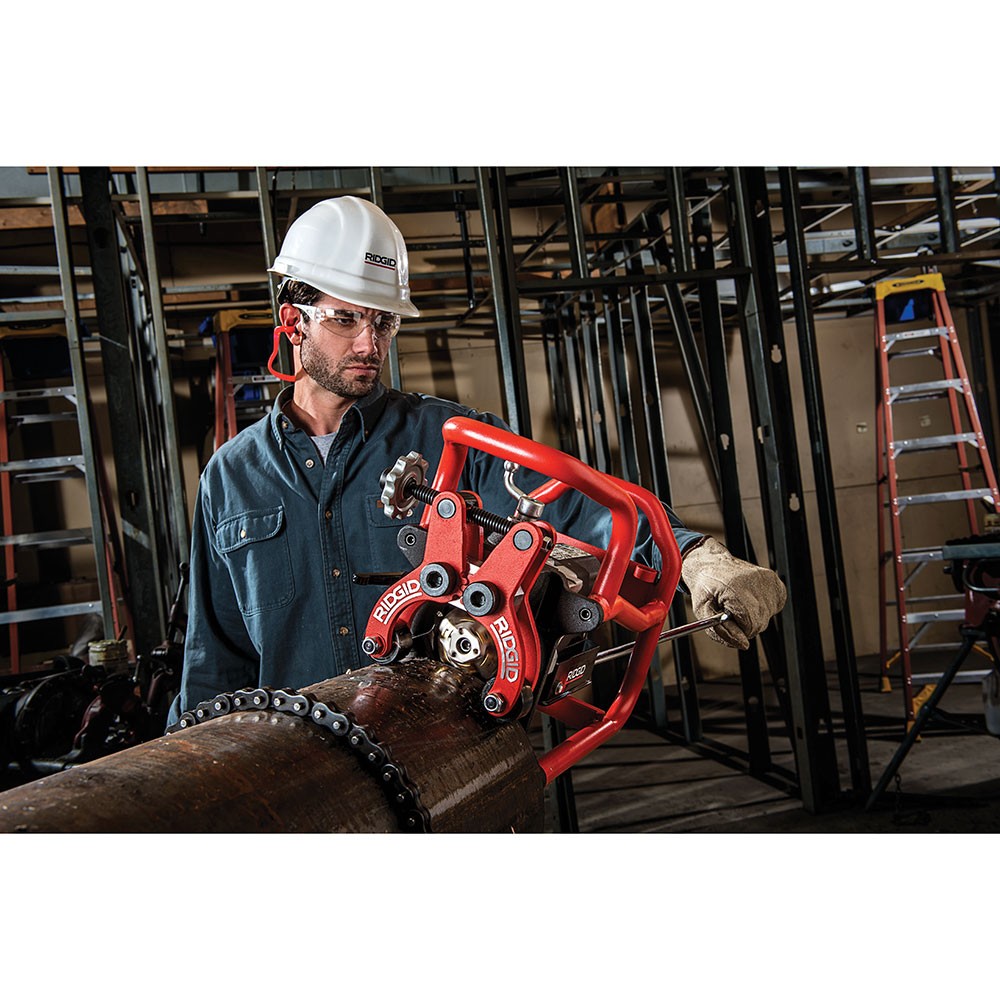

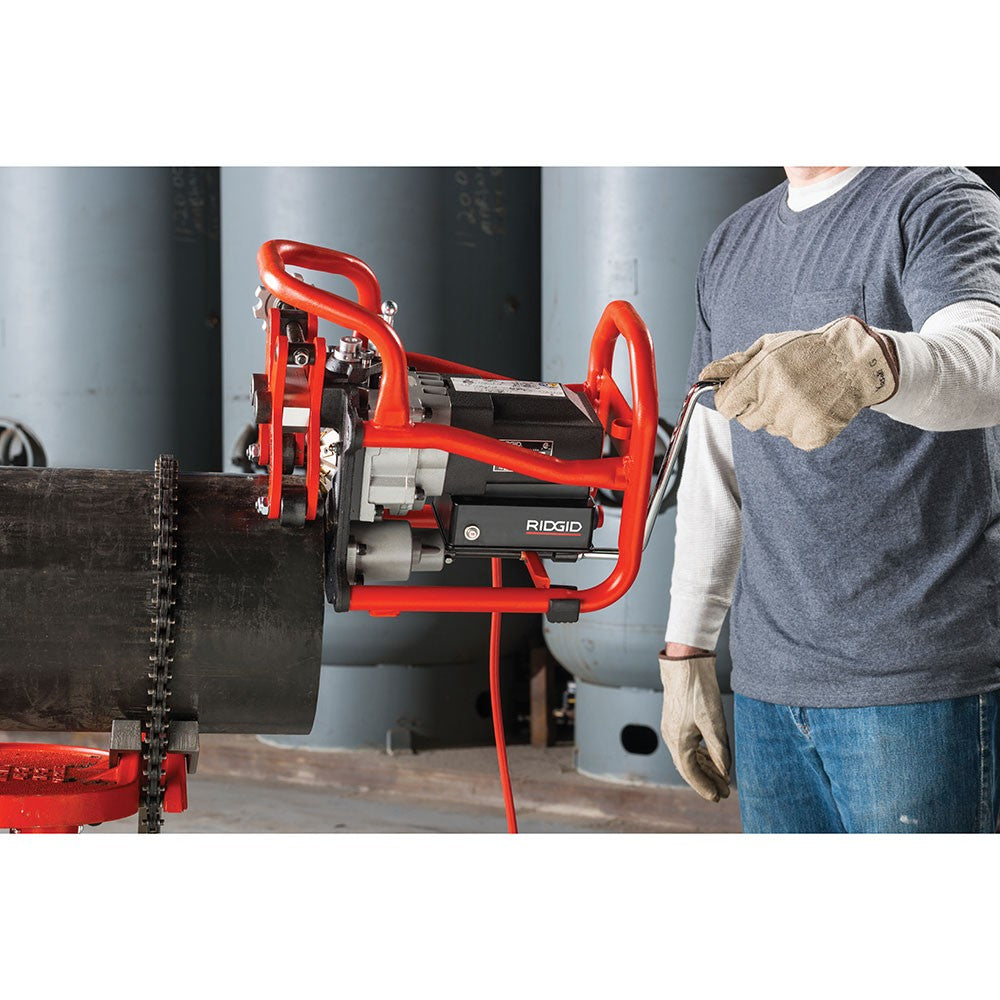

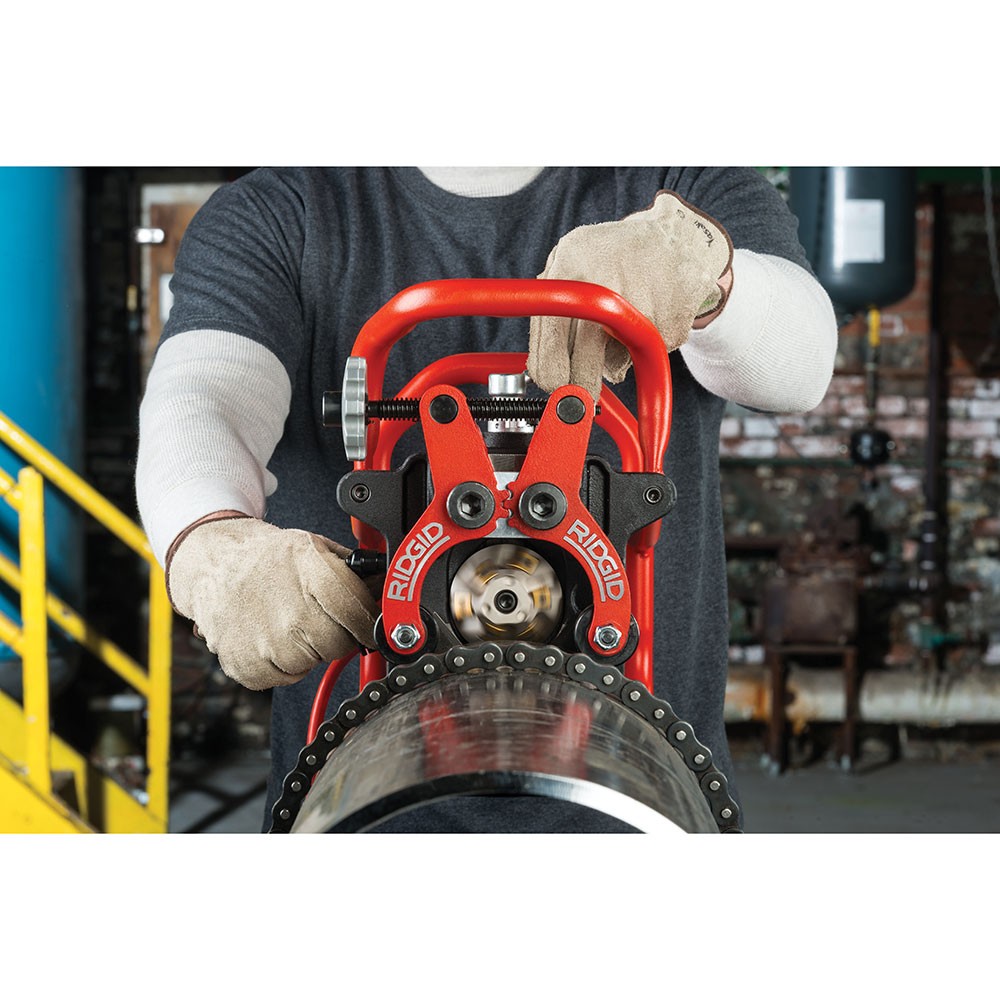

The B-500 Transportable Pipe Beveller produces high quality bevels in less than two minutes without flames or sparks. The compact design quickly mounts to pipe 4” and up with a maximum wall thickness of 1/2”, and creates consistent bevels in a single pass.

Ridgid 49298 Features

  • Set-up And Bevel 12" Diameter Schedule 40 Pipe In Under 2 Minutes!
  • Pipe Is Cool To Touch Immediately Following Bevelling
  • Accurate Bevel Angle Around Diameter Of The Pipe Allows For Optimal Number Of Cover Passes
  • Adjustable Land Width From 0" to 3/16" To Fit Welders’ Requirements
  • Produces A Machined Finish Due To 6 Replaceable Cutter Inserts Working Simultaneously
  • Fast To Set-up And Operate

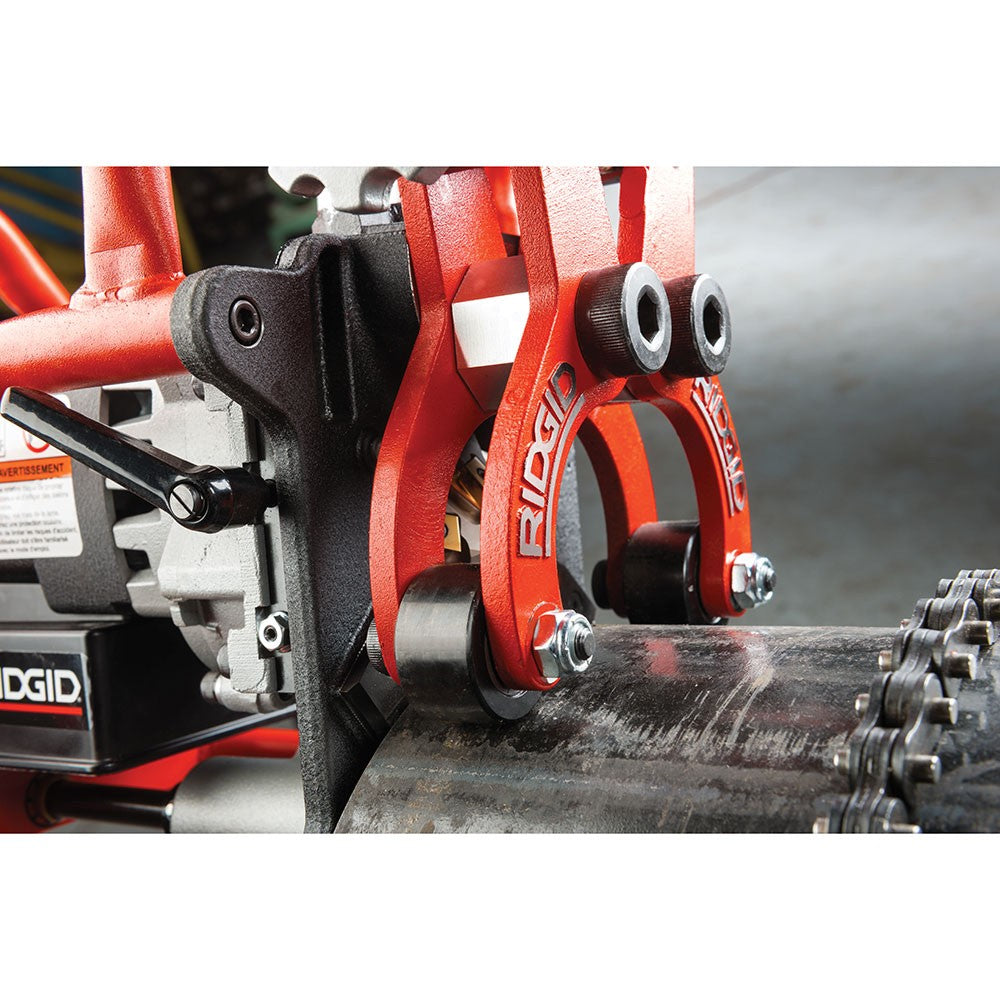

  • Patent-Pending Clamp System Firmly Secures Tool To The Pipe
  • Speed Monitoring With LED Indicators For Optimal Cutter Performance
  • Spark Free Operation

Ridgid 49298 Specifications

Capacity 4" Pipe and Larger, Flat Plate
Pipe Wall/Plate Thickness Min 0.188 (4.8 mm)/Max 0.50 (12.7 mm)
Bevel Angles 37.5 Degree (Standard - Included); 30 Degrees and 45 Degrees (with Optional Cutter Heads)
Cutter Head Rated for Most & Stainless Steel
Weight 52.5lbs (23.8 kg) Tool Weight
Size 15.8 in. (401 mm) L x 11.5in (292 mm) W x 13.3in (338 mm) H
Land Width 0" - 3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments
Motor Type Universal Single Phase
Motor Rating 1.2 HP, 115V, 50/60Hz
Amps 13A (115V)
Operating Speed (No Load) 950 RPM (115V)
Body Steel Frame
Standard Equipment Beveller, Manual Crank Handle, 37 1/2° Cutter Head, 6 – 4 Edged Inserts, Torque Driver, and Screws
