Ridgid | SKU:
66947
Ridgid 66947 Model 300 Compact Threading Machine
Free Shipping
$6,321.86
$7,435.30
Unit price
/
Unavailable
Description
Description
Ridgid 66947 Description

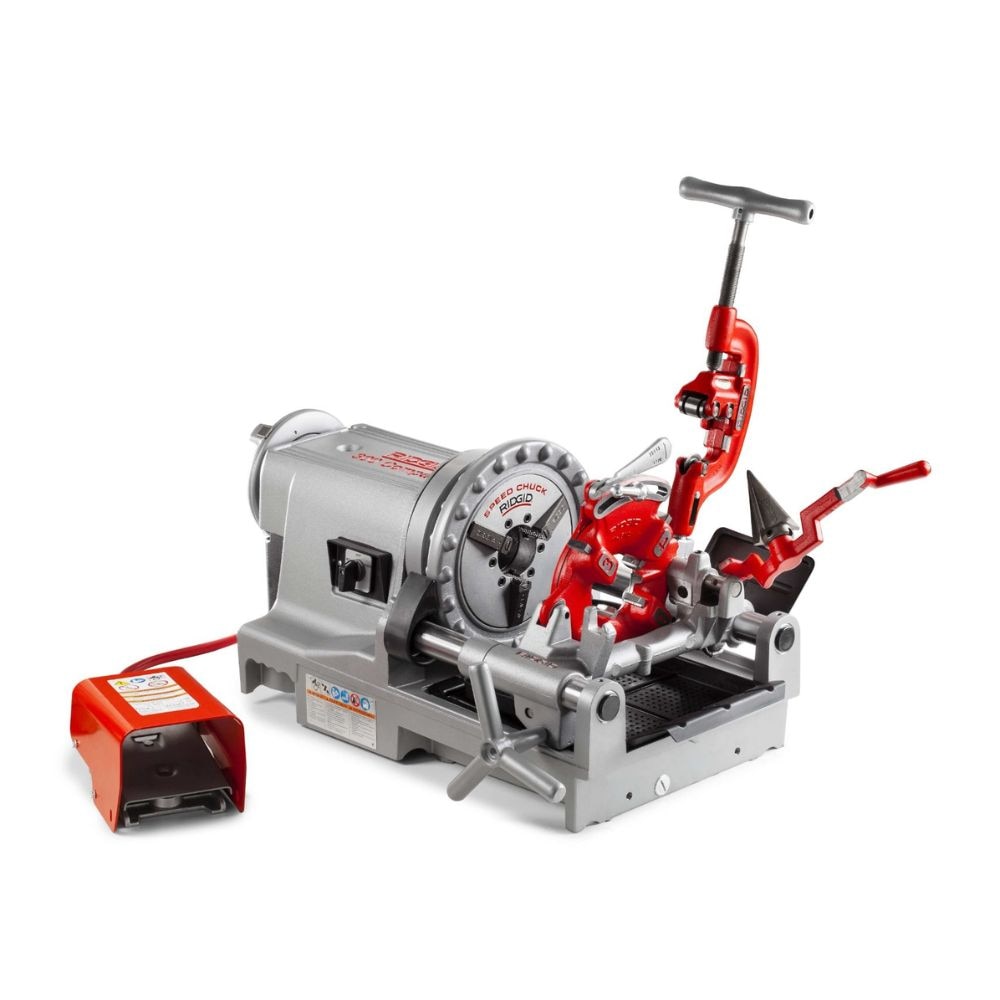

A proven workhorse for service trucks, in-house maintenance crews or anywhere portability and versatility are a must. The RIDGID 300 Power Drive COMPACT delivers what you need to cut, ream and thread pipe quickly, cleanly and easily. Total system includes a 300 Compact Threading Machine that spins at 38 RPMs as well as the tools required to thread ½ to 2-inch diameter pipe. Model 250 stand sold separately.
Ridgid 66947 Includes
- (1) Threading Machine
- (1) Nu-Clear Thread Cutting Oil
- (1) 811A 1/8" – 2" NPT Die Head, Quick-Opening, RH
- (1) Reamer, Model 344
- (1) 360 Cutter Assembly
- (1) 1/2" - 3/4" Universal Alloy Die Set
- (1) 1" - 2" Universal Alloy Die Set
- (1) 3/16" Hex Key
- (1) 5/32" Hex Key
- (1) 5/16" Hex Key
Ridgid 66947 Features
- Lightweight portable designed for fast transport and set up.
- Built-in oiling system with adjustable flow control for ideal threading performance.
- Transmission and covers are designed to reduce noise.
- Versitle for threading or roll grooving.
- Hammer type chuck to quickly secure the workpiece
- Quiet operation.
Ridgid 66947 Specifications
| Pipe Capacity | 1/8" - 2" (3mm-50mm) |
| Bolt Capacity | 1/4" - 2" (6mm-50mm) |
| Motor Control | Heavy-Duty Rotary Forward/Off/Reverse and Integral Foot Switch |
| Chuck | Hammer-Type with Replaceable, Rocker-Action Jaw Inserts |
| Oiling System | Through-the-Head, with Integral Oil Reservoir with Self-Priming, Constant-Flow, Gerotor Pump |
| Die Head | 811A 0.13 to 2" (3 to 50 mm) |
| Speed | 36 RPM |
| Voltage | 115V |
| Frequency | 50 to 60 Hz |
| Phase | 1 |
| Motor | 0.5 HP Universal |
| Draw | 15A |
| Hex Key Size | 0.19" (0.48 cm), 0.16" (0.4 cm), 0.31" (0.8 cm) |
| Included Die Set | 0.5 to 0.75" (6 to 19.1 mm), 1 to 2" (25.4 to 50 mm) |
