Ridgid | SKU:
72023

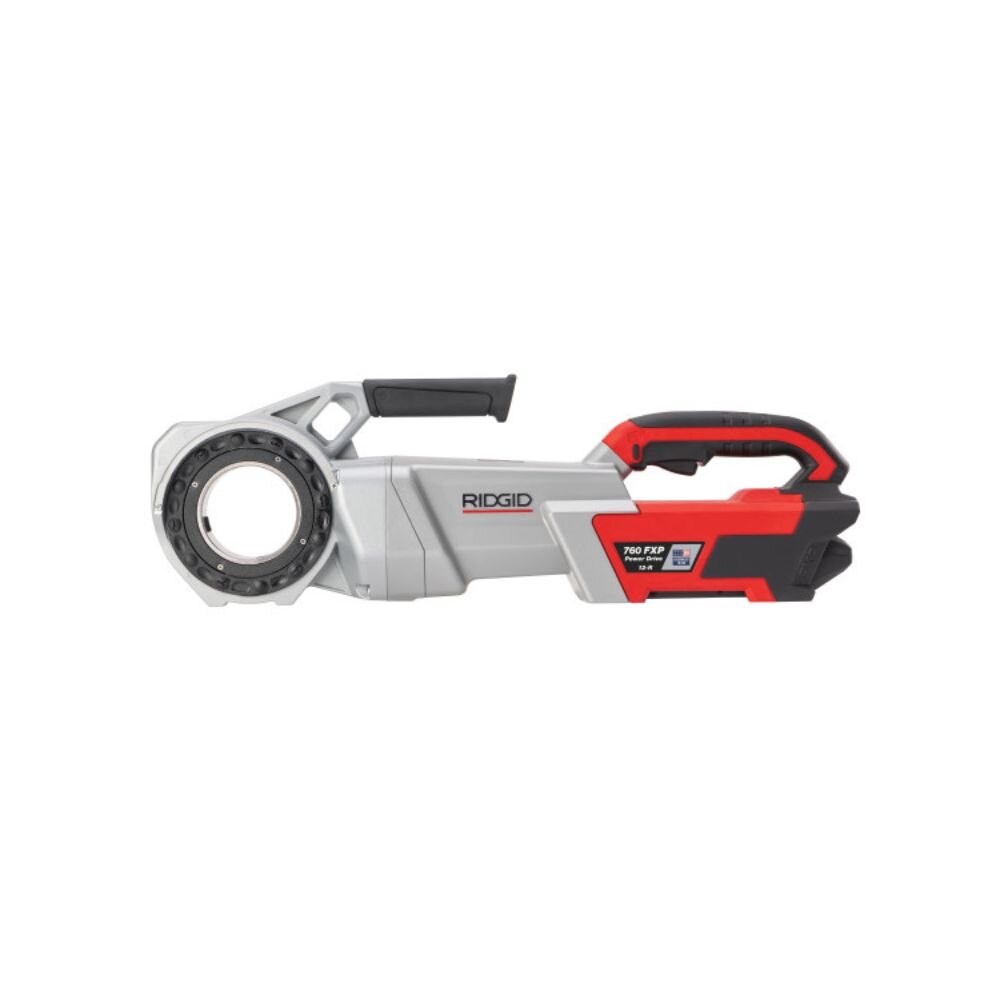

Ridgid 72023 760 FXP Power Drive (12-R), 2x 4Ah FXP Batteries, FXP Charger, 1/2-2" 12-R NPT Die Head Set, Support Arm, Case
$0.00 off
Free Shipping
See Price In Cart
Unit price
/
Unavailable
Description
Description

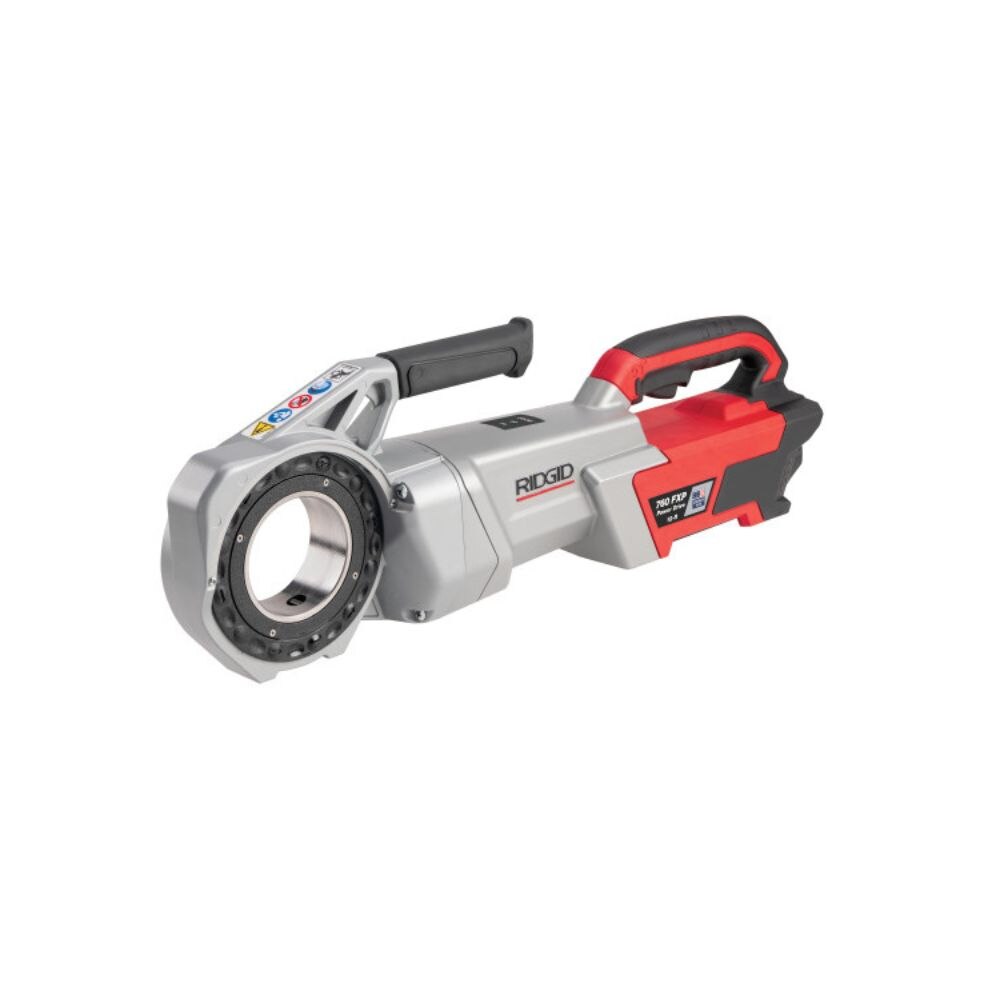

Ridgid 72023 Description

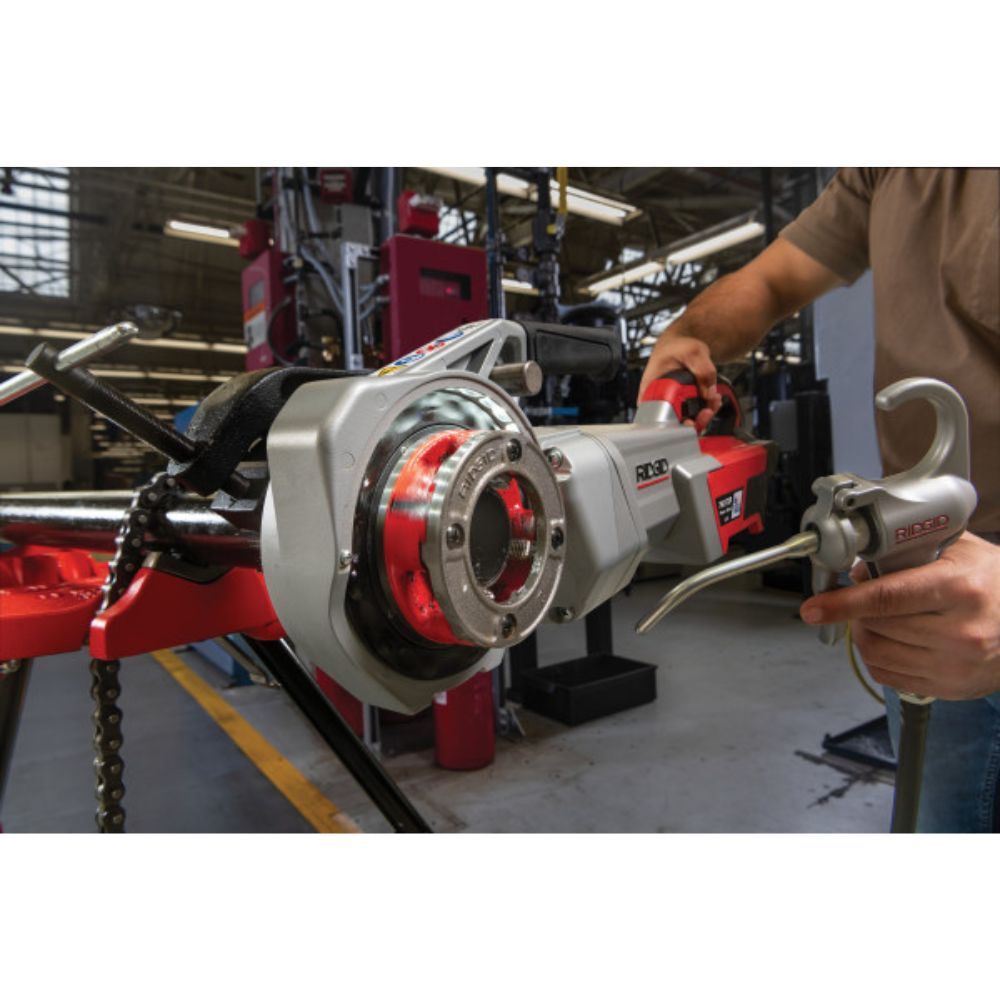

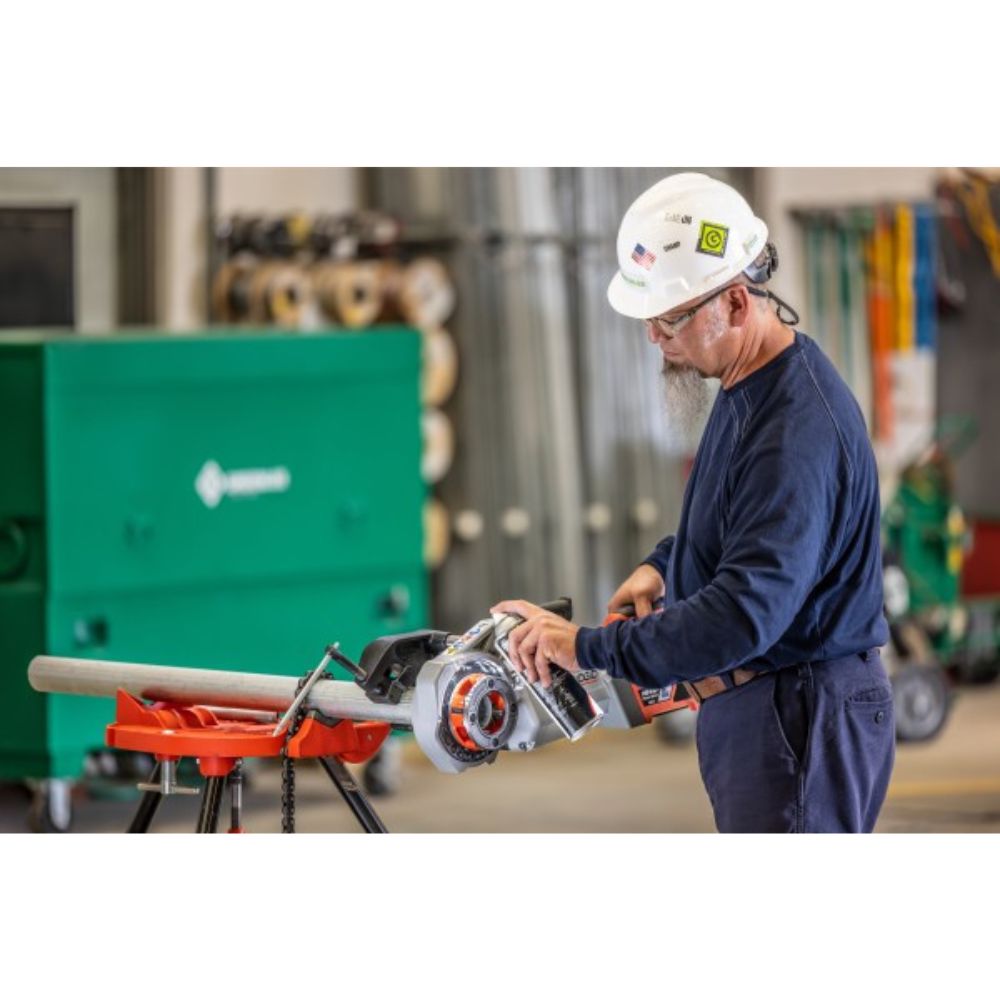

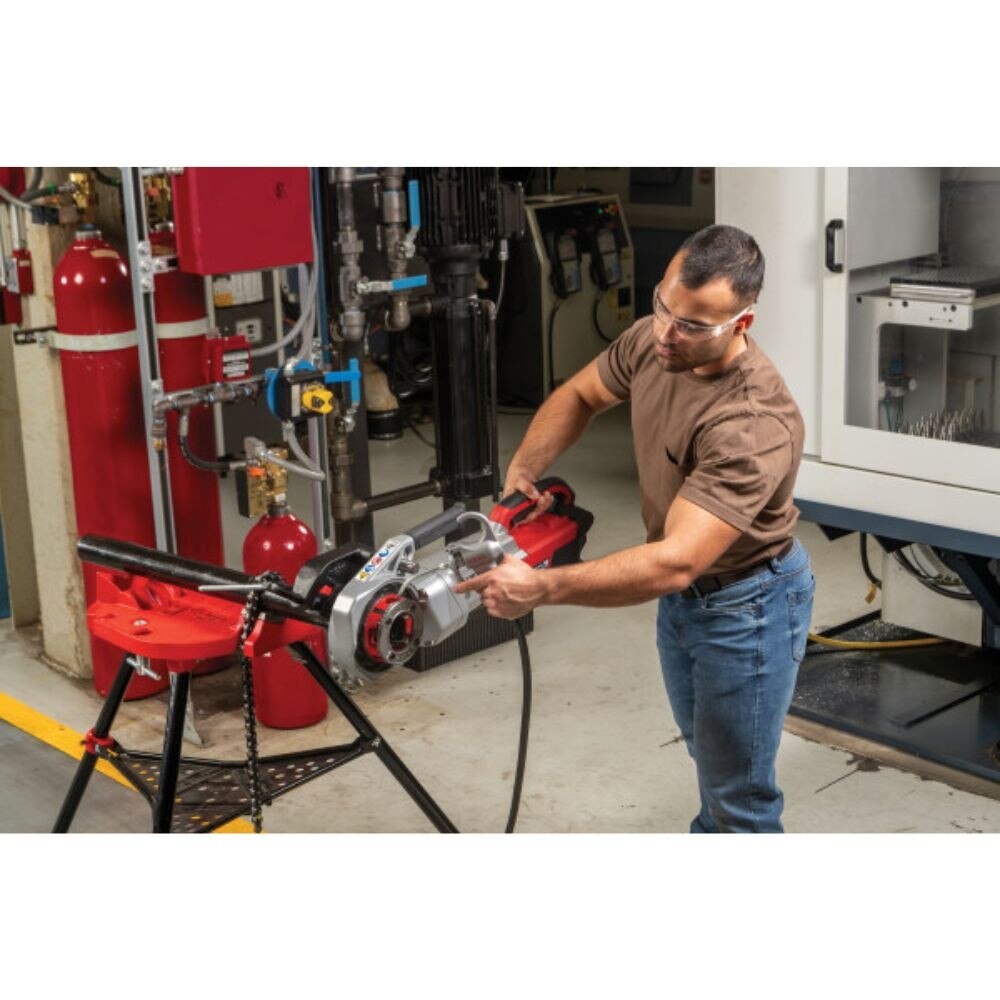

Thread pipe quickly and precisely with the battery powered RIDGID 760 FXP™ Power Drive. The FXP™ Technology Platform offers portability and provides the power to achieve up to 30 2" threads per charge. When kickback is detected during threading the tool will automatically shut off. The Power Drive also delivers industry-leading speed with added features like workspace lights and LED alerts when the thread is nearing completion. This tool provides everything you need to get the job done.

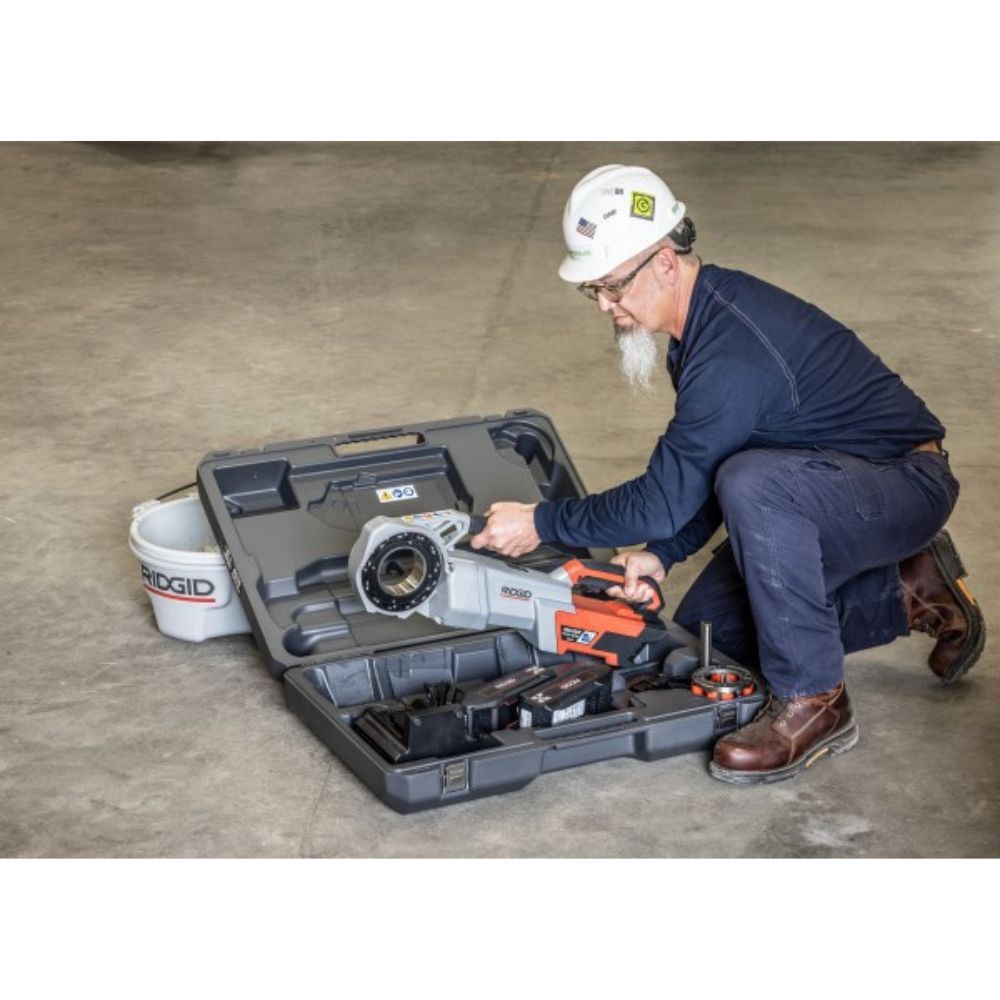

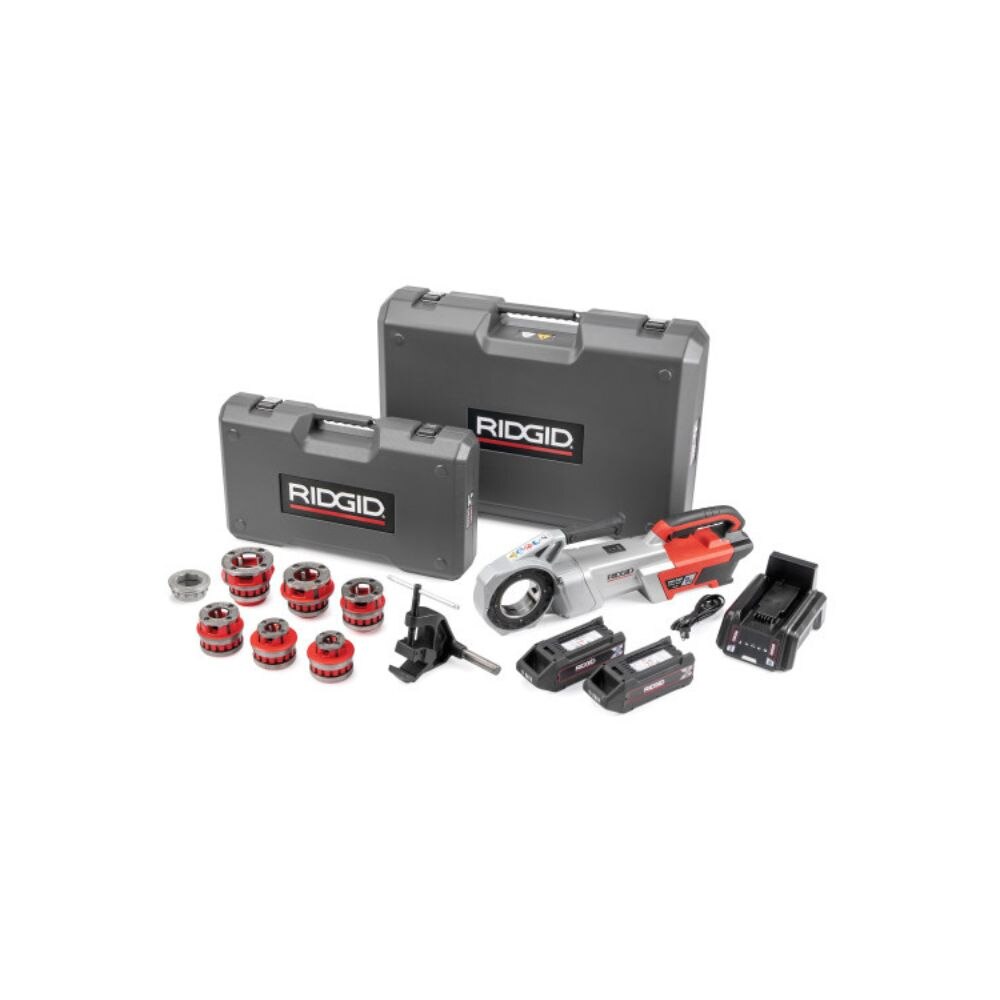

Ridgid 72023 Includes
- (1) 760 FXP Power Drive (12-R)
- (2) 4Ah FXP Batteries
- (1) FXP Charger
- (1) 1/2 - 2" 12-R Die Head Set
- (1) Support Arm
- (2) Case
Ridgid 72023 Features
- Cordless Freedom - Complete up to 30 2" threads on a single cahrge with the FXP Battery Platform
- Torque Reaction Shutoff - Tool automatically shuts off if kickback is detected
- Workspace LEDs - LED near die head illuminates the work area
- End of Thread Indicator - LEDs indicates when the thread is nearing completion

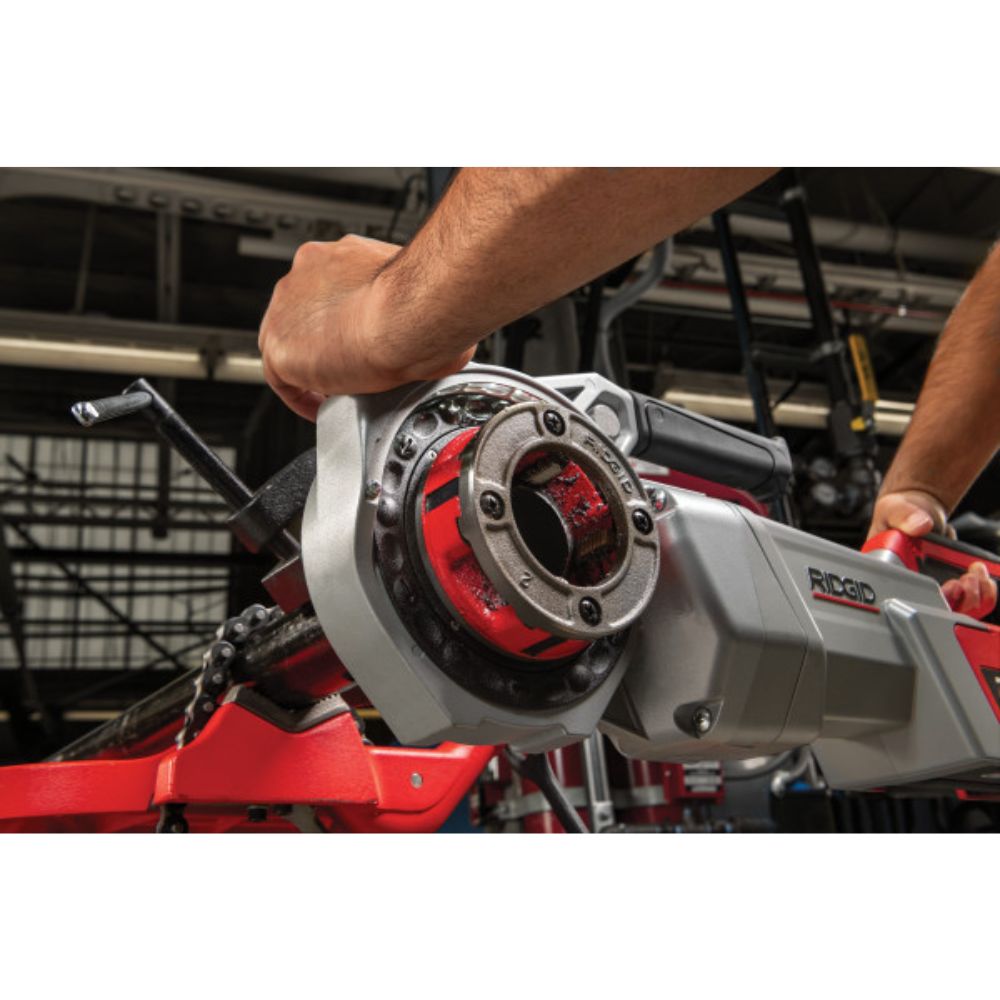

- Palm Pad - Eliminate the need to contact the diehead directly when starting the thread with a conveniently placed palm pad

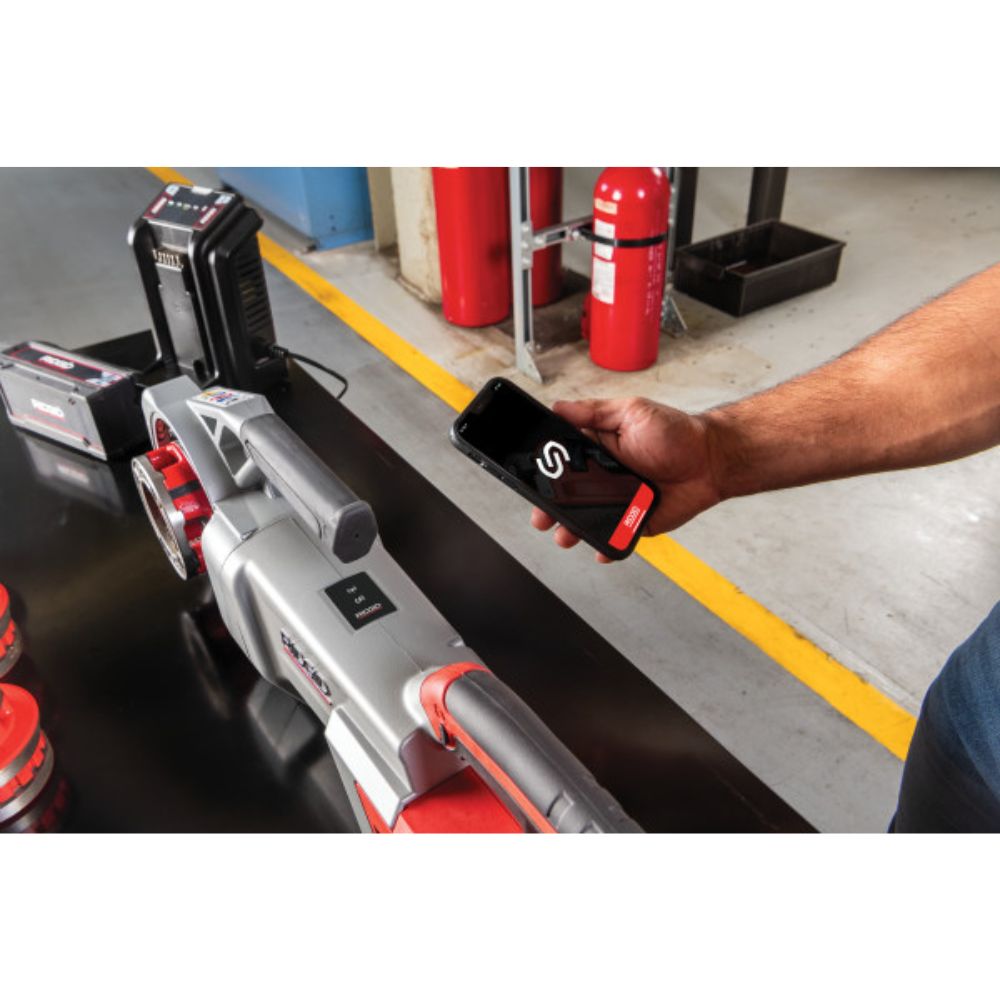

- Connected - Customize, monitor and manage your tool with the RIDGID Link app

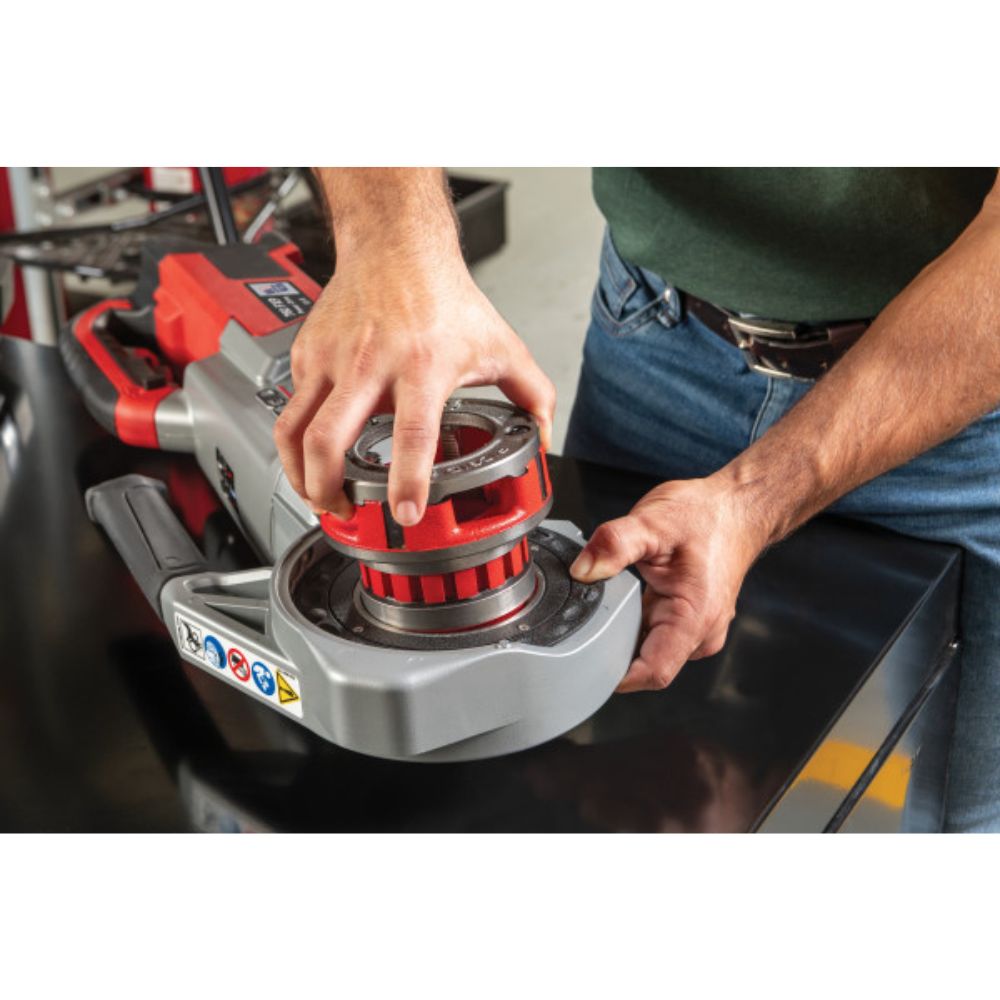

- Compatibility - Compatible with RIDGID 12-R die heads and the 258 & 258XL Pipe Cutters
- FXP Battery Power- Delivers 30 2" threads per charge, providing long-lasting run time on professional-grade tools
- Speed- Cut high quality threads on 1/2"-2" pipe and conduit faster than the competition
- Control- Tool automatically shuts off when kickback is detected
- Convenience- LEDs near the head of the tool light up the workspace and notify user when the thread is nearing completion
- Brushless Motor- Provides optimal output and enhances efficiency by reducing downtime due to scheduled maintenance
- Smart- RIDGID Link app provides information to better understand tool usage, performance, and maintenance needs
Ridgid 72023 Specifications
| Length | 27.8" |
| Width | 5.2" |
| Height | 9.1" |
| Voltage | 54V |
| Wattage | 1080 |
| Amperage | 20A |
| Horsepower | 0.8 |
| RPM | 42 |
| Torque | 180 NTM |
| NPT Die Head Size | 1/2 - 2" 12-R |
| Motor Type | DC Brushless |
| Color | Gray |
| Materials | Aluminum, Polymer |
| Power Source | Ridgid RB-FXP40 or RB-FXP80 Battery Pack |
| Light Source | LED |
| Number of Handles | 2 |
| Handle Type | Normal |
| Connectivity-1 (Bluetooth, WiFi) | Yes |
| Connectivity-2 (Bluetooth, WiFi) | No |
| Bluetooth Range | 33' (10m) |
| Pipe Threading Capacity | Pipe 1/8" to 2" (3 to 50 mm) |
| Bolt Threading Capacity | Bolt 1/4" to 1" (6 to 25 mm) with 00-RB Die Head |
| Die Type | High Speed Dies Recommended |
| Left Hand Threads | Yes, with Appropriate Die Head |
| Die Head Holding | 12-R Die Head Retaining Mechanism |
| Controls | Forward/Reverse Slide Switch and ON/OFF Momentary Contact Switch |
| Support Arm | No. 692 |
| Min Operating Temperature | -4 F / -20 C |
| Max Operating Temperature | 140 F / 60 C |
| Batteries Required | Yes |
| Batteries Included | Yes |
| Battery Composition | Lithium Ion |
| Battery Life | 850 Charge Cycles |
| Advertised Battery Voltage | 60 |
| Weight | 24 lbs |
| Country of Origin | USA |
