Ridgid  |  SKU: 74693  |  Barcode: 095691746931

Ridgid 74693 Pipe Patch Kit - 2" Pipe x 32" Repair

Free Shipping
$397.00

Description

Ridgid 74693 Description

The RIDGID Pipe Patch Kits enable quick and efficient trenchless point repairs with all required consumables and components packaged together for one-time use. Patch Kits make inventory management easier on your business while ensuring you have all components needed when showing up to a job. Fiberglass patch meets ASTM F1216 requirements and cured patches have a life expectancy of up to 50 years under normal conditions. RIDGID Pipe Patch Kits are designed for 2", 3", 3-4", and 4-6" Packers and at lengths for 32", 3', and 6' repairs.

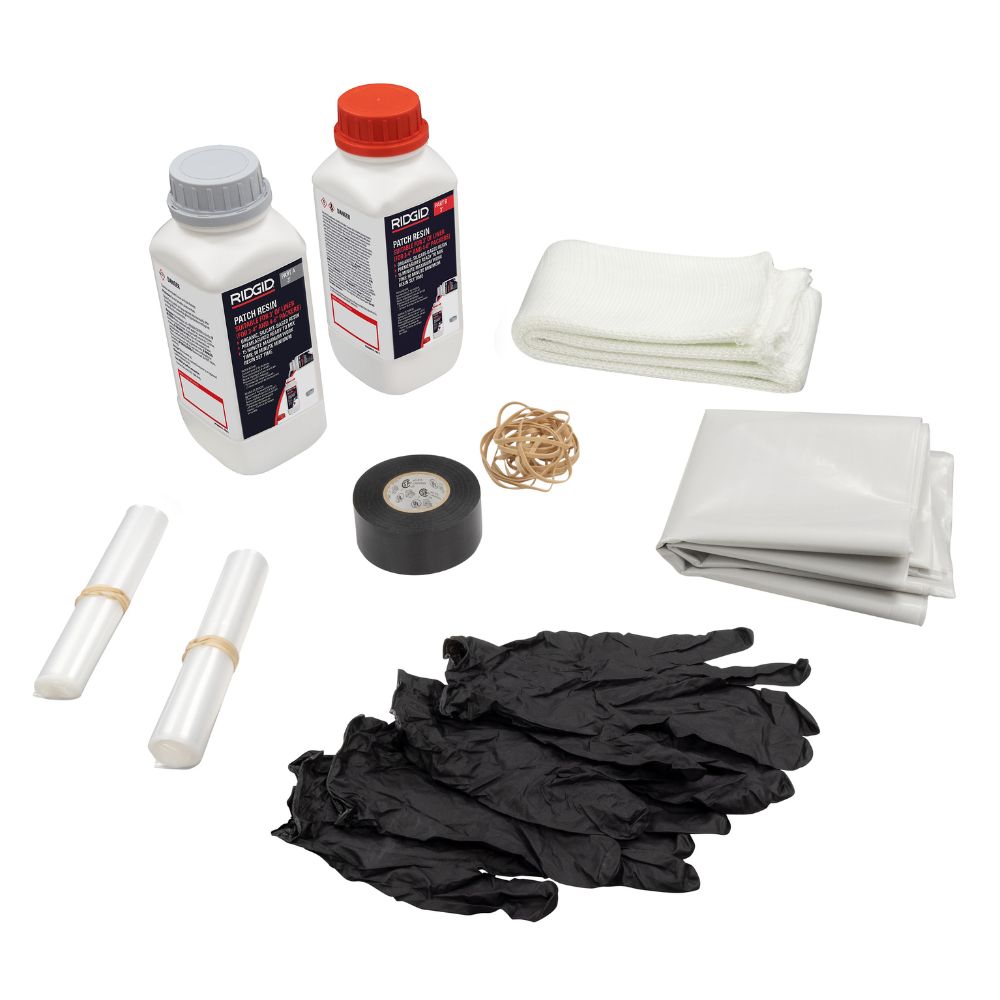

Ridgid 74693 Includes

  • (1) Part A Resin
  • (1) Part B Resin
  • (1) Fiberglass Liner
  • (1) Table Covering
  • (1) Elastic Bands (Bundle)
  • (1) Patch Tape
  • (4) Gloves (Pairs)
  • (2) Packer Sleeve

Ridgid 74693 Features

  • Pre-Measured Fiberglass Patch Kits - Thoughtfully designed Pipe Patch Kits enable quick and efficient repairs with all required consumables and components packaged together for one-time use.
  • Reliable, Long-Lasting Repair - Durable, fibgerglass liner is rated for small sections of damaged pipe and meets ASTM F1216 requirements; cured patches are rated up to 50 year life expectancy under normal conditions.
  • Organic Mineral Resin - Two part silicate resins come pre-measured in clearly labeled bottles including Part A waterglass activater/hardener and Part B base resin. Simply mix Part A into Part B and shake to begin the wet out and curing processes.
  • Work & Resin Set Times - Up to 15 minutes of work time and minimum of 90 minutes of resin set time at 65° Fahrenheit.
  • User-Friendly Process - Patch Tape & Elastic Bands adhere packer sleeve to the Packer while preventing it from being dislodged during transport through the pipe. Elastic Bands do not break during inflation, allowing you to deflate and adjust Packer location if needed.
  • Cleanup & Protection - Table covering & packer sleeves protect workspace and Packer from resin and environmental hazards such as scale and other debris.
  • Less Invasive & Disruptive - Minimal customer impact to landscaping, fauna & business productivity when compared to digging and full relining.
  • Extensive Offering - Pipe Patch Kits designed for 2", 3", 3-4", and 4-6" Packers and at lengths for 32", 3', and 6' repairs.

Ridgid 74693 Specifications

Pipe Capacity 2"
Maximum Patch Length 32"
Resin Working Time 15 Minutes @ 68°F
Resin Set Time 90 Minutes
Final Hardness Time 240 Minutes
Resin Shelf Life 365 days
Resin Storage Temperature 41°F - 113°F
Resin Application Temperature 41°F - 68°F
Liner Material Fiberglass
Typical Patch Thickness 0.16"
Typical Patch Tensile Strength 34889 psi (241 N/mm^2)
Min Operating Temperature 41 F / 5 C
Max Operating Temperature 68 F / 20 C
Color White
Shape Bottle
Primary Material Polymer
Secondary Material Plastic
