Ridgid | SKU:
84097

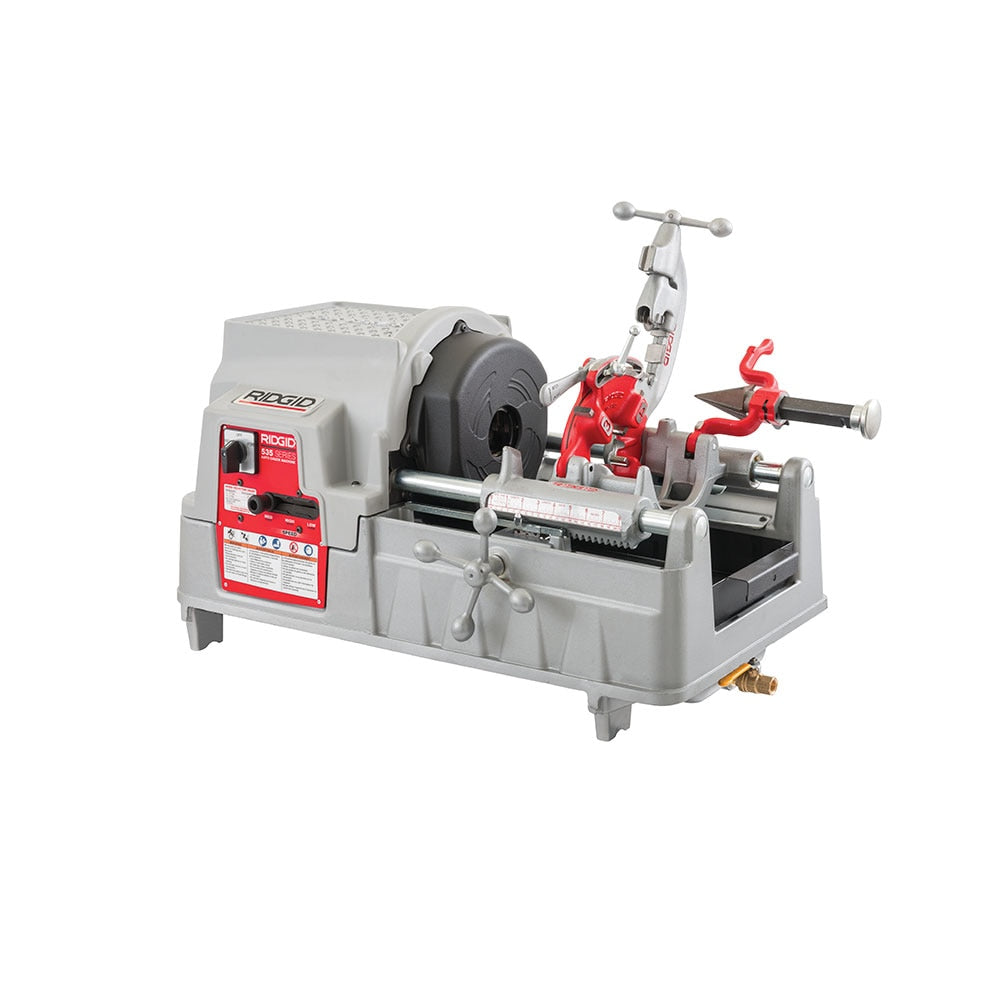

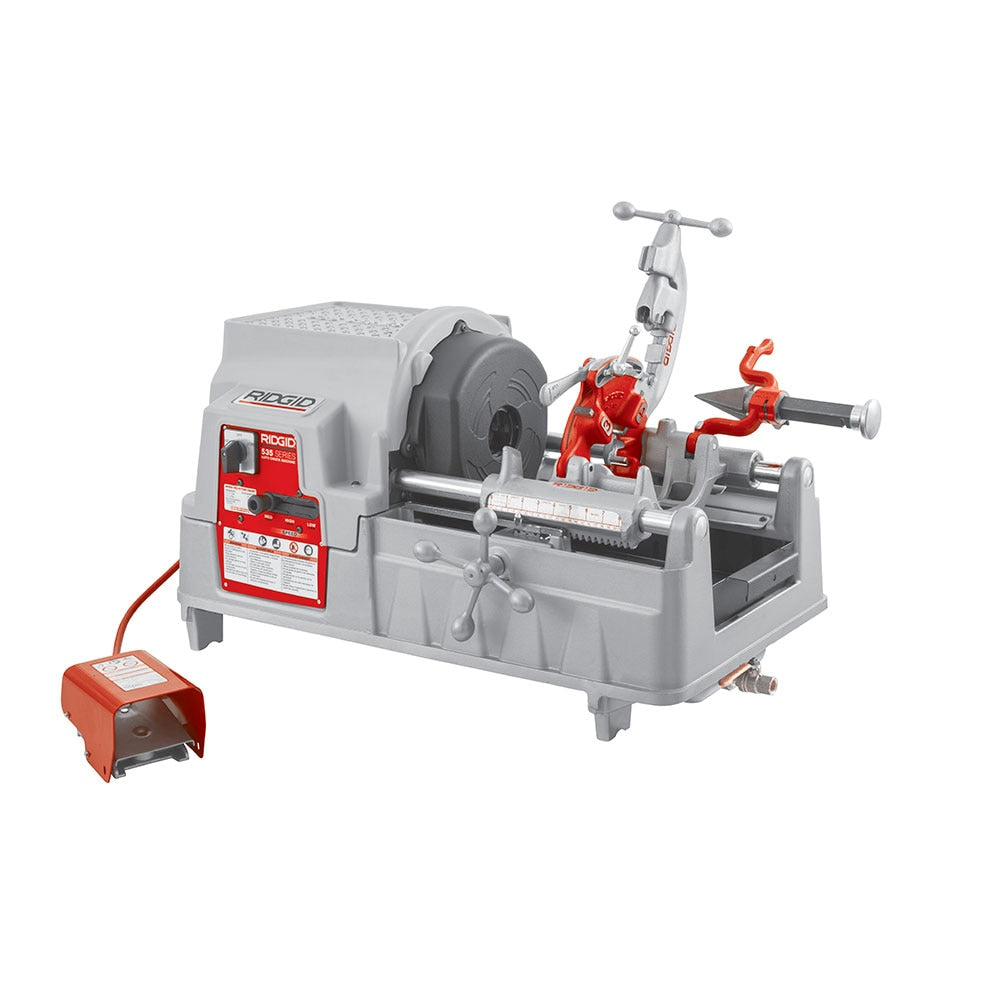

RIDGID 84097 535A (pipe 1/8 - 2") Automatic Threading Machine (2 Die Sets 1 Die Head Included)
Free Shipping
$7,840.64
$11,955.70
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Ridgid 84097 Includes
- (1) No. 811A Universal, Quick-opening Die Head (for models 816/817 die heads) sold separately
- (1) No. 341 Reamer.
- (1) No. 820 Cutter.
- (1) Set 1/2"-3/4" Universal High-Speed Dies.
- (1) Set 1" - 2" Universal High-Speed Dies.
- (1) Gallon Stainless Steel Premium Oil.
- (2) Hex Wrenches.
- (1) Spare E-1032 Cutter Wheel.
- Stand Not Included***
Ridgid 84097 Features
- Automatic chuck
- Large 1.75 gallon oil reservoir.
- 100% greater chip tray capacity.
- Generous top cover area for keeping tools and fitting handy.
- High clearance carriage.
- Can be used with geared threader model 141
- Length gauge for quick
- Chuck: automatic with four reversible forged jaws.
- Rear Centering Device: automatic, centering only.
- Cutters: self-centering, full-floating. Two models available:
- One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm).
- Two Optional. No. 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering chart (both sold separately)
Ridgid 84097 Specifications
| Model # | 535A |
| Pipe Capacity | 1/8" - 2", 2-1/2"-4" with 141 geared threader. |
| Bolt Capacity | 5/16" - 2" |
| Motor | 2 HP, 115V, 60 Hz |
| Amps | 20 reversible induction motor. |
| Spindle Speed | 3 speeds 16/46/58 RPM |
| Reamer | 5-Flute cone, RH 1/8" - 2" |
