Ridgid | SKU: 93287 | Barcode: 095691932877

RIDGID 93287 Model 535 115V Threading Machine, 1/2" - 2" NPT

Name: RIDGID 93287 Model 535 115V Threading Machine, 1/2" - 2" NPT
Brand: Ridgid
SKU: 14661
Price: 7258.6 USD
Availability: BackOrder

Free Shipping

$7,258.60 ~~$11,336.33~~

Description

Ridgid 93287 Includes

(1) No. 811A universal, quick-opening die head.
(1) No. 341 reamer.
(1) No. 820 cutter.
(1) set 1/2"-3/4" universal alloy dies
(1) set 1" - 2" universal alloy dies
(1) gallon premium oil.
(4) hex wrenches.
(1) spare E-1032 cutter wheel.

Ridgid 93287 Features

Large 1.75 gallon oil tray.
100% larger chip tray.
Generous top cover for keeping tools and fi ttings handy.
High clearance carriage.
Speed chuck with rocker-action jaws centers and grips work piece instantly.
Can be used with geare
Cutters: self-centering, full-floating.
One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm).
Switches: FOR/OFF/REV and Integral safety foot switch.
Chuck: Speed Chuck with replaceable rocker-action jaw inserts (3).
Rear Centering Device: Cam-action, turns with chuck.(3).

Ridgid 93287 Specifications

Pipe Capacity:	1/8"-2" (3mm-50mm)2 1/2"-4" (62mm-100mm),4"-6" (100mm-150mm) with 141 and 161 geared threaders.
Bolt Capacity:	1/4"-2" (6mm-50mm).
Motor:	1/2 HP, single-phase, 115V, 25-60 Hz, 15 amp reversible universal motor.
Spindle Speed:	36 RPM standard (no load), 54 RPM model also available.
Reamer:	5-flute cone, RH, 1/8"-2" (3mm-50mm).
Oil Pump:	Self-priming gerotor oil pump.
RH/LH combination reamer available.

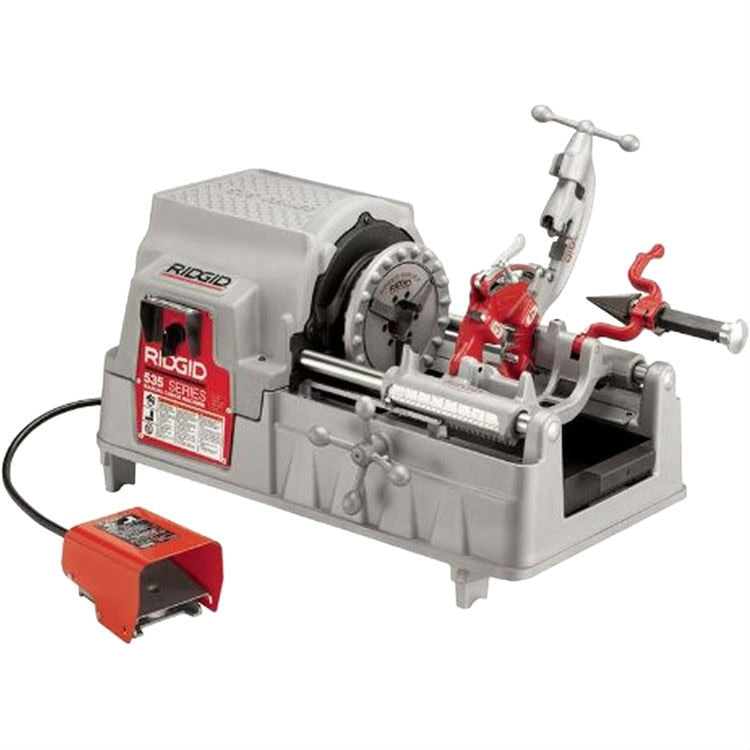

The product image for this item is for the general Model 535, and does not represent exactly what comes with this item number. Please reference what is included with this item below for an exact description of included components
