Rol-Air | SKU:
VT25BIG

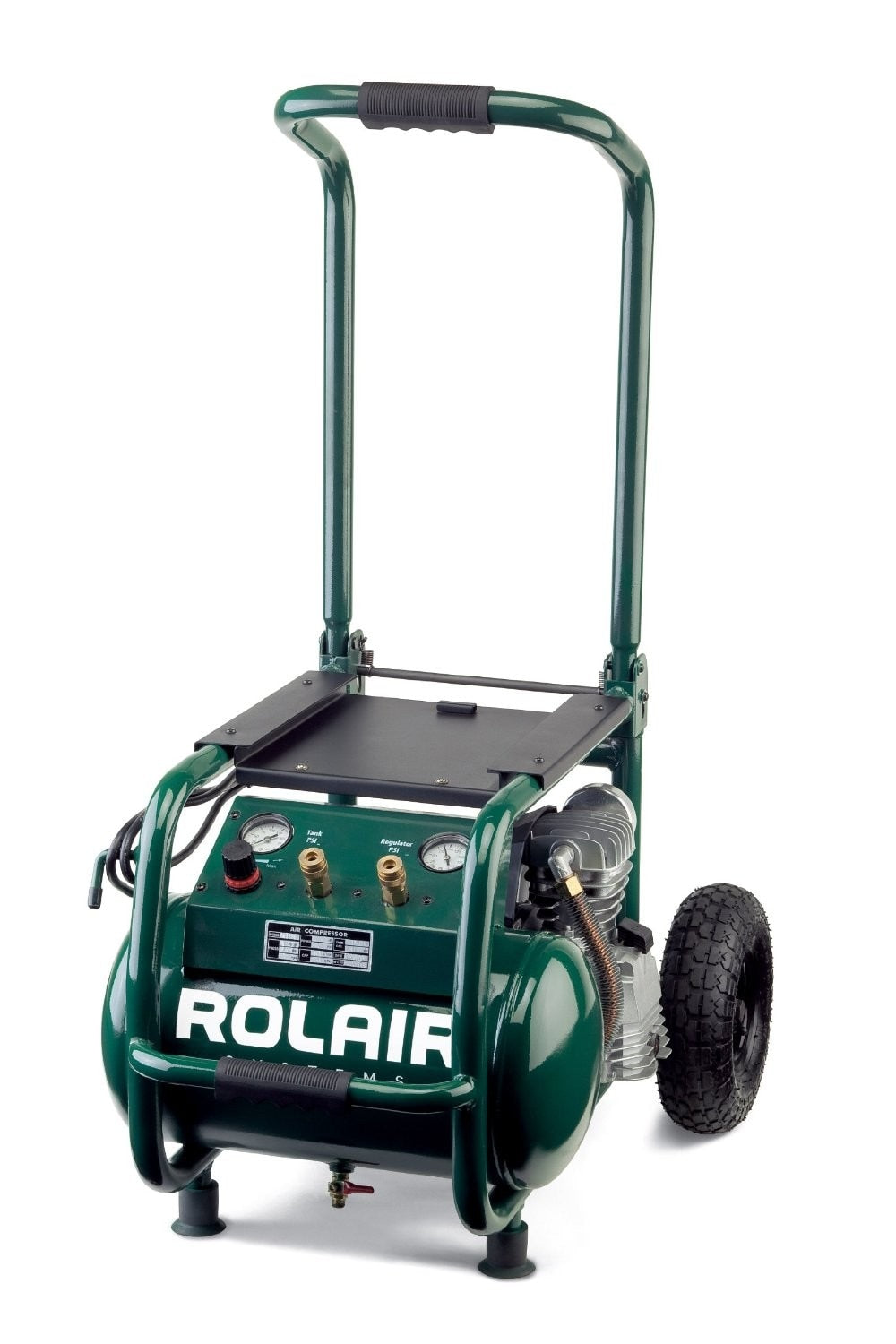

Rolair VT25BIG 2.5 HP 5.3 Gal Wheeled Compressor with Overload Protection and Manual Reset
$514.00
$573.00
Unit price
/
Unavailable
Description
Description
Rol-Air VT25BIG Description
When you need BIG air out of your direct drive compressor, look no further. With an S1 rated continuous duty 2.5 HP Motor this compressor delivers 6.5CFM @90PSI. Only drawing 13.8 Amps this unit can be run off a 15 amp breaker. The dolly cart design provides easy manuverability, and the fold down handle provides simple storage.
Rol-Air VT25BIG Features
- Comes standard with 100% Duty-Cycle Motor, Heavy Duty Wheels for Greater Jobsite Mobility, Start/Stop Pressure Switch with On/Off Lever, Fold Down Handle for Easy Storage/Low Profile, User-Friendly Control Panel Including Gauges, Two Quick-Disconnect, Safety-Relief Valve, Intake Filter Silencer, 13.8 Amp Motor, Initial 10-Oz. Oil Fill Included.
- High-Output 6.5 CFM pump capable of running 2-3 framing guns, 3-4 roofing guns, or 6-8 trim/finish guns.
- 100% Duty Cycle - S1 Rated Motor and Splash-Lubricated Pump with Cast-Iron Cylinder to ensure longer life.
- Fold-Down Handle allows for easier storage when space is limited.
- Easy-to-Access Manifold with Regulator and Two Couplers, Pneumatic Tires, and Easy-Access Manifold with Two Couplers.
Rol-Air VT25BIG Specifications
| Amperage | 13.8 |
| Max Pressure | 135 |
| Horse Power | 2.5HP |
| CFM Displaced @ 40/90 PSI | 6.9/6.5 CFM |
| Pump/Motor RPM | 3400 RPM |
| Overload Protection | Yes (Manual Reset Standard) |
| Lubrication Type | Splash Lubrication |
| Reed Valve System | Yes (Standard) |
| Number of Cylinders | 1 |
| Tank Capacity | 5.3 Gallons |
| Decibel Rating | 86 dBA |
| Dimensions | 29"L x 22"W x 44"H |
| Pump Oil Capacity | 10 Ounces |
