Rothenberger | SKU:
00579R

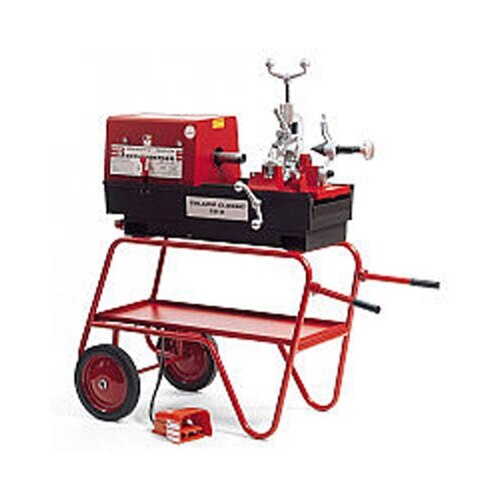

Rothenberger 00579 Collins Classic 22A Threading Machine 1/2 - 2 Inch capacity
$7,293.67
$10,981.60
Unit price
/
Unavailable
Description
Description
** Stand not included. See Rothenberger 00045**
Drive Motor
• HD 115 V, universal AC/DC 50/60 Hz. Develops up to 2-3/4 HP
• 6 brush motor for higher torque
Pipe Cutter and Reamer
• Precision pipe cutter with dual guide for accurate pipe cutting
• 5-blade conical reamer
No-Load Spindle Speed
• 72 rpm, Optional 54 and 100 rpm
HSS Precision Dies
• Long operating life
• Optimum cutting geometry and excellent chip discharge
• Can be resharpened
Pipe Chuck
• Collins SUPER GRIP chucking system offers R/L chucking. 4 heavy duty jaws at both front and rear of machine ensure that pipe is automatically gripped and centered.
• Easy to replace for both metal and plastic-coated pipe
• Need special jaws for plastic
Oiling and Lubrication
• Rugged and proven oil pump
• Automatic oil feed for optimum cooling
• Large, easy-to-empty chip tray
• 1 gallon oil reservoir
• Use ROCOOL cutting oil, a special blend of sulfo-chlorinated mineral oil assures long die life and superior quality threads
Die Heads
• Snap-O-Matic die heads (2) are standard, fast operating
• Simple, quick change of dies without time consuming adjustments
• All controls are clearly marked
• Automatically adjusted thread length
• Adjustable thread depth
• Long thread facility
• Threading range: Pipe or conduit - 1/8" to 2"; Bolt or rod - 1/4" to 2-1/4"
• Uniquad head optional
Safety
• All units come with safety foot switch
Dimensions
• 37-1/2" x 13-1/8" x 18-1/2" (L x W x H)
• Carriage travel 11"
Optional Stands (sold separately)
• Open wheel stand with tool tray (00045)
• Closed wheel stand with locking tool cabinet
Drive Motor
• HD 115 V, universal AC/DC 50/60 Hz. Develops up to 2-3/4 HP
• 6 brush motor for higher torque
Pipe Cutter and Reamer
• Precision pipe cutter with dual guide for accurate pipe cutting
• 5-blade conical reamer
No-Load Spindle Speed
• 72 rpm, Optional 54 and 100 rpm
HSS Precision Dies
• Long operating life
• Optimum cutting geometry and excellent chip discharge
• Can be resharpened
Pipe Chuck
• Collins SUPER GRIP chucking system offers R/L chucking. 4 heavy duty jaws at both front and rear of machine ensure that pipe is automatically gripped and centered.
• Easy to replace for both metal and plastic-coated pipe
• Need special jaws for plastic
Oiling and Lubrication
• Rugged and proven oil pump
• Automatic oil feed for optimum cooling
• Large, easy-to-empty chip tray
• 1 gallon oil reservoir
• Use ROCOOL cutting oil, a special blend of sulfo-chlorinated mineral oil assures long die life and superior quality threads
Die Heads
• Snap-O-Matic die heads (2) are standard, fast operating
• Simple, quick change of dies without time consuming adjustments
• All controls are clearly marked
• Automatically adjusted thread length
• Adjustable thread depth
• Long thread facility
• Threading range: Pipe or conduit - 1/8" to 2"; Bolt or rod - 1/4" to 2-1/4"
• Uniquad head optional
Safety
• All units come with safety foot switch
Dimensions
• 37-1/2" x 13-1/8" x 18-1/2" (L x W x H)
• Carriage travel 11"
Optional Stands (sold separately)
• Open wheel stand with tool tray (00045)
• Closed wheel stand with locking tool cabinet
