At a Glance
Weight Capacity
420 lb
Cable Length
7 ft
Material
Steel
Sold As
Individual
Application
Construction
Finish
E-Coat
Safety Rating
OSHA 1926.502
Description
Description
SafeWaze 018-5033 Description

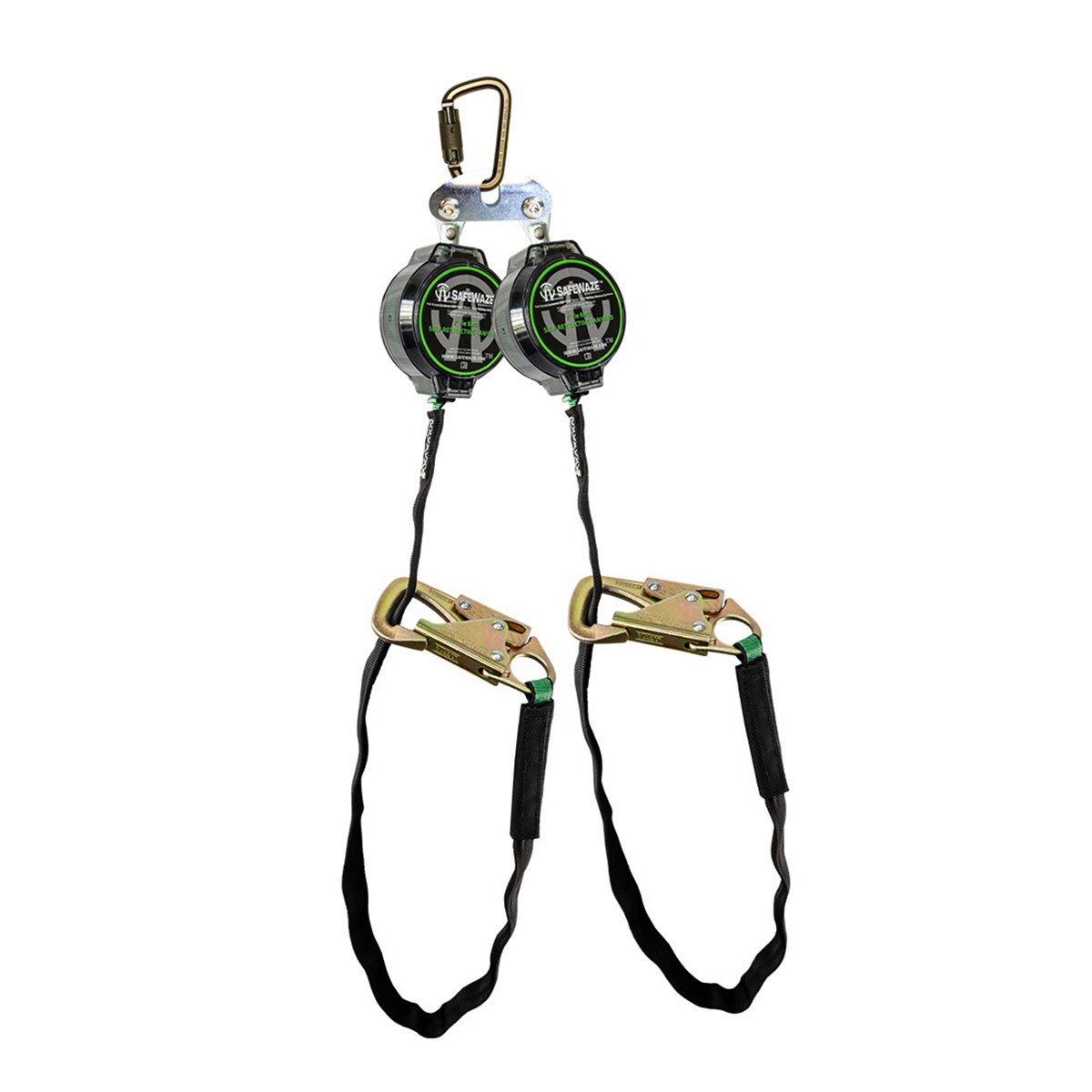

The Safewaze 018-5033 tie back SRL comes with our FS-EX313 dual bracket, steel carabiner, and 3/4? steel tie back snaphook. It has all the same lightweight and durable features offered in our standard 7? series with new wear pad protected tie back legs allowing for anchorage connection from 9.5? to 36?.
SafeWaze 018-5033 Includes
- (1) 7' Web Tie Back Retractable
- (1) FS-EX313 Bracket and Steel Carabiner
SafeWaze 018-5033 Features
- 7? length
- Steel tie back snap hooks
- High strength clear plastic housing
- 40? of wear pad protected webbing
- 36? max. circumference tie back connection
- Steel tie back snap hooks with 5,000 lb. gate
- .77 in (19.5 mm) Ultrahigh molecular weight webbing
- 10’ non tie back when used in overhead applications
- Compliance: OSHA 1929-502
- User Capacity: ANSI 130-310 lbs. and OSHA 420 lbs. (max)
- FS-EX313 dual bracket included
- Steel carabiner included
- Available in single and dual leg configuration with a variety of attachment options
SafeWaze 018-5033 Specifications
| Length | 7' |
| Length of Tie Back Webbing | 40" |
| Materials | .77 in (19.5 mm) Ultrahigh Molecular Weight Webbing, Steel Tie Back Snap Hooks, Steel Carabiner |
| Housing | High-Strength Clear Plastic |
| Weight Capacity | ANSI 130-310 lbs (58.97-140.61 kg) OSHA up to 420 lbs (190.51 kg) |
| Hook Ratings | 5000 lbs Tensile Strength, 3600 lbs Gate Rated |
| Compliance | OSHA 1929-502 - ANSI A10.32 |
| Maximum Arrest Distance | 24" (60.96 cm) If Used Above Dorsal D-ring 54" (137.16 cm) If Used Up to a Maximum of 2' Below Dorsal D-ring |
| Lanyard Legs | Dual Leg |
Toolup Part # :
459622
