At a Glance
Weight Capacity
420 lb
Material
Steel
Sold As
Individual
Application
Construction
Finish
Textured
Safety Rating
OSHA 1926.502
Description
Description
SafeWaze 018-5036 Description

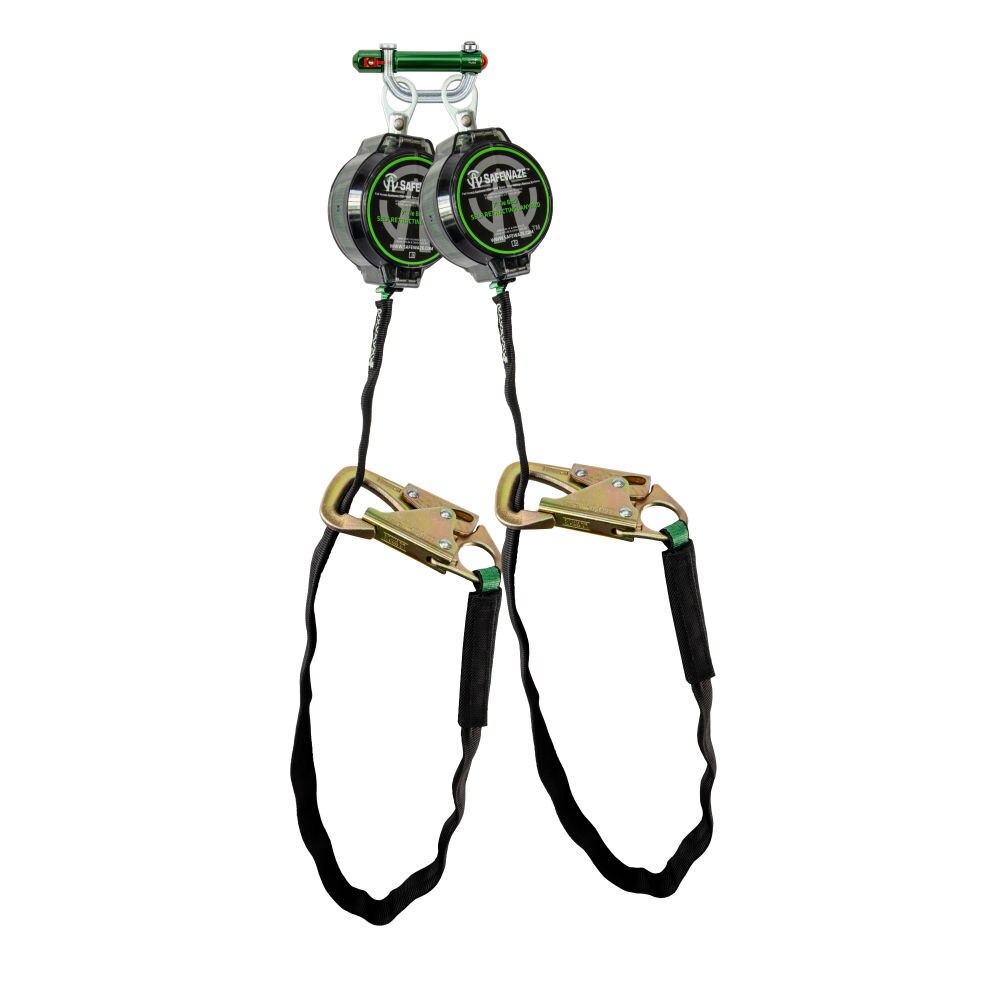

The Safewaze 018-5036 tie back SRL comes with our 9013 behind the web bracket, and 3/4? Steel Tie Back Snaphook. It has all the same lightweight and durable features offered in our standard 7? series with new wear pad protected tie back legs allowing for anchorage connection from 9.5? to 36?.
SafeWaze 018-5036 Includes
- (1) 7' Web Tie Back Retractable
- (1) 9013 BWB
SafeWaze 018-5036 Features
- 7? length
- Steel tie back snap hook
- High strength clear plastic housing
- 40? of wear pad protected webbing
- 36? max. circumference tie back connection
- Steel tie back snap hooks with 5,000 lb. gate
- .77 in (19.5 mm) Ultrahigh molecular weight webbing
- 10’ non tie back when used in overhead applications
- Compliance: OSHA 1929-502
- User Capacity: ANSI 130-310 lbs. and OSHA 420 lbs. (max)
- 9013 behind the web bracket included
- Available in single and dual leg configuration with a variety of attachment options
SafeWaze 018-5036 Specifications
| Length | 7' |
| Length of Tie Back Webbing | 40" |
| Materials | .77 in (19.5 mm) Ultrahigh Molecular Weight Webbing, Steel Tie Back Snap Hooks |
| Housing | High-Strength Clear Plastic |
| Weight Capacity | ANSI 130-310 lbs (58.97-140.61 kg) OSHA up to 420 lbs (190.51 kg) |
| Hook Ratings | 5000 lbs Tensile Strength, 3600 lbs Gate Rated |
| Compliance | OSHA 1929-502 - ANSI A10.32 |
| Lanyard Legs | Dual Leg |
Toolup Part # :
459625
