At a Glance
Weight Capacity
420 lb
Material
Polyethylene
Sold As
Individual
Application
Construction
Finish
Powder Coated
Safety Rating
OSHA 1926.502
Description
Description
SafeWaze 019-5136 Description

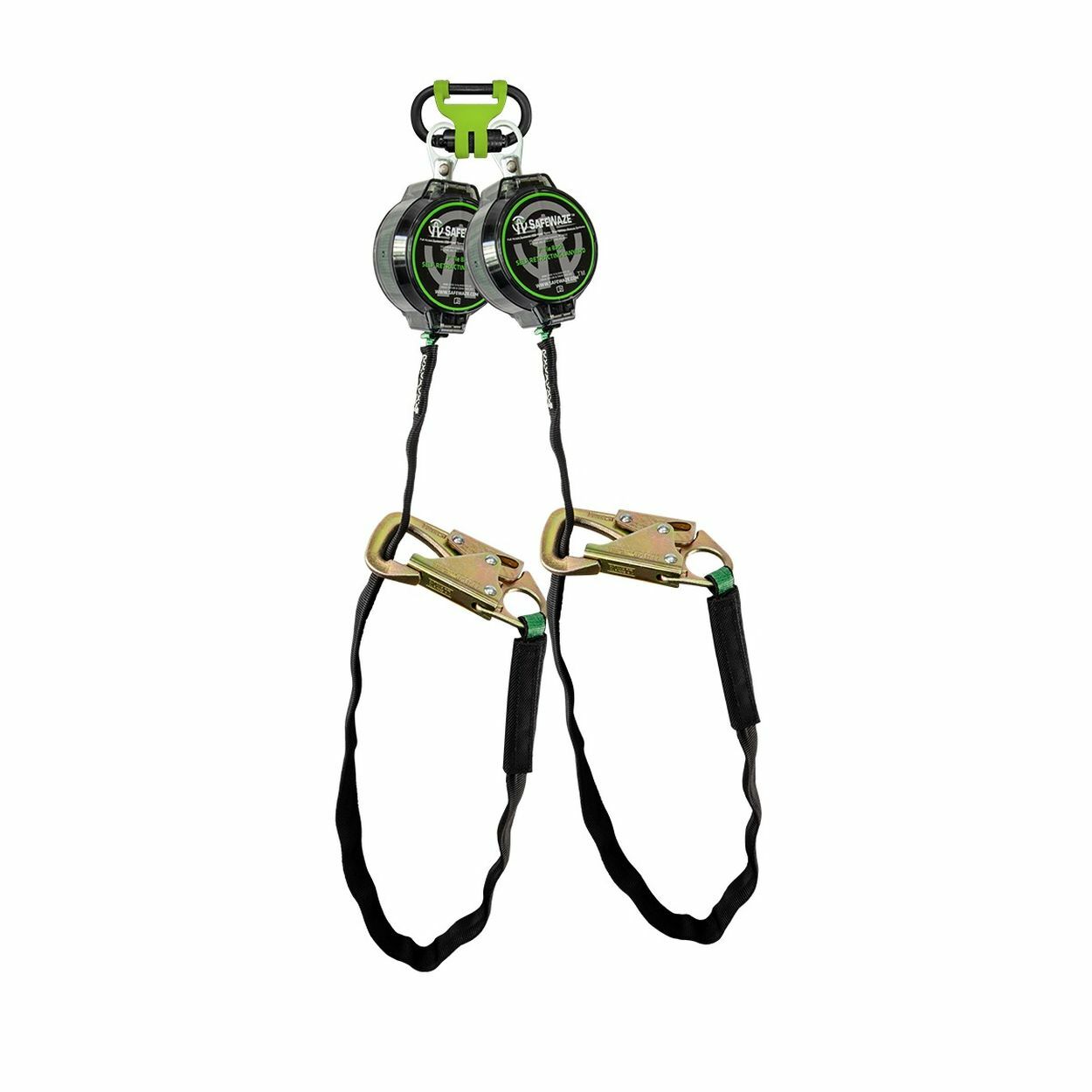

The Safewaze 019-5136 tie back SRL comes with our 1014 behind the web bracket, and 3/4? steel tie back snaphook. It has all the same lightweight and durable features offered in our standard 7? series with new wear pad protected tie back legs allowing for anchorage connection from 9.5? to 36?.
SafeWaze 019-5136 Includes
- (1) Web Tie Back Retractable
- (1) 1014 BWB
- (2) Steel Tie Back Hooks
SafeWaze 019-5136 Features
- 7? length
- Steel tie back snap hook
- High strength clear plastic housing
- 40? of wear pad protected webbing
- 36? max. circumference tie back connection
- Steel tie back snap hooks with 5,000 lb. gate
- .77 in (19.5 mm) Ultrahigh molecular weight webbing
- 10’ non tie back when used in overhead applications
- Compliance: OSHA 1929-502
- User Capacity: ANSI 130-310 lbs. and OSHA 420 lbs. (max)
- 1014 behind the web bracket included
- Available in single and dual leg configuration with a variety of attachment options
SafeWaze 019-5136 Specifications
| Length | 7' |
| Materials | High-Strength Clear Plastic Housing, .77" (19.5 mm) Ultrahigh Molecular Weight Webbing, Steel Tie Back Snap Hooks |
| Weight Capacity/Max Working Load | ANSI 130-310 lbs - OSHA up to 420 lbs (190.51 kg) |
| Hook Ratings | 5000 lbs Tensile Strength - 3,600 lbs Gate Rated |
| Maximum Arrest Distance Class A | |
| Maximum Arrest Distance Class B | |
| Applicable Standards | Meets OSHA 1926.502 - ANSI A10.32 |
Toolup Part # :
459628
