At a Glance
Bolt Diameter
1/2 in
Material
Steel
Sold As
Individual
For Use On
Steel
Mount Type
Rigid Plate
Safety Rating
OSHA 1926.502, ANSI Z359.1
Description
Description
SafeWaze 019-8035 Description

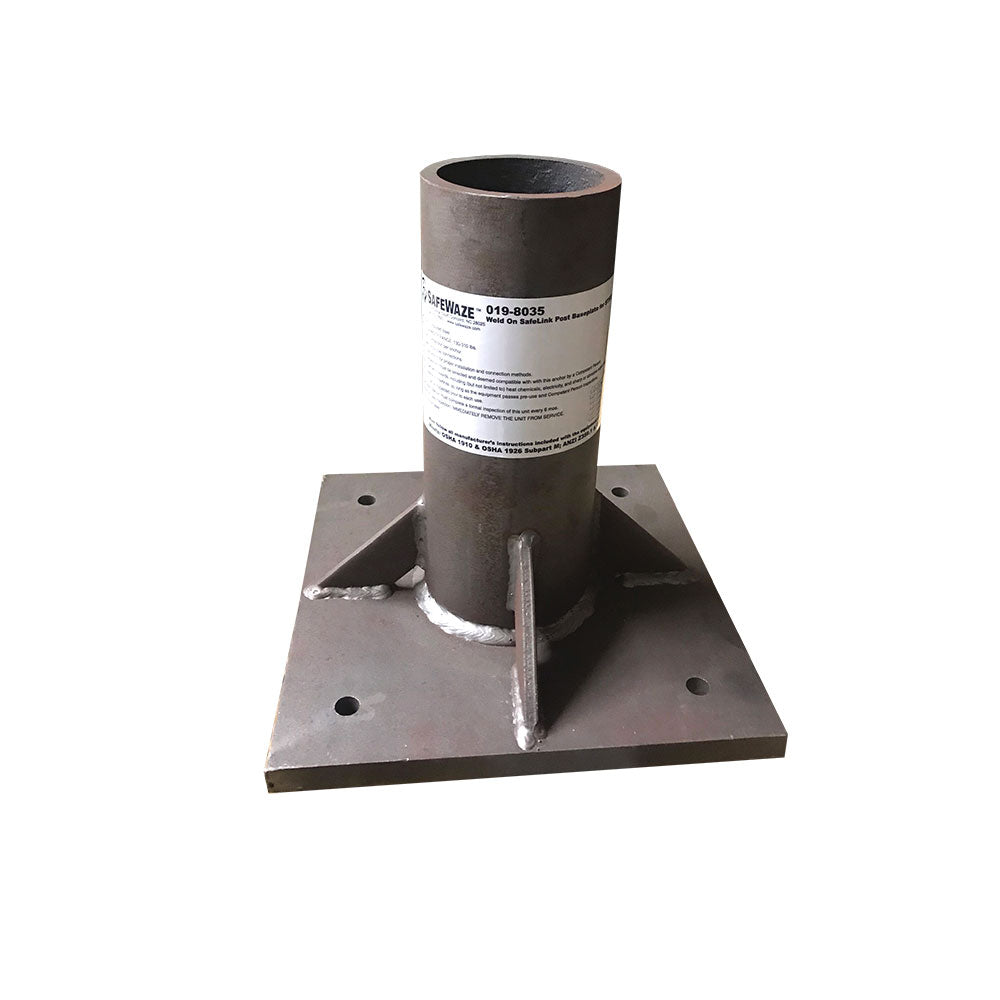

The SafeLink 019-8035 weld on post baseplate is used with the FS-EX5501-5 SafeLink aluminum post and is designed for weld on applications.
SafeWaze 019-8035 Includes
- (1) Weld-On Safelink Post Baseplate
SafeWaze 019-8035 Features
- 12 in x 12 in
- For steel
- Weld on
SafeWaze 019-8035 Specifications
| Height | 12.75" |
| Base Dimensions | 12" x 12" |
| Material | 3/4" Unplated Steel |
| Applicable Standards | Meets OSHA 1926.502 - ANSI Z359.1 - ANSI A10.32 |
| Installation Requirements Steel | (4) 1/2" Diameter Grade 8 Bolts with Locking Hardware Such as Nyloc Nuts and Flat Sashers - Steel (Welded Installation) |
| Applicable Standards | Meets OSHA 1926.502 - ANSI Z359.1 - ANSI A10.32 |
Toolup Part # :
462842
