At a Glance
Anchor Type
Sleeve
Weight Capacity
420 lb
Mounting Type
Temporary
Material
Stainless Steel
Sold As
Individual
For Use On
Concrete
Mount Type
Eye
Color
Green
Safety Rating
OSHA 1926.502, OSHA 1910.140
Description
Description
SafeWaze 020-4020 Description

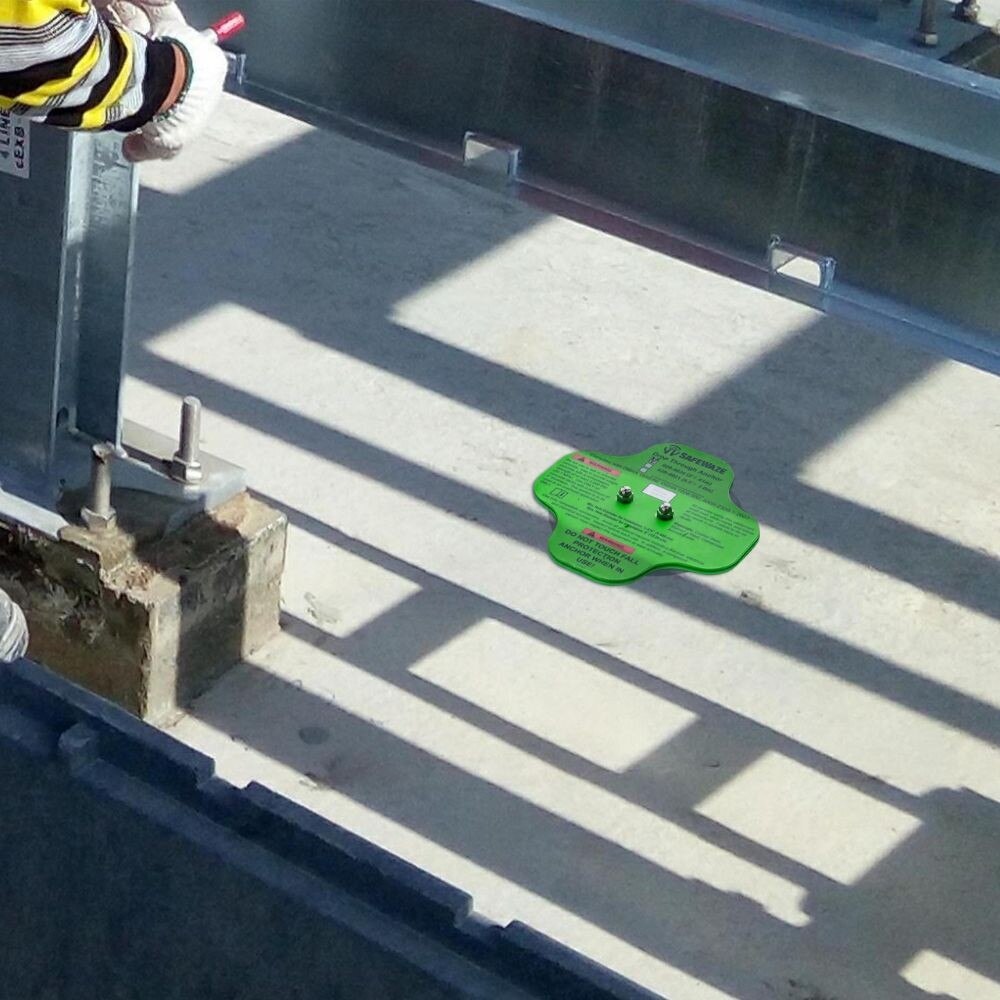

The Drop-Through Cable Anchor is a versatile anchor point for permanent or temporary use. Simply drop the captive eye and cable through openings in concrete, steel decking, grating or any 1-3/4" hole in a substrate compliant with fall protection requirements.
SafeWaze 020-4020 Includes
- (1) Drop-Through Cable Anchor
SafeWaze 020-4020 Features

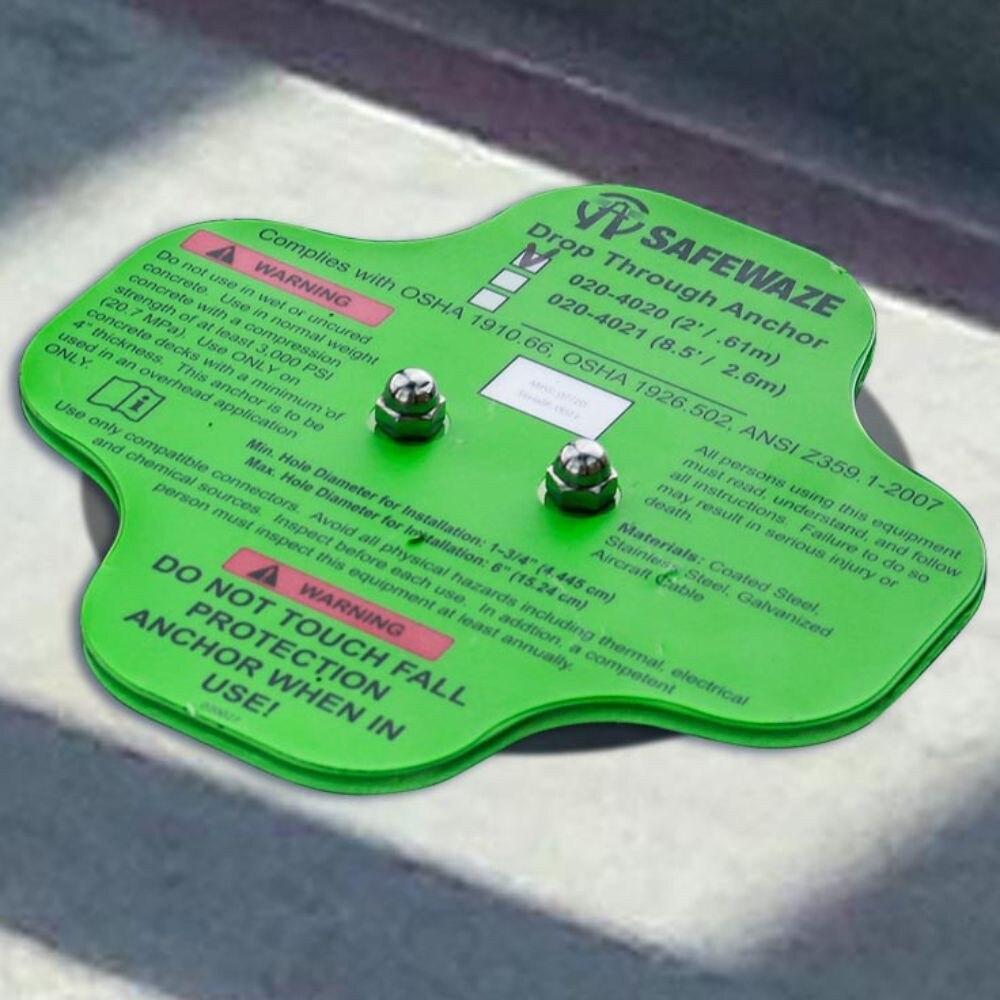

- 8? high visibility green steel plate

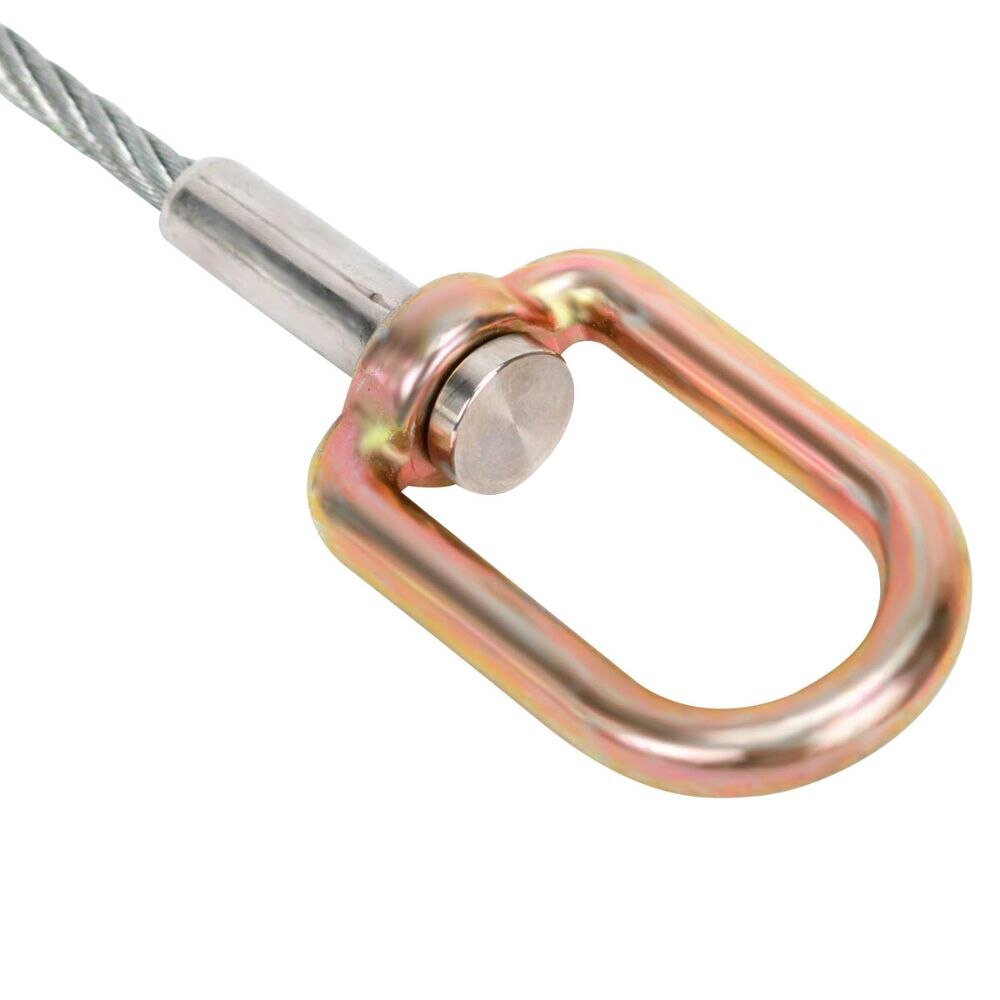

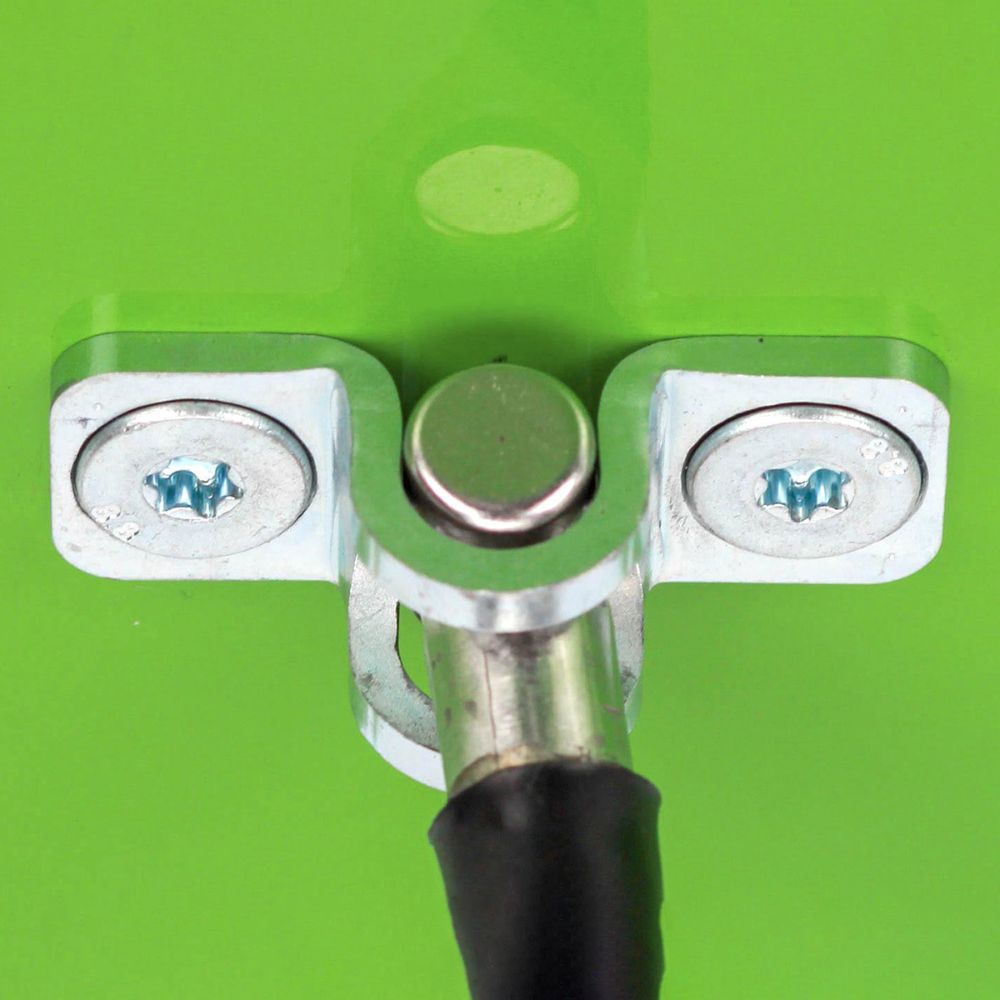

- Forged steel swiveling connection point
- 1/4? steel cable with wear sleeve
- Accommodates openings from 1.75? to 6?
- Available in two lengths
SafeWaze 020-4020 Specifications
| Materials | Coated Cable, Stainless Steel, Galvanized Steel |
| Length | 2.0' (0.6 m) |
| Breaking Strength | 5,000 lbs. Minimum |
| ANSI Weight Capacity | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs. (191 kg) |
| OSHA Standards | 1926.502, 1910.140 |
