At a Glance
Anchor Type
Concrete Anchor
Weight Capacity
420 lb
Mounting Type
Permanent
Material
Galvanized Steel
Sold As
Individual
For Use On
Concrete
Safety Rating
ANSI Z359.1, OSHA 1926.502, OSHA 1910.140, OSHA 1910.66
Description
Description
SafeWaze 020-4029 Description

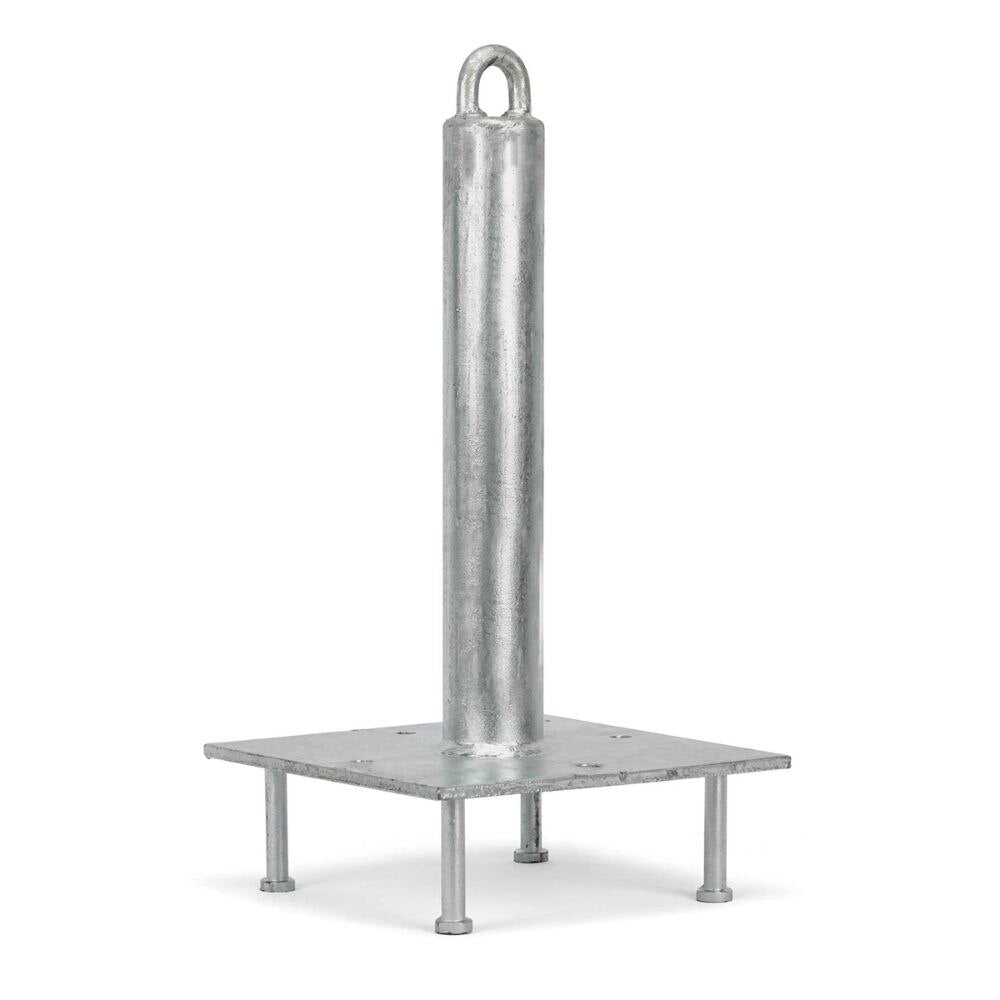

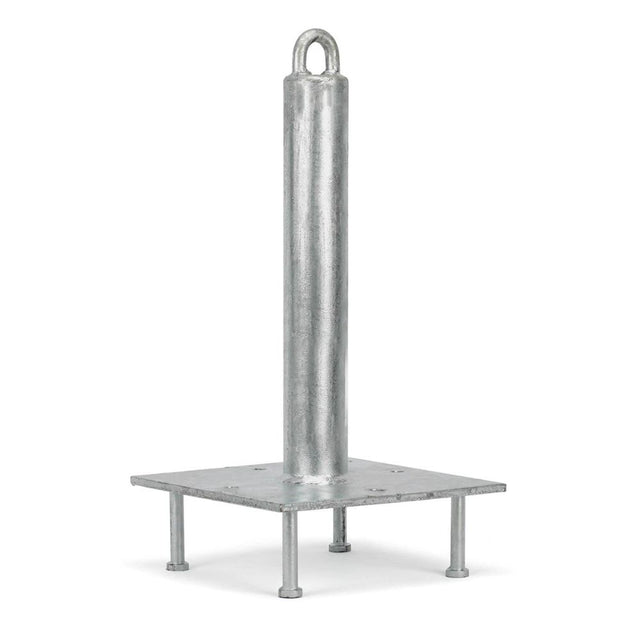

The 18? Post Anchor is cast-in-place in concrete applications. This permanent anchor can be used as a single point anchor or with a horizontal lifeline system.
SafeWaze 020-4029 Includes
- (1) Concrete Post Anchor
SafeWaze 020-4029 Features
- 18? fixed steel anchor point
- Cast-in-place concrete installation
- Corrosion resistant galvanized coating
SafeWaze 020-4029 Specifications
| Materials | Galvanized Steel |
| Base Dimensions | 13" x 13" (330 mm x 330 mm) |
| Breaking Strength | 5,000 lbs. Minimum |
| ANSI Weight Capacity | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs. (191 kg) |
| ANSI Standards | Z359.1, A10.32 |
| OSHA Standards | 1926.502 |
Toolup Part # :
697736
