At a Glance
Anchor Type
Beam Anchor
Weight Capacity
420 lb
Mounting Type
Temporary
Clamp Capacity
10 in
Material
Galvanized Steel
Sold As
Individual
For Use With
Magnetic Drill
Mount Type
Beam Clamp
Safety Rating
OSHA 1926.502, OSHA 1910.66
Description
Description
SafeWaze 020-4030 Description

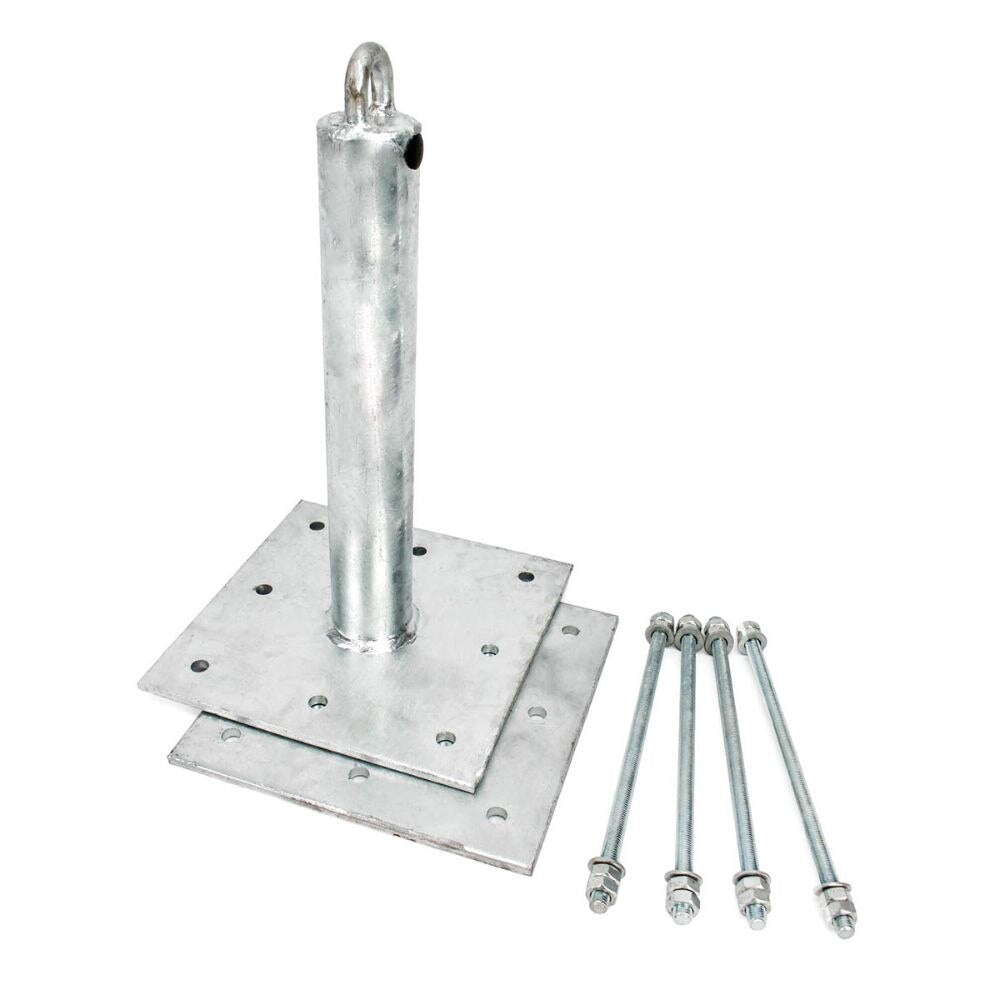

The 18" Post Anchor is a fixed anchor, designed to be bolted to or around a steel I-beam, and used as a single point anchor or with a horizontal lifeline system.
SafeWaze 020-4030 Includes
- (1) Post Anchor
- (4) Fasteners
SafeWaze 020-4030 Features
- Temporary steel anchor point
- For use on I-beams up to 10?
- Set of 4 fasteners included
- Corrosion resistant galvanized coating
SafeWaze 020-4030 Specifications
| Materials | Galvanized steel |
| Base Dimensions | 12" x 12" (305 mm x 305 mm) |
| Breaking Strength | 5,000 lbs. Minimum |
| ANSI Weight Capacity | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs. (191 kg) |
| OSHA Standards | 1926.502, 1910.66 |
Toolup Part # :
697749
