At a Glance
Anchor Type
Roof anchor
Weight Capacity
420 lb
Mounting Type
Temporary
Material
Steel
Sold As
Individual
For Use On
Wood
Mount Type
Rigid Plate
Safety Rating
ANSI Z359.1, OSHA 1926.502, OSHA 1910.66
Description
Description
SafeWaze 021-4076 Description

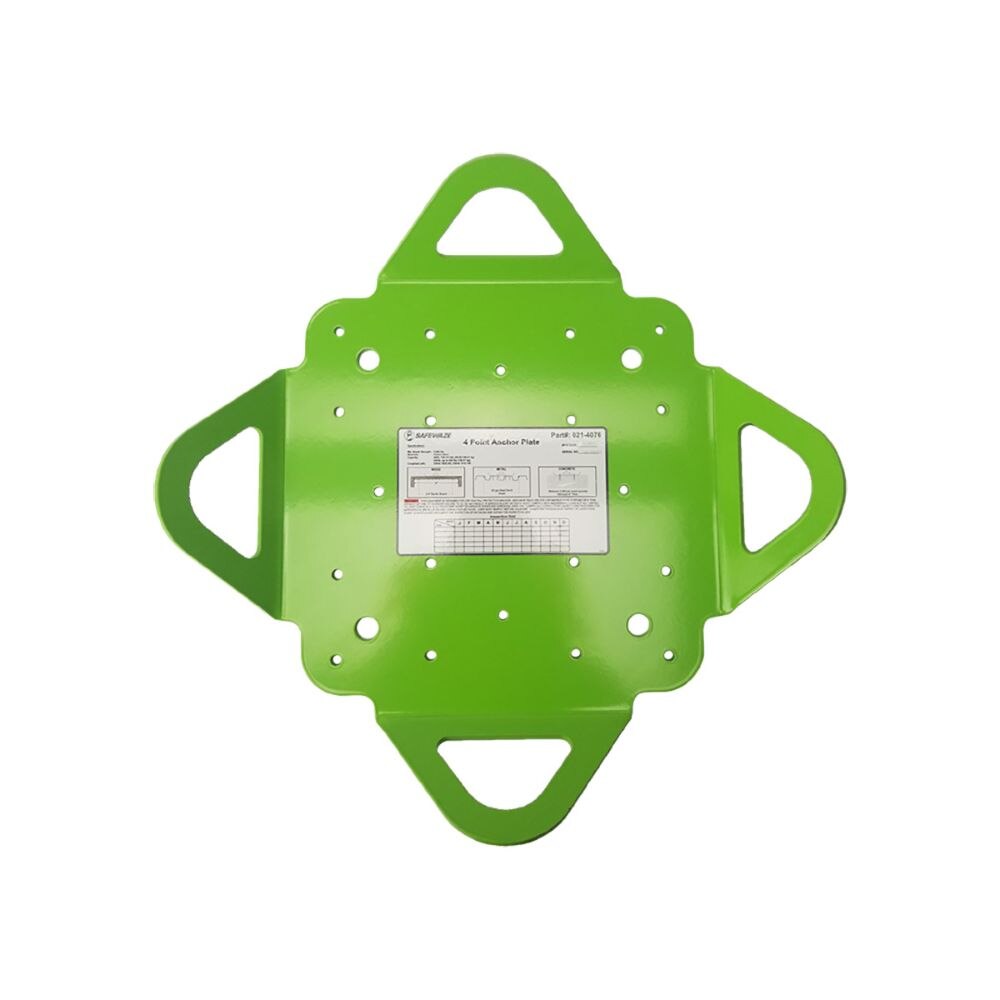

The 4-Point Plate Anchor is a versatile, temporary roofing anchor. Four different anchor points around the perimeter provide a greater working range, allowing the worker to tie off in the most convenient direction.
SafeWaze 021-4076 Includes
- (1) Plate Anchor
SafeWaze 021-4076 Features
- Increased range with 4 steel loop connection points
- Versatile use as single anchor point or with HLL system
- Easy to install
- Reusable, temporary anchor
- For use on wood, steel and concrete
- Fasteners not included
SafeWaze 021-4076 Specifications
| Materials | Painted Steel |
| Dimensions | 11" x 11" x .38" |
| ANSI Weight Capacity | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs. (191 kg) |
| Breaking Strength | 5,000 lbs. Minimum |
| ANSI Standards | Z359.1, A10.32 |
| OSHA Standards | 1926.502, 1910.66 |
Toolup Part # :
697725
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
