SafeWaze 022-11034 Description

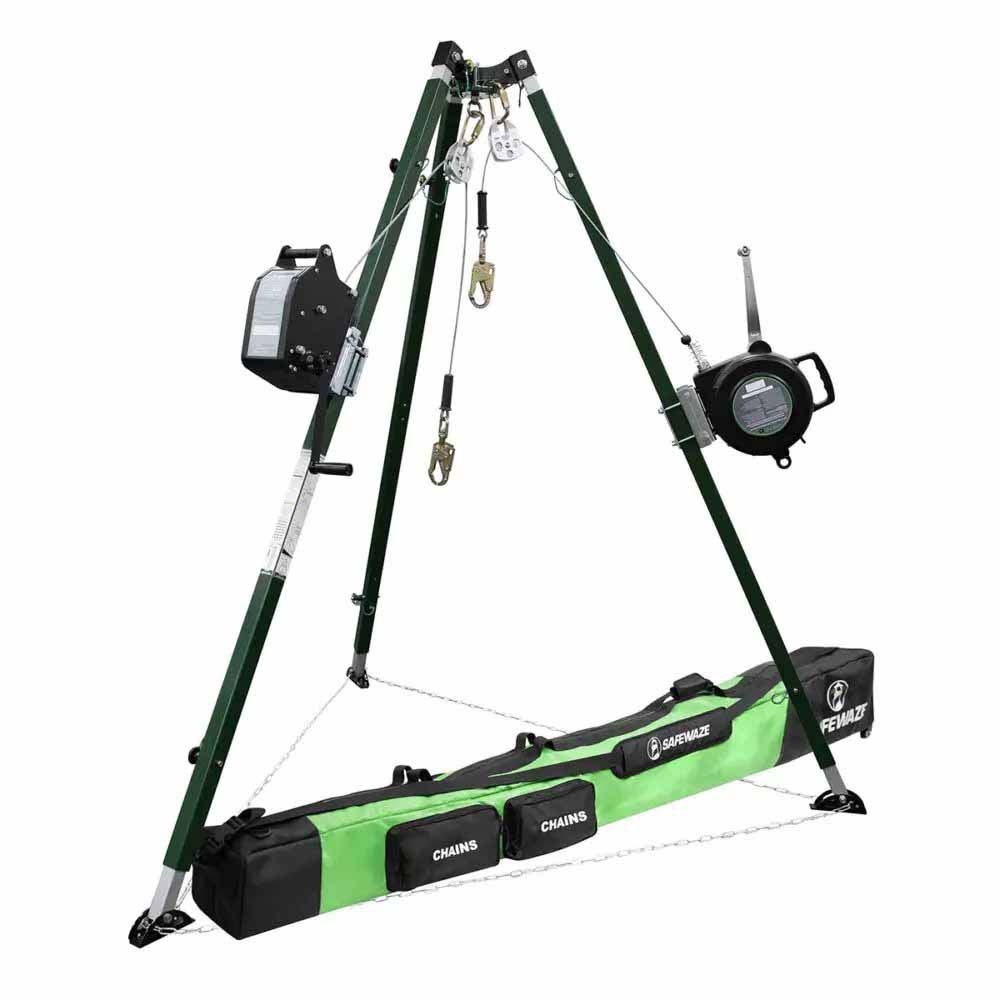

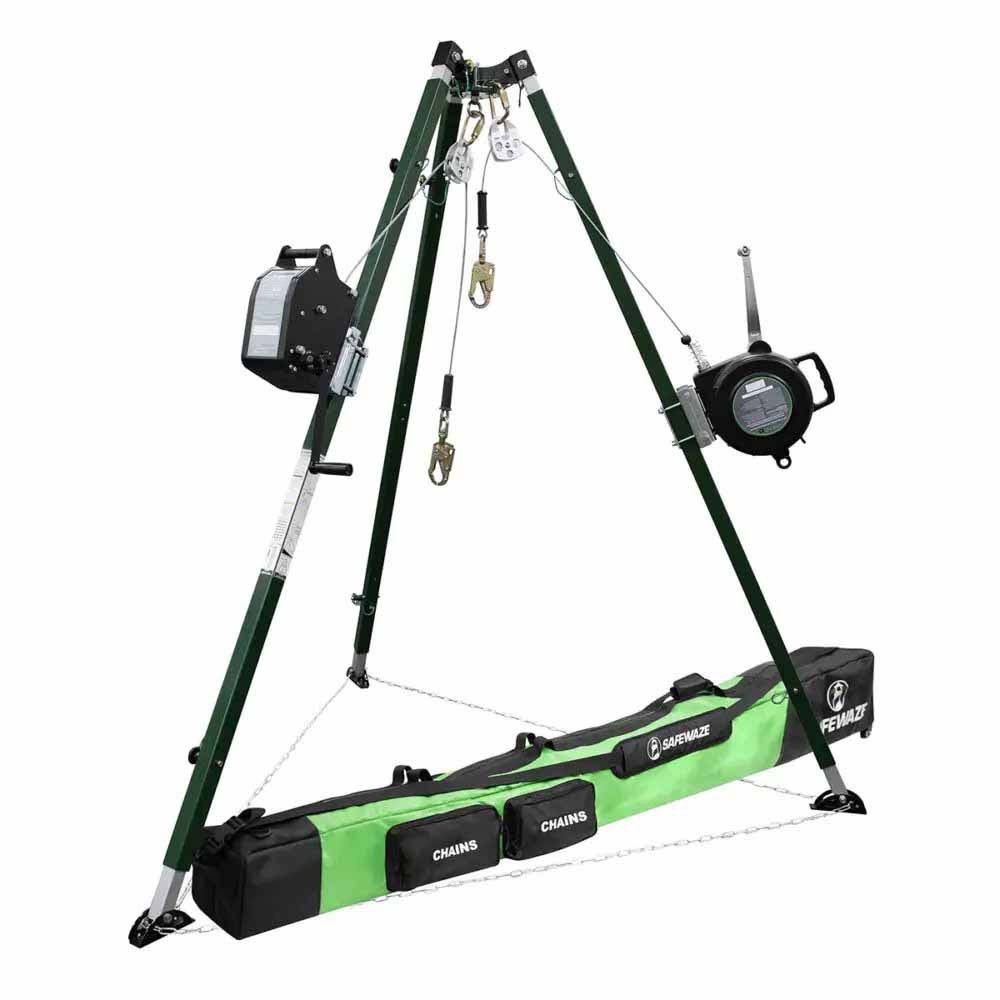

Premium confined space tripod kit with adjustable stance up to 18 ft, designed for rescue, access, and over-edge scenarios. Lightweight yet durable with quick setup and integrated anchor points, it includes a 65 ft personnel winch and a 65 ft 3-way fall protection device for raising, lowering, and retrieval.
SafeWaze 022-11034 Includes

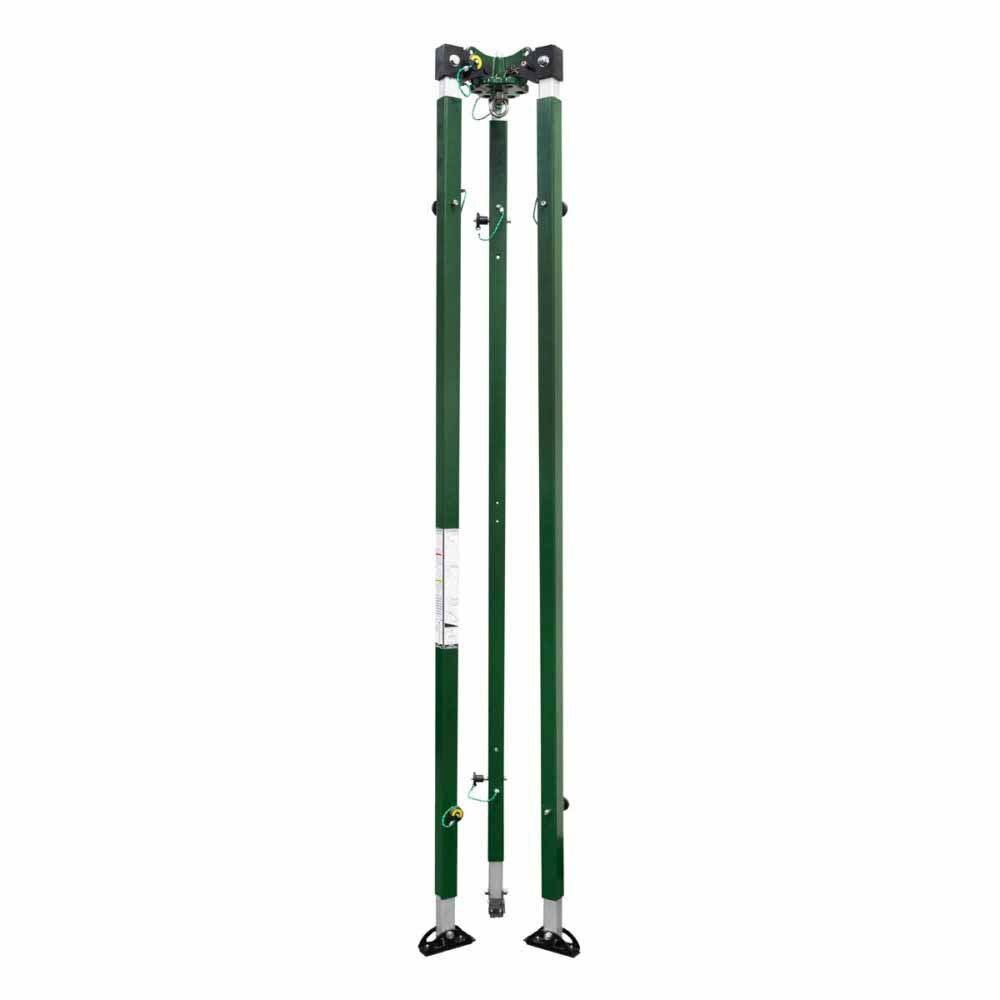

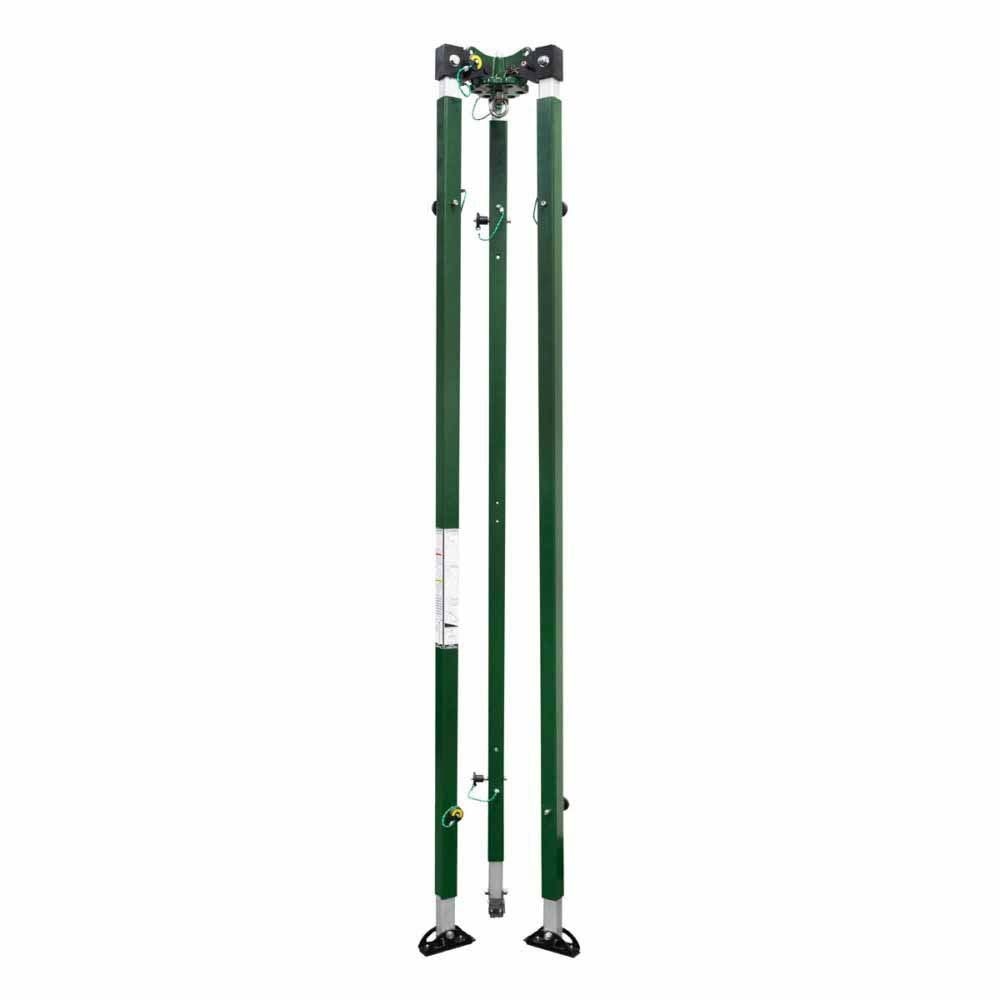

- (1) 10 ft Tech Tripod
- (1) 65 ft 3-Way system for fall protection

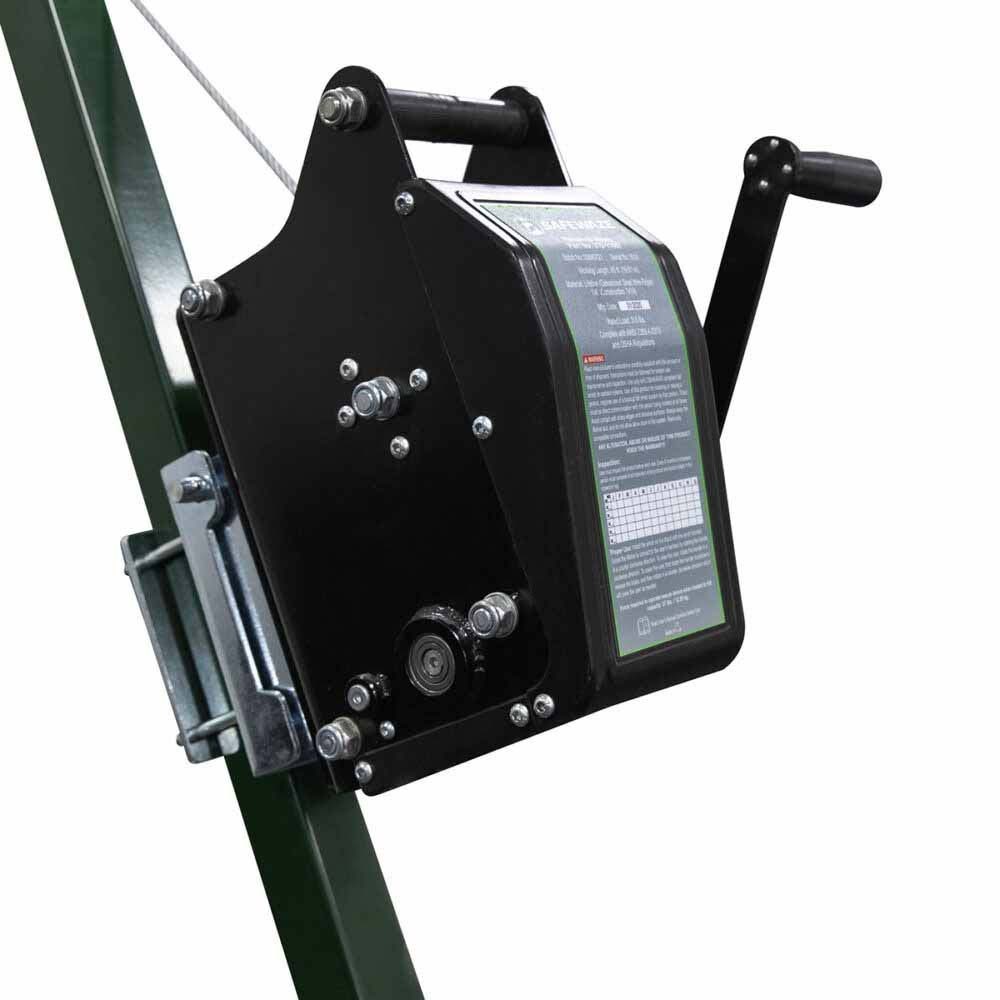

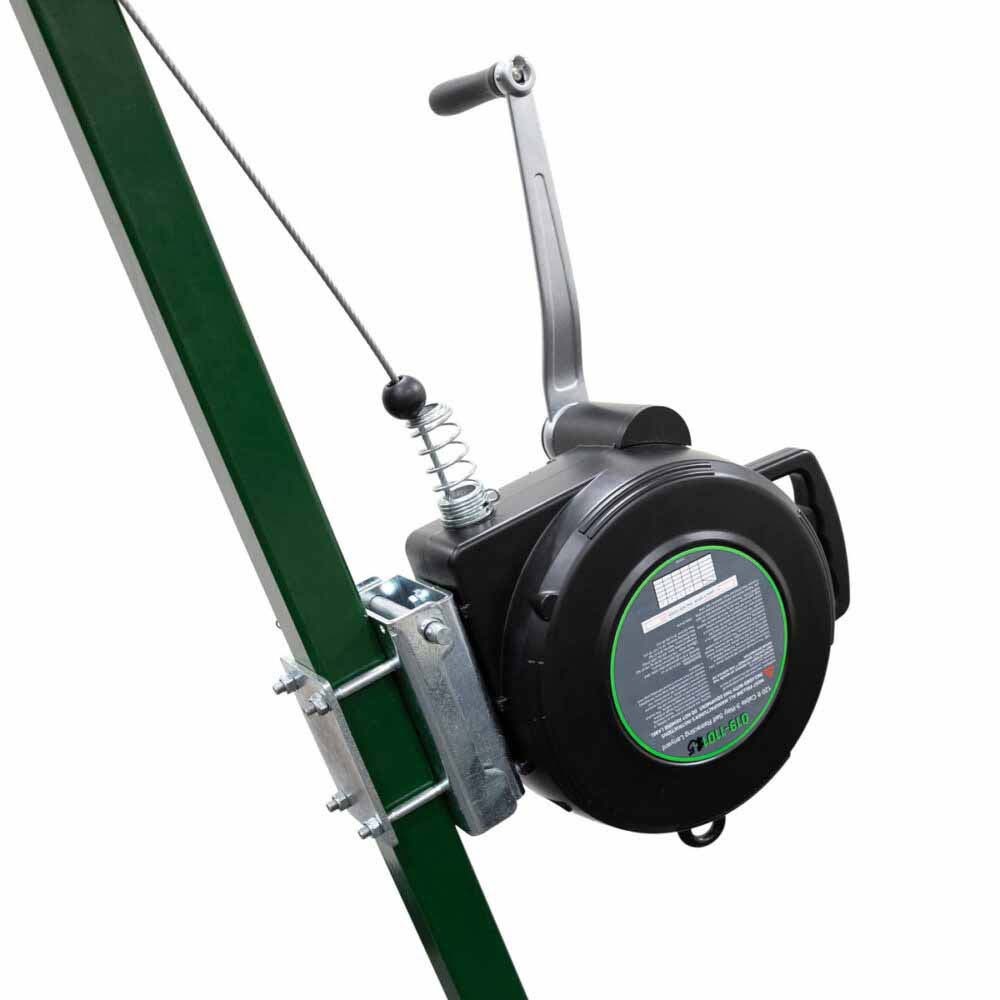

- (1) 65 ft Personnel winch

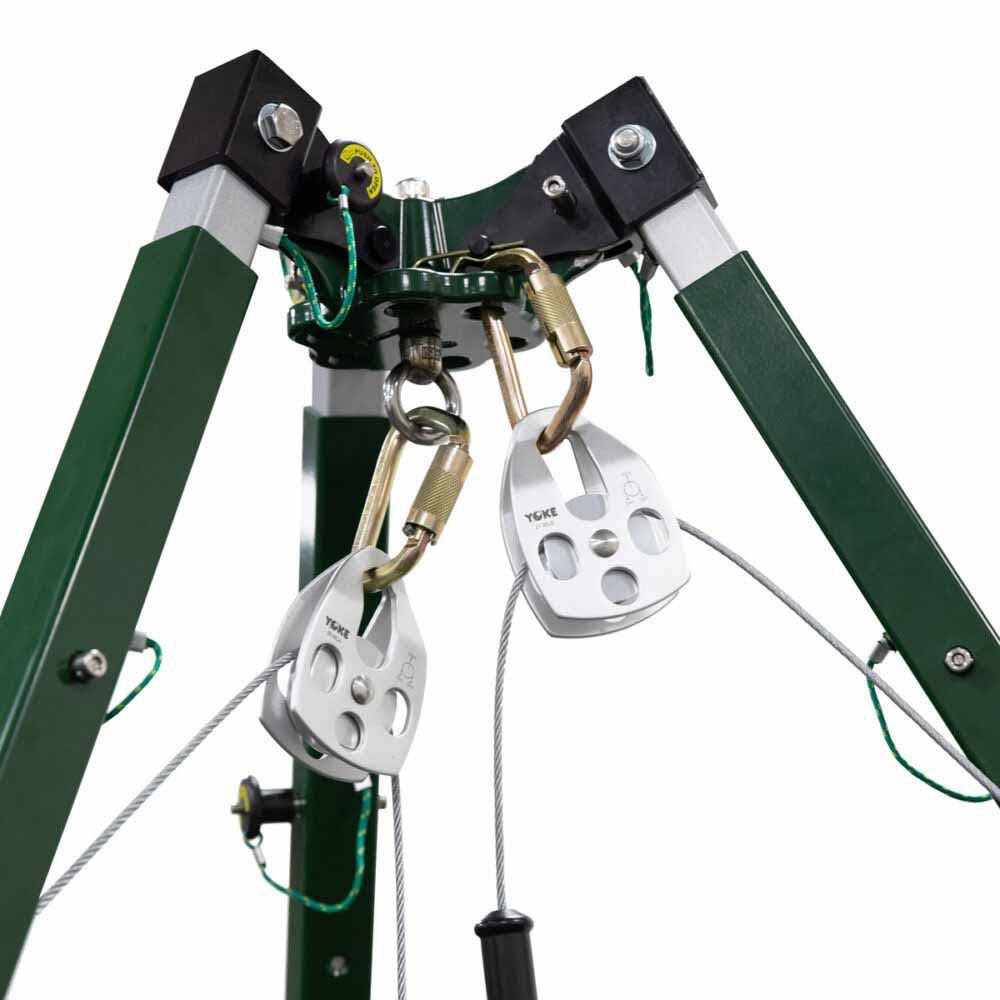

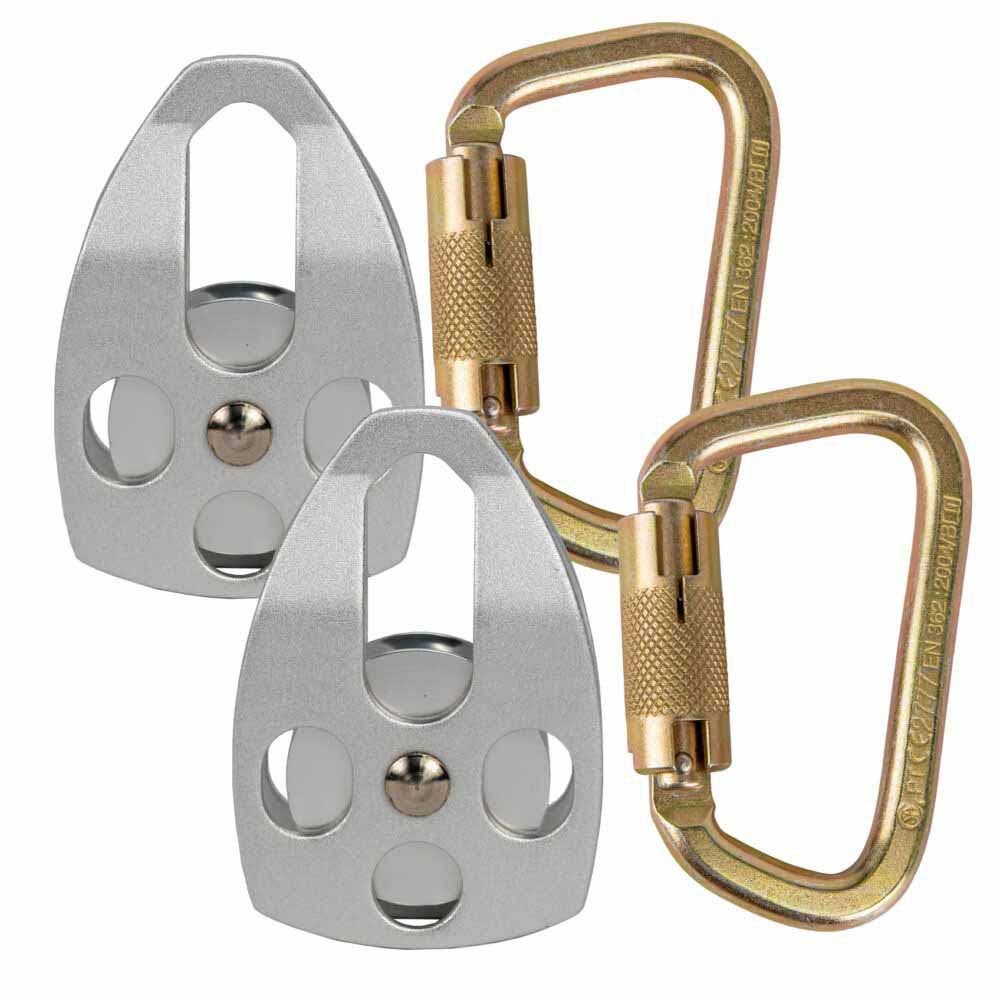

- (2) Aluminum pulleys
- (2) Steel carabiners

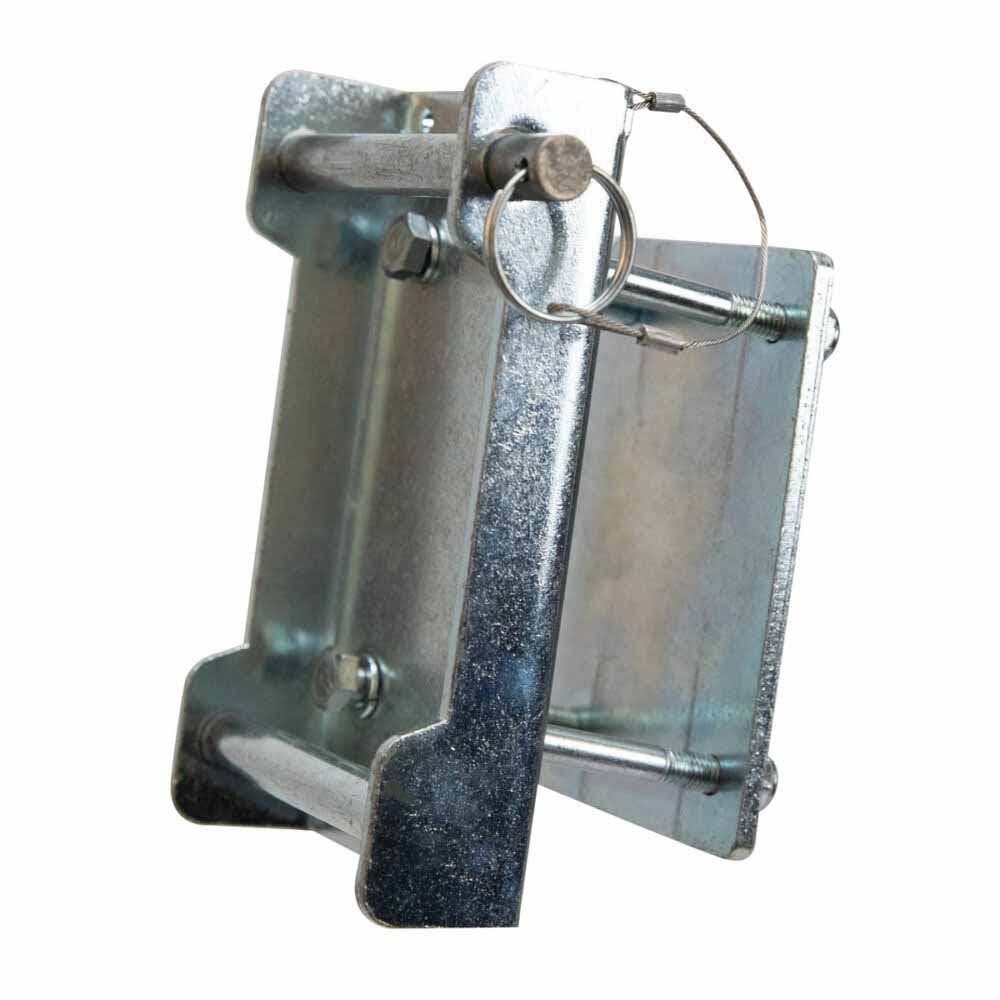

- (2) Universal mounting brackets
- (1) Safety chain with quick link
- (1) Heavy-duty wheeled storage bag
SafeWaze 022-11034 Features
- Lightweight, durable aluminum construction

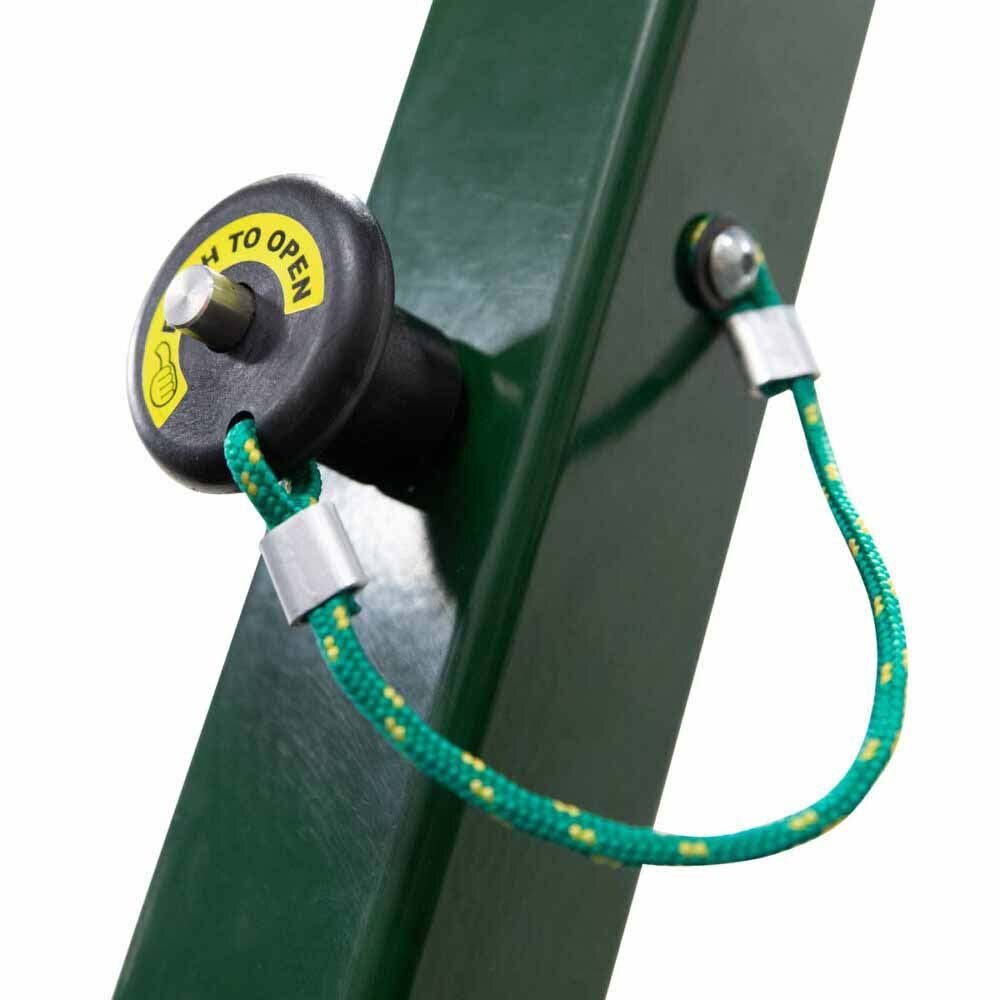

- Quick setup with detent pins for easy height and diameter adjustment
- Multiple stance configurations, including over-edge use
- Seven 5,000 lb anchor points with centered 360 Degree captive eye

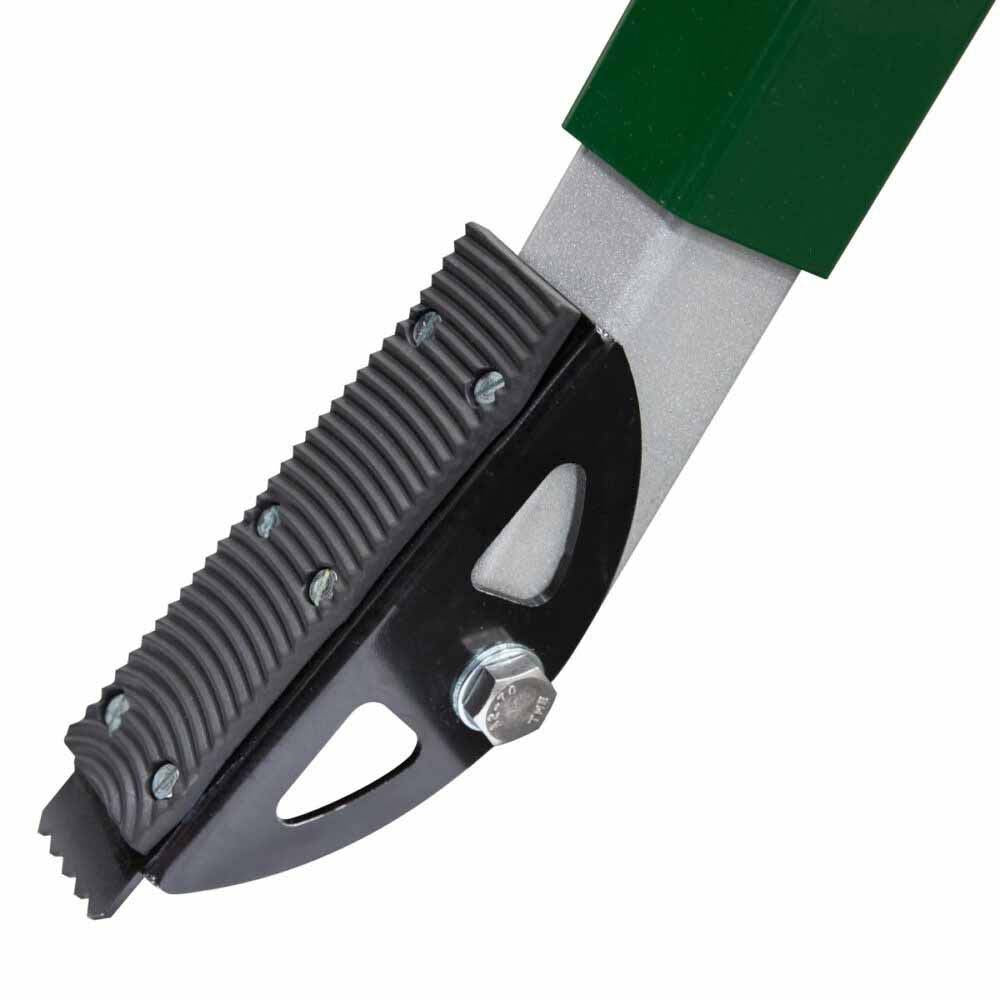

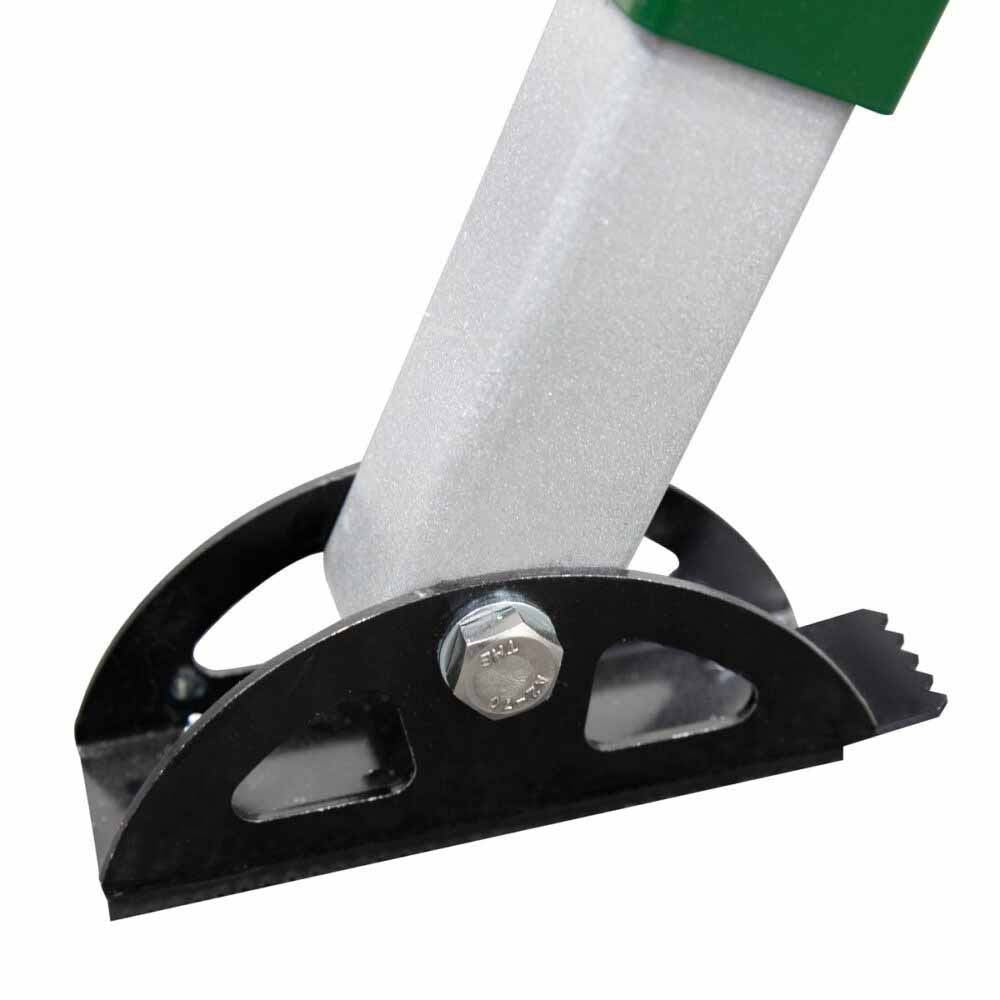

- Rubber pads on multi-surface steel feet for secure footing
- ANSI weight capacity 130–310 lb; OSHA capacity up to 420 lb
- Maximum material capacity 620 lb
SafeWaze 022-11034 Specifications
| Working Height | Tallest stance 119 in (302.3 cm), Shortest stance 53.5 in (135.9 cm) |
| Working Diameter | Narrowest stance 86.6 in (219.9 cm), Widest stance 218 in (553.7 cm) |
| Packed Length | 97.2 in (247 cm) |
| Packed Width | 12 in (30.5 cm) |
| Weight | 137.2 lb (62.2 kg) |
| Tripod Attachment Points | 1 captive eye, 6 anchor points on head |
| Minimum Breaking Strength | 5,000 lb |
| ANSI Weight Capacity | 130–310 lb (59–141 kg) |
| OSHA Weight Capacity | Up to 420 lb (190 kg) |
| Maximum Material Capacity | 620 lb (281 kg) |
| ANSI Standards | Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022, Z359.14-2021 |
| OSHA Standards | 1910.140, 1926.502 |
| Materials | Aluminum tripod and head unit; powder coated and plated steel components; stainless steel captive eye; galvanized steel cable; rubber foot pads and handles; nylon/stainless detent pins; aluminum pulleys; plated steel carabiners and brackets |
Toolup Part # :
777655
